SELECT A DIAGRAM

01 - Cabinet Parts

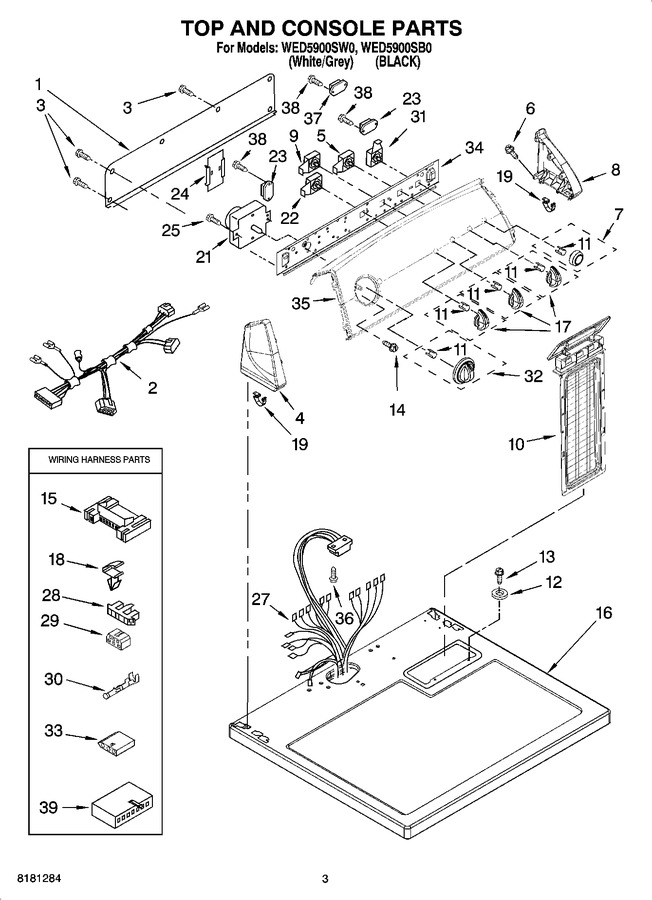

02 - Top And Console Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
2	8283135		Harness, Console		Appelez-nous	-
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
4	WP8565957		Cap, End (l.h.) (white)   (Replaces: 8566035)				$ 64.76
4	8566037		Cap, End (l.h.) (black)		Appelez-nous	-
5	3405151		Switch, Signal				$ 193.40
6	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
7	W10034770		Knob, Push-to-start (silver)		Appelez-nous	-
8	WP8565954		Cap, End (r.h.) (white)   (Replaces: 8566032)				$ 65.84
8	8566034		Cap, End (r.h.) (black)		Appelez-nous	-
9	3405152		Switch, Wrinkle Shield				$ 131.07
10	8557859		Screen, Lint (black)				$ 92.03
10	W11778253		Screen, Lint (white)   (Replaces: 8557857)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	237446		Washer (top/chute)		Appelez-nous	-
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
15	3395683		Connector (motor)			Immediately	$ 54.45
16	W10028890		Top (black)		Appelez-nous	-
16	W10028870		Top (white)		Appelez-nous	-
17	W10034380		Knob, Control (3) (silver)				$ 25.06
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
19	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.59
21	WP8299771		Timer, 60 Hz.   (Replaces: 8299771)				$ 347.87
22	8299970		Switch, Temperature				$ 193.95
23	WP3405281		Power Relay (2)   (Replaces: 3405281)			Immediately	$ 54.85
24	3976623		Control Board		Appelez-nous	-
25	WP90767		Screw, Mounting (8-18 X 5/16)   (Replaces: 8533971)			Immediately	$ 8.25
27	8299897		Harness, Wiring		Appelez-nous	-
28	3397269		Connector, Timer				$ 25.55
29	3347243		Connector 6-circuit		Appelez-nous	-
30	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
31	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
32	W10034750		Timer Knob Assembly (silver)				$ 28.27
33	3936144		Connector				$ 21.22
34	8566052		Bracket, Control		Appelez-nous	-
35	8566077		Panel, Control (includes Illus. 20) (silver)		Appelez-nous	-
36	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
37	WP8566493		Heat Relay   (Replaces: 8566493)				$ 94.87
38	WP3388228		Screw, 6-20 X 3/8   (Replaces: 3388228)				$ 7.30
39	3936150		Connector, 7-circuit				$ 77.60

    View Diagram in Separate Window       Print Part List
