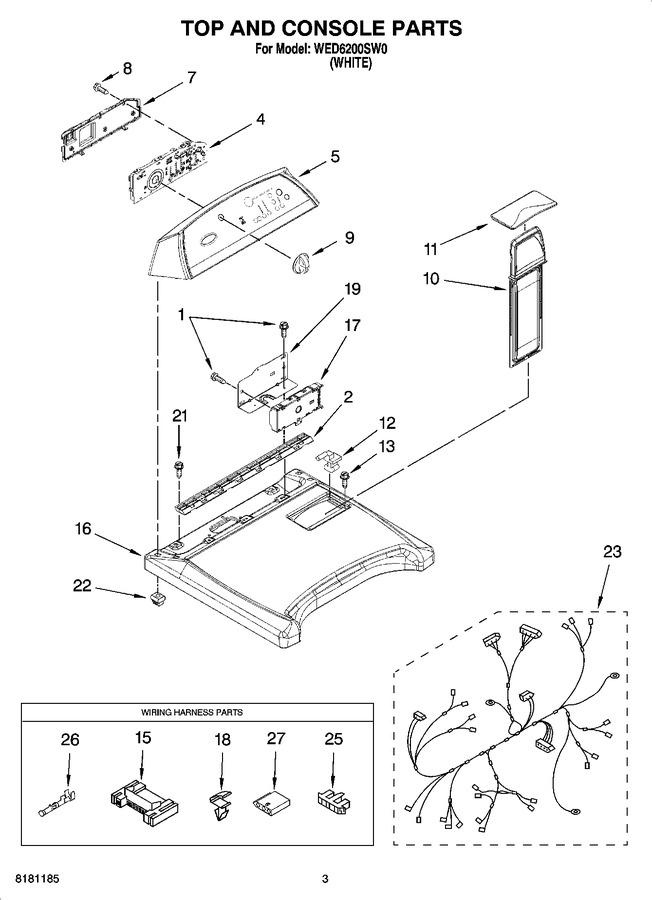

01 - Cabinet Parts


02 - Top And Console Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP90767		Screw   (Replaces: W10106830)			Immediately	$ 8.25
2	8558863		Bracket, Console				$ 33.78
4	8563976		User Interface				$ 275.47
5	W10110326		Panel, Console				$ 254.08
7	8564265		Cover, Rear				$ 142.60
8	WP4449745		Screw, 6-19 X 3/64   (Replaces: W10003770)				$ 7.98
9	8574957		Knob, Assembly				$ 26.10
10	WP8572270		Assembly, Lint Screen   (Replaces: 8572270)			Immediately	$ 104.35
11	W10044320		Cover, Lint Screen		Appelez-nous	-
12	WPW10044480		Hinge, L.h.   (Replaces: W10044480)				$ 8.11
12	WPW10044470		Hinge, R.h.   (Replaces: W10044470)				$ 8.11
13	W10001580		Screw, 8-18 X 5/8		Appelez-nous	-
15	3395683		Connector (motor)			Immediately	$ 54.45
16	8565021		Top				$ 142.79
17	W10074280		Control, Electronic		Appelez-nous	-
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
19	8563853		Bracket, Machine Controller		Appelez-nous	-
21	WP33001882		Screw   (Replaces: 337686)				$ 83.71
22	8558853		Grommet		Appelez-nous	-
23	8299915		Harness Wiring		Appelez-nous	-
25	3936144		Connector				$ 21.22
26	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
27	3397269		Connector, Timer				$ 25.55
