01 - Top And Console Parts
02 - Cabinet Parts

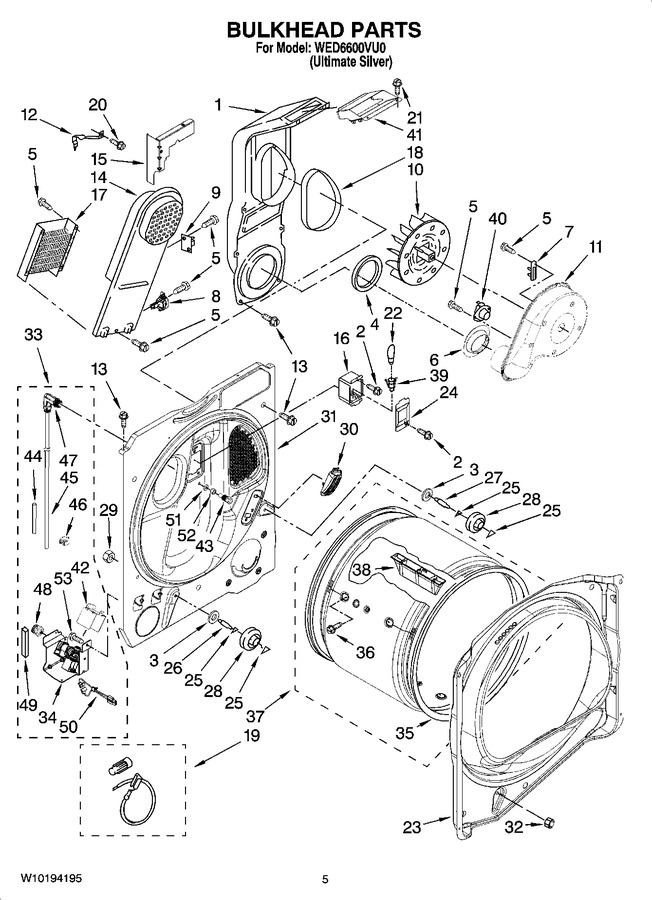

03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8544805 | Lint Chute Assembly |
|
$ 121.83 | |||||
| 2 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 3 | W11236646 | Washer, Support (Replaces: 3387459) |
|
Immediately | $ 14.73 | ||||
| 4 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 19.14 | ||||
| 5 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 6 | 8573836 | Shield, Exhaust |
|
$ 39.35 | |||||
| 7 | WP3392519 | Thermal Fuse (91`c) (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 8 | WP8577891 | Thermostat, Hi-limit (Replaces: 8577891) |
|
$ 117.20 | |||||
| 9 | W10169881 | Thermal Cut-off (includes Item. 8) |
|
$ 156.40 | |||||
| 10 | WP694089 | Wheel, Blower (Replaces: 694089) |
|
Immediately | $ 37.66 | ||||
| 11 | WP8577230 | Housing, Blower (Replaces: 8577230) |
|
$ 186.85 | |||||
| 12 | 8546149 | Clip-heater Box |
|
- | |||||
| 13 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 14 | 8544801 | Box, Heater |
|
$ 113.75 | |||||
| 15 | W10053480 | Bracket, Lint Chute |
|
- | |||||
| 16 | 3977373 | Bracket, Drum Light |
|
$ 111.08 | |||||
| 17 | 279838 | Element, Heater (Replaces: 3403585) |
|
Immediately | $ 94.41 | ||||
| 18 | 8544813 | Seal |
|
$ 82.48 | |||||
| 19 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 20 | WP489463 | Screw, 8-18 X 5/8 (Replaces: 489463) |
|
$ 8.25 | |||||
| 21 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 22 | WP22002263 | Light Bulb (Replaces: 3406124) |
|
Immediately | $ 14.85 | ||||
| 23 | 8558890 | Bulkhead, Front |
|
- | |||||
| 24 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 32.64 | |||||
| 25 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 9.68 | ||||
| 26 | WPW10359272 | Shaft, (l.h.) (Replaces: 8575325) |
|
Immediately | $ 58.48 | ||||
| 27 | WPW10359271 | Shaft, (r.h.) (Replaces: 8575324) |
|
Immediately | $ 62.21 | ||||
| 28 | WPW10314173 | Roller, Support (Replaces: 8536973) |
|
Immediately | $ 28.50 | ||||
| 29 | WPW10080190 | Nut, 3/8-16 (Replaces: W10001120) |
|
Immediately | $ 10.01 | ||||
| 30 | 8576468 | Assembly, Sensor |
|
$ 41.52 | |||||
| 31 | W10131528 | Bulkhead, Rear |
|
$ 36.00 | |||||
| 32 | W11812294 | Nut-3/8 X 16 (r.h.) (Replaces: 3934666) |
|
$ 12.77 | |||||
| 33 | W10153129 | Valve & Hose Assembly Complete |
|
$ 152.34 | |||||
| 34 | W10146150 | Valve & Bracket Assembly |
|
$ 186.81 | |||||
| 35 | 280140 | Seal Drum (2) (Replaces: 8557277) |
|
Immediately | $ 85.78 | ||||
| 36 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: W10109200) |
|
Immediately | $ 8.80 | ||||
| 37 | W10549615 | Drum, Assembly (Replaces: 8557270) |
|
$ 444.51 | |||||
| 38 | 8565688 | Baffle, Drum (2) |
|
$ 166.20 | |||||
| 39 | W11222979 | Socket, Assembly (Replaces: W10168632) |
|
Immediately | $ 118.79 | ||||
| 40 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 41 | 8544810 | Collar, Lint Chute |
|
$ 36.27 | |||||
| 42 | W10160575 | Cover, Myst Valve |
|
- | |||||
| 43 | W10044629 | Nozzle & Screen Assembly |
|
$ 154.07 | |||||
| 44 | W10153865 | Sleeve, Tube |
|
- | |||||
| 45 | W10131527 | Hose, Assembly (not Servicable) |
|
- | |||||
| 46 | W10044599 | Clip, Push-to-connect (Replaces: W10044615) |
|
$ 15.00 | |||||
| 47 | W10153864 | Nozzle & Hose Assembly (includes Items. 45,43,51 & 52) |
|
- | |||||
| 48 | W10859554 | Coupling, Hose (Replaces: W10044605) |
|
$ 86.06 | |||||
| 49 | W10158778 | Foam, Myst Bracket |
|
- | |||||
| 50 | W10160610 | Harness, Valve |
|
$ 7.26 | |||||
| 51 | W10044579 | Washer, Nozzle |
|
$ 9.22 | |||||
| 52 | W10044628 | Nut, Brass 9/16 - 24 X 1/2 |
|
$ 97.27 | |||||
| 53 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4392065 | Kit, Dryer Repair (Replaces: 279948) |
|
Immediately | $ 66.68 | |||||
| 49586 | Connector, Y Hose (Replaces: W10044604) |
|
$ 15.48 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 49611 | Kit, Side Venting |
|
$ 136.05 | ||||||
| 8544761A | Tube Extension (Replaces: 8544761) |
|
$ 26.61 | ||||||
| W11224254 | Kit, Dryer Vent Testing (Replaces: 8522199) |
|
$ 12.34 | ||||||
| W10071550 | Dry Rack |
|
- | ||||||
| WP16123 | Washer (Replaces: 3976300) |
|
$ 8.16 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| W10044603 | Hose Inlet 1` Hose |
|
$ 24.90 | ||||||
| WP76314 | Hose, Inlet 6 Ft. Hose With Elbow (Replaces: 76314) |
|
$ 45.26 | ||||||
| W10044609A | Bag Assembly (contains The Following) (Replaces: W10044609) |
|
Immediately | $ 22.46 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- |
