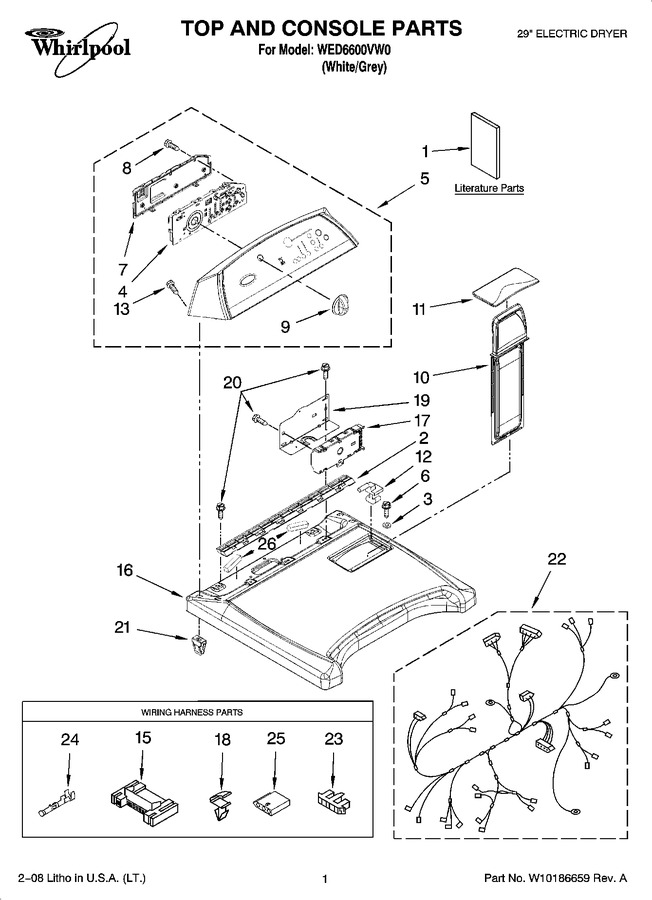

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
1	W10156037		Tech Sheet		Appelez-nous	-
1	W10164159		Guide, Use & Care		Appelez-nous	-
1	W10150650		Guide, Quick Start		Appelez-nous	-
1	W10139322		Tip Sheet		Appelez-nous	-
1	W10134980		Installation, Diagnostic Guide		Appelez-nous	-
1	W10166435		Performance Tip Sheet		Appelez-nous	-
2	8558863		Bracket, Console				$ 33.78
3	237446		Washer (top/chute)		Appelez-nous	-
4	W10051165		Assembly, User Interface				$ 176.73
5	W10146153		Panel, Console				$ 338.39
6	WP3196557		Screw, 8-18 X 5/8   (Replaces: 3196537)			Immediately	$ 7.95
7	8564265		Cover, Rear				$ 142.60
8	WP4449745		Screw, 6-19 X 3/64   (Replaces: W10003770)				$ 7.98
9	8574957		Knob, Assembly				$ 26.10
10	WP8572270		Assembly, Lint Screen   (Replaces: 8572270)			Immediately	$ 104.35
11	W10168227		Cover, Lint Screen				$ 68.71
12	WPW10044480		Hinge, L.h.   (Replaces: W10044480)				$ 8.11
12	WPW10044470		Hinge, R.h.   (Replaces: W10044470)				$ 8.11
13	W10131402		Screw		Appelez-nous	-
15	3395683		Connector (motor)			Immediately	$ 54.45
16	W10167866		Top				$ 44.49
17	W10111616		Control, Electronic				$ 286.74
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
19	8563853		Bracket, Machine Controller		Appelez-nous	-
20	WP33001882		Screw, 8-18 X 7/16   (Replaces: 337686)				$ 83.71
21	W10112673		Clip, Console				$ 9.75
22	W10141980		Harness Wiring		Appelez-nous	-
23	3936144		Connector				$ 21.22
24	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
25	3397269		Connector, Timer				$ 25.55
26	W10183819		Seal, Foam Console   (Replaces: W10177487)		Appelez-nous	-
