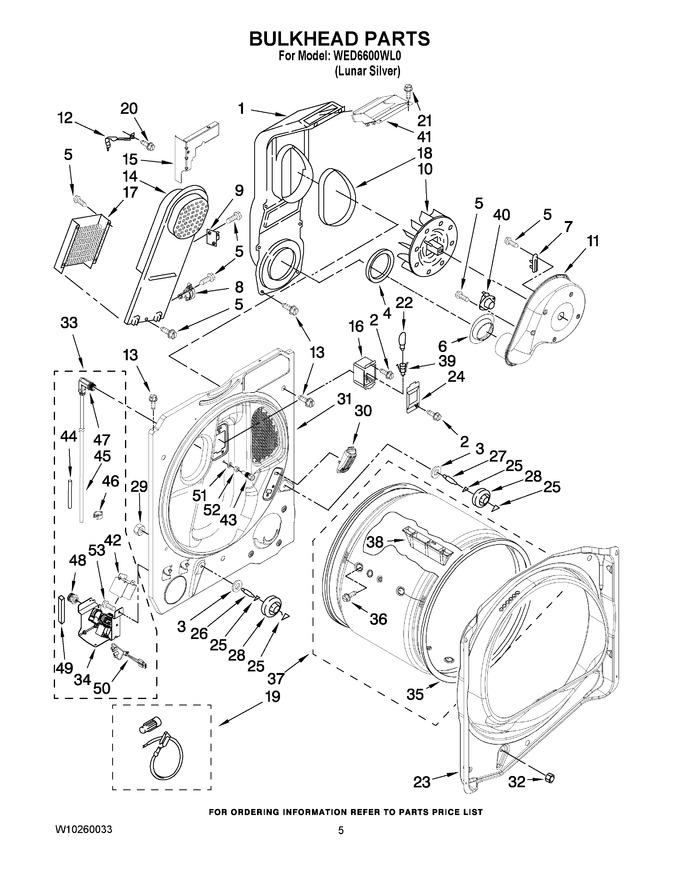

03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8544805		Lint Chute Assembly				$ 121.83
2	WP488729		Screw, 8-15 X 1/2   (Replaces: 487909)			Immediately	$ 7.45
3	W11236646		Washer, Support   (Replaces: 3387459)			Immediately	$ 13.26
4	W11415783		Seal, Lint Chute   (Replaces: 347139)			Immediately	$ 17.23
5	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.43
6	8573836		Shield, Exhaust				$ 39.35
7	WP3392519		Thermal Fuse (91`c)   (Replaces: 3392519)			Immediately	$ 22.46
8	WP8577891		Thermostat, Hi-limit   (Replaces: 8577891)				$ 105.48
9	279816		Thermal Cut-off (includes Item. 8 )   (Replaces: 3977393)			Immediately	$ 54.64
10	WP694089		Wheel, Blower   (Replaces: 694089)			Immediately	$ 33.89
11	WP8577230		Housing, Blower   (Replaces: 8577230)				$ 168.17
12	8546149		Clip-heater Box		Appelez-nous	-
13	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.62
14	8544801		Box, Heater				$ 113.75
15	W10053480		Bracket, Lint Chute		Appelez-nous	-
16	3977373		Bracket, Drum Light				$ 99.97
17	279838		Element, Heater   (Replaces: 3403585)			Immediately	$ 84.97
18	8544813		Seal				$ 82.48
19	279457		Wire Kit, Terminal (for Heater Element Wiring Harness Repair)			Immediately	$ 7.13
20	WP489463		Screw, 8-18 X 5/8   (Replaces: 489463)				$ 7.43
21	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
22	WP22002263		Bulb   (Replaces: 3406124)			Immediately	$ 13.37
23	8558890		Bulkhead, Front		Appelez-nous	-
24	W11226088		Lens, Drum Light   (Replaces: 3402841)				$ 29.38
25	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 8.71
26	WPW10359272		Shaft, (l.h.)   (Replaces: 8575325)			Immediately	$ 52.63
27	WPW10359271		Shaft, (r.h.)   (Replaces: 8575324)			Immediately	$ 55.99
28	WPW10314173		Roller, Support   (Replaces: 8536973)			Immediately	$ 25.65
29	WPW10080190		Nut, 3/8-16   (Replaces: W10001120)			Immediately	$ 9.01
30	8576468		Assembly, Sensor				$ 41.52
31	W10131528		Bulkhead, Rear				$ 36.00
32	W11812294		Nut, 3/8-16 (r.h.)   (Replaces: 3934666)				$ 11.49
33	W10153129		Valve & Hose Assembly Complete				$ 152.34
34	W10146150		Valve & Bracket Assembly				$ 186.81
35	280140		Seal Drum (2)   (Replaces: W10116344)			Immediately	$ 77.20
36	W10853898		Screw, 8-16 X 1/2   (Replaces: W10219342)			Immediately	$ 7.36
37	W10549615		Drum, Assembly   (Replaces: 8557270)				$ 400.06
38	8565688		Baffle, Drum (2)				$ 149.58
39	W11222979		Socket, Assembly   (Replaces: W10168632)			Immediately	$ 106.91
40	WP8577274		Thermistor   (Replaces: 8577274)			Immediately	$ 39.25
41	8544810		Collar, Lint Chute				$ 36.27
42	W10160575		Cover, Myst Valve		Appelez-nous	-
43	W10044629		Nozzle & Screen Assembly				$ 154.07
44	W10153865		Sleeve, Tube		Appelez-nous	-
45	W10131527		Hose, Assembly (not Servicable)		Appelez-nous	-
46	W10044599		Clip, Push-to-connect   (Replaces: W10044615)				$ 13.50
47	W10153864		Nozzle & Hose Assembly (includes Items. 45,43,51 & 52)		Appelez-nous	-
48	W10859554		Coupling, Hose   (Replaces: W10044605)				$ 77.45
49	W10158778		Foam, Myst Bracket		Appelez-nous	-
50	W10160610		Harness, Valve				$ 7.26
51	W10044579		Washer, Nozzle				$ 8.30
52	W10044628		Nut, Brass 9/16 - 24 X 1/2				$ 87.54
53	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 6.80
