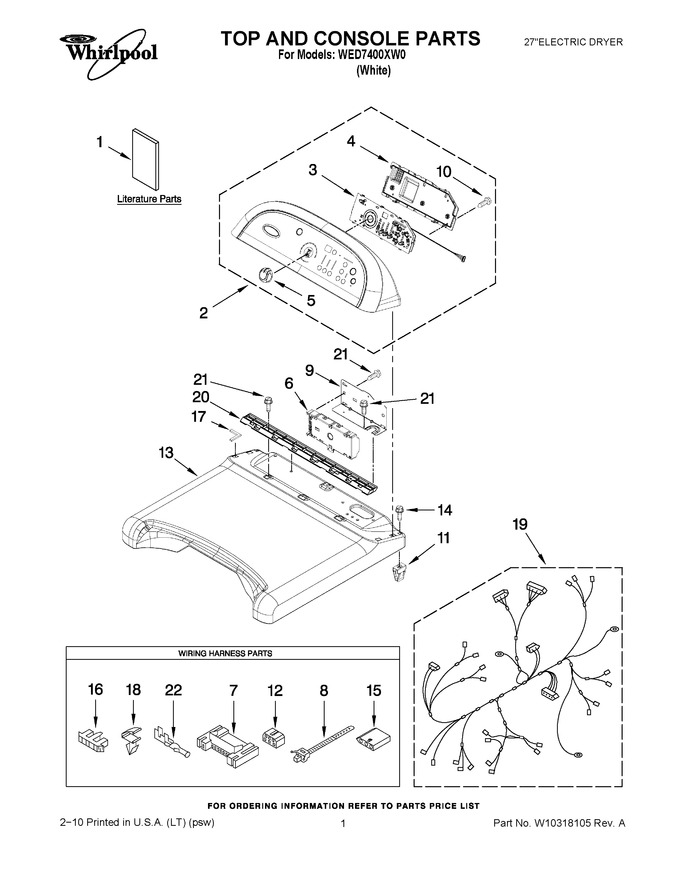

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10305227		Guide, Use & Care		Appelez-nous	-
1	W10267633		Installation, Instruction		Appelez-nous	-
1	W10301482		Tech Sheet		Appelez-nous	-
2	W10298647		Panel, Console				$ 294.32
3	WPW10298627		User Interface   (Replaces: W10298627)				$ 294.79
4	8564265		Cover, Rear (ui Assembly)				$ 142.60
5	WPW10211335		Knob, Assembly   (Replaces: W10211335)				$ 59.76
6	W10294317		Control Electronic				$ 326.56
7	3395683		Connector (motor)			Immediately	$ 54.45
8	WP3391018		Tie Cable (push Mount)   (Replaces: 3391018)				$ 33.43
9	W10211337		Bracket, Machinecontroller		Appelez-nous	-
10	WP4449745		Screw   (Replaces: W10003770)				$ 7.98
11	W10112673		Clip, Console				$ 9.75
12	3347243		Connector 6-circuit		Appelez-nous	-
13	W10211339		Top		Appelez-nous	-
14	W10131402		Screw, 8-18 X 1.370		Appelez-nous	-
15	3936144		Connector				$ 21.22
16	3397269		Connector, Timer				$ 25.55
17	W10185554		Foam, Top		Appelez-nous	-
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
19	W10111058		Harness, Electric		Appelez-nous	-
20	8558863		Bracket, Console				$ 33.78
21	WP33001882		Screw, 8-18 X 1/2   (Replaces: 337686)				$ 83.71
22	WP94614		Terminal   (Replaces: 94614)				$ 8.05
