View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

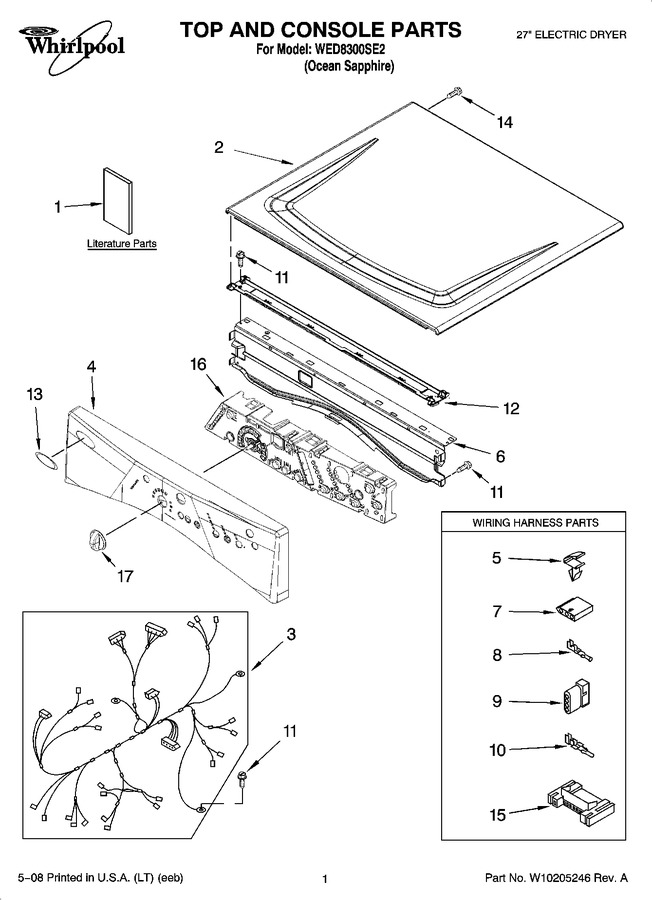

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10151580 | Use & Care Guide |
|
- | |||||
| 1 | 8572759 | Tech Sheet |
|
- | |||||
| 1 | 8578904 | Guide, Quick Start |
|
- | |||||
| 2 | W10174561 | Top |
|
$ 48.15 | |||||
| 3 | W10202231 | Harness, Main |
|
- | |||||
| 4 | W10182077 | Panel, Console |
|
$ 200.92 | |||||
| 5 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.36 | |||||
| 6 | WP8565237 | Bracket, Console (Replaces: 8565237) |
|
$ 170.79 | |||||
| 7 | 353424 | Connector, Sensor |
|
$ 18.95 | |||||
| 8 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.25 | |||||
| 9 | 3936144 | Plug, Terminal |
|
$ 19.10 | |||||
| 10 | 94613 | Terminal |
|
- | |||||
| 11 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 12 | WPW10266747 | Chanel, Water (Replaces: 8574968) |
|
$ 66.56 | |||||
| 13 | W10117943 | Badge, Assembly |
|
- | |||||
| 14 | 3400238 | Screw, 2-28 X 1/2 |
|
$ 12.03 | |||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 49.01 | ||||
| 16 | WP8571920 | Assembly, User Interface (Replaces: 8571920) |
|
$ 268.97 | |||||
| 17 | W10182079 | Knob, Assembly |
|
Immediately | $ 44.06 |
