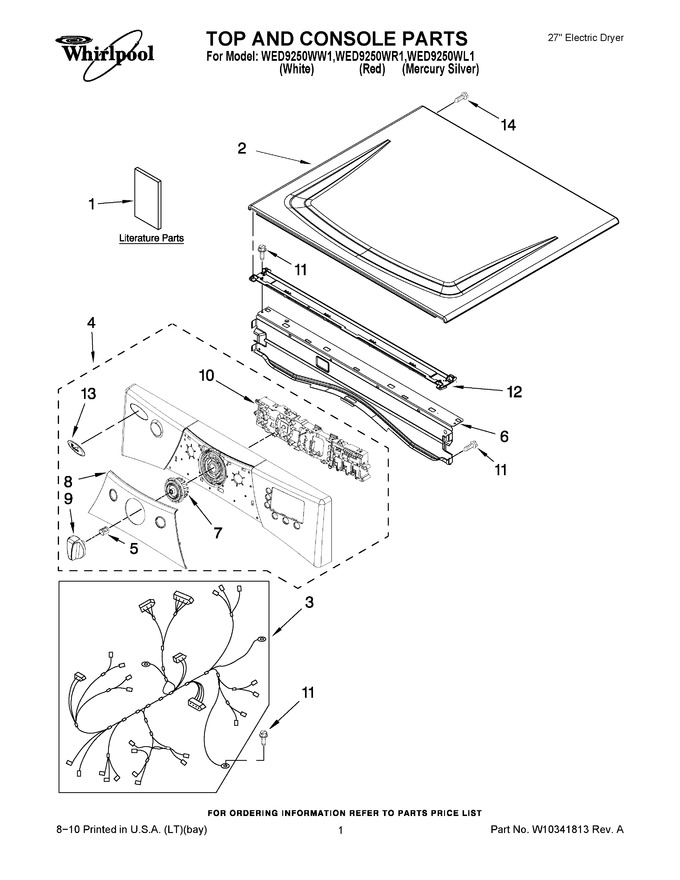

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10240579		Guide, Quick Start		Appelez-nous	-
1	W10240872		Use & Care Guide		Appelez-nous	-
1	W10238791		Tech Sheet		Appelez-nous	-
2	W10251212		Top (red)		Appelez-nous	-
2	WPW10336080		Top (white)   (Replaces: 8563730)				$ 331.99
2	WPW10336091		Top (mercury)   (Replaces: W10251213)				$ 324.93
3	W10251442		Harness, Main		Appelez-nous	-
4	W10215477		Panel, Console (includes, Item. 13 ) (white)		Appelez-nous	-
4	W10215479		Panel, Console (includes, Item. 13 ) (red)		Appelez-nous	-
4	W10215478		Panel, Console (includes, Item. 13 ) (mercury)		Appelez-nous	-
5	W10153920		Spring, Knob		Appelez-nous	-
6	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 189.77
7	W10237301		Cycle, Light Guide		Appelez-nous	-
8	W10253116		Cover, Center		Appelez-nous	-
9	WPW10215781		Knob Assembly (white)   (Replaces: W10215781)				$ 59.12
9	WPW10247262		Knob Assembly (red/mercury Models)   (Replaces: W10247262)				$ 56.36
10	WPW10215475		Assembly, User Interface   (Replaces: W10215475)				$ 242.51
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
12	WPW10266747		Chanel, Water   (Replaces: W10266747)				$ 73.96
13	W10117943		Badge, Assembly		Appelez-nous	-
14	3400238		Screw, 2-28 X 1/2				$ 12.03
