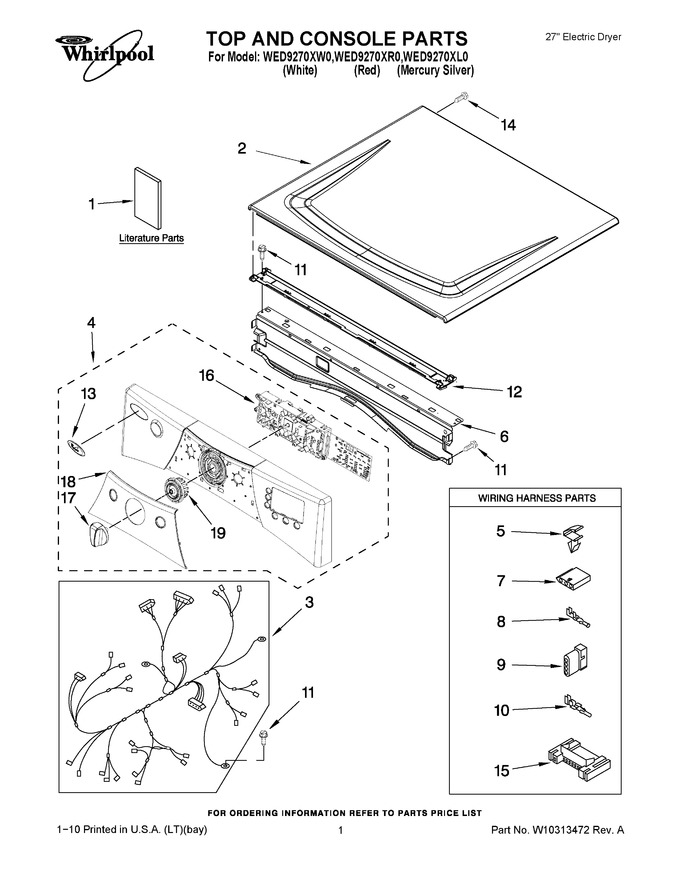

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10293937		Use & Care Guide		Appelez-nous	-
1	W10294023		Tech Sheet		Appelez-nous	-
1	W10240579		Guide, Quick Start		Appelez-nous	-
2	WPW10336080		Top (white)   (Replaces: 8563730)				$ 331.99
2	WPW10336091		Top (mercury)   (Replaces: W10251213)				$ 324.93
2	W10251212		Top (red)		Appelez-nous	-
3	W10278759		Harness, Main		Appelez-nous	-
4	W10215464		Panel, Console (include Items, 13,16,18 & 19) (mercury)		Appelez-nous	-
4	WPW10215463		Panel, Console (include Items, 13,16,18 & 19) (red)   (Replaces: W10215463)				$ 358.85
4	W10215462		Panel, Console (include Items, 13,16,18 & 19) (white)		Appelez-nous	-
5	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
6	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 189.77
7	353424		Connector, Sensor				$ 18.95
8	WP94614		Terminal   (Replaces: 94614)				$ 8.05
9	3936144		Plug, Terminal				$ 21.22
10	94613		Terminal		Appelez-nous	-
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
12	WPW10266747		Chanel, Water   (Replaces: W10266747)				$ 73.96
13	W10117943		Badge, Assembly		Appelez-nous	-
14	3400238		Screw, 2-28 X 1/2				$ 12.03
15	3395683		Connector (motor)			Immediately	$ 54.45
16	W10215460		Assembly, User Interface		Appelez-nous	-
17	WPW10247262		Assembly, Knob (red / Mercury Models)   (Replaces: W10247262)				$ 56.36
17	WPW10215781		Assembly, Knob (white)   (Replaces: W10215781)				$ 59.12
18	W10215468		Cover, Center (mercury)		Appelez-nous	-
18	W10215470		Cover, Center (white)		Appelez-nous	-
18	W10215469		Cover, Center (red)		Appelez-nous	-
19	W10237301		Cycle, Light Guide		Appelez-nous	-
