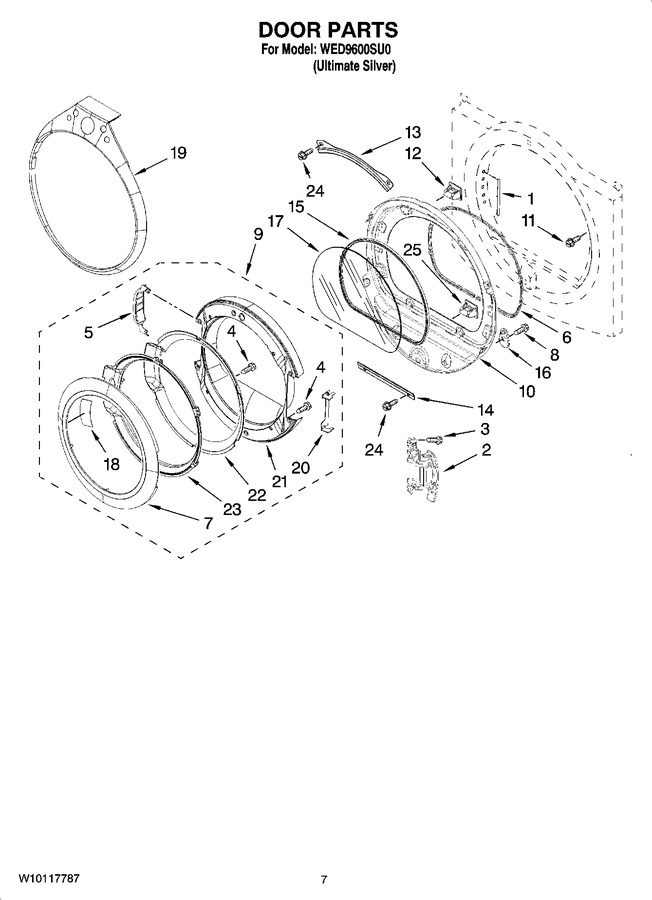

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10085210 | Label-hinge Hole Cover |
|
$ 76.53 | |||||
| 2 | WPW10310366 | Door Hinge Assembly (Replaces: 8577250) |
|
Immediately | $ 232.58 | ||||
| 3 | W10017850 | Screw, 10-24 X 3/64 |
|
- | |||||
| 4 | W10850046 | Screw, 8-18 X 5/8 (Replaces: 9742177) |
|
Immediately | $ 6.80 | ||||
| 5 | 8578152 | Cover-hinge (r.h.) |
|
- | |||||
| 5 | 8578153 | Cover-hinge (l.h.) |
|
- | |||||
| 6 | WPW10139457 | Seal-door (Replaces: 8577821) |
|
$ 120.85 | |||||
| 7 | W10048070 | Handle-ring & Pad Assembly |
|
- | |||||
| 8 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 9 | 8579520 | Door Assembly (outer) |
|
- | |||||
| 10 | 8578229 | Door Assembly (inner) (includes Illus. 12) |
|
$ 75.57 | |||||
| 11 | WP355515 | Screw, 8-18 X 11/16 (Replaces: 355515) |
|
$ 7.63 | |||||
| 12 | 279570 | Door Catch Assembly (upper) (Replaces: 3398175) |
|
Immediately | $ 8.00 | ||||
| 13 | 8519356 | Retainer-window (upper) |
|
- | |||||
| 14 | W10822054 | Retainer-window (lower) (Replaces: 8519354) |
|
Immediately | $ 16.21 | ||||
| 15 | 8579662 | Gasket, Window |
|
$ 106.25 | |||||
| 16 | W10048910 | Screw-plug |
|
- | |||||
| 17 | 8566254 | Window |
|
$ 127.75 | |||||
| 18 | 8580116 | Pad-handle |
|
- | |||||
| 19 | W10099330 | Tear-drop Trim & Clip Assembly |
|
- | |||||
| 20 | W10074630 | Door Shield |
|
- | |||||
| 21 | 8578157 | Door-intermediate |
|
- | |||||
| 22 | 8578156 | Door Mask |
|
$ 50.53 | |||||
| 23 | 8578155 | Door Screen |
|
- | |||||
| 24 | WP3373329 | Screw, 10-16 X 1/2 (Replaces: 3393258) |
|
$ 7.67 | |||||
| 25 | 279570 | Door Catch Assembly (lower) (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 24.99 | |||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 786020 | Paint, Pressurized Spray (12 Oz.) (black) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | |||||
| 8212605 | Paint, Touch-up (1/2oz.) (ultimate Silver) |
|
$ 16.01 | ||||||
| 72302 | Paint, Touch-up (1/2oz.) (black) |
|
- | ||||||
| 4392067 | Kit, Dryer Repair (Replaces: 80047) |
|
Immediately | $ 56.03 | |||||
| 8579123A | Kit, Door Reversing (ultimate Silver) (Replaces: 8579123) |
|
$ 118.94 | ||||||
| 8530071 | Kit, Door Reversing (biscuit) |
|
$ 34.64 | ||||||
| 8530072 | Kit, Door Reversing (pewter) |
|
$ 37.07 | ||||||
| 8530070 | Kit, Door Reversing (platinum) |
|
$ 33.00 | ||||||
| 8541503 | Kit, Stack Assembly |
|
Immediately | $ 42.97 | |||||
| 8212450A | Dry Rack Assembly (Replaces: 8521957) |
|
Immediately | $ 79.37 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 8529894 | Kit, Hold Down |
|
- | ||||||
| 786302 | Paint, Bulk (1 Qt.) (black (uncut)) |
|
- | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- |
