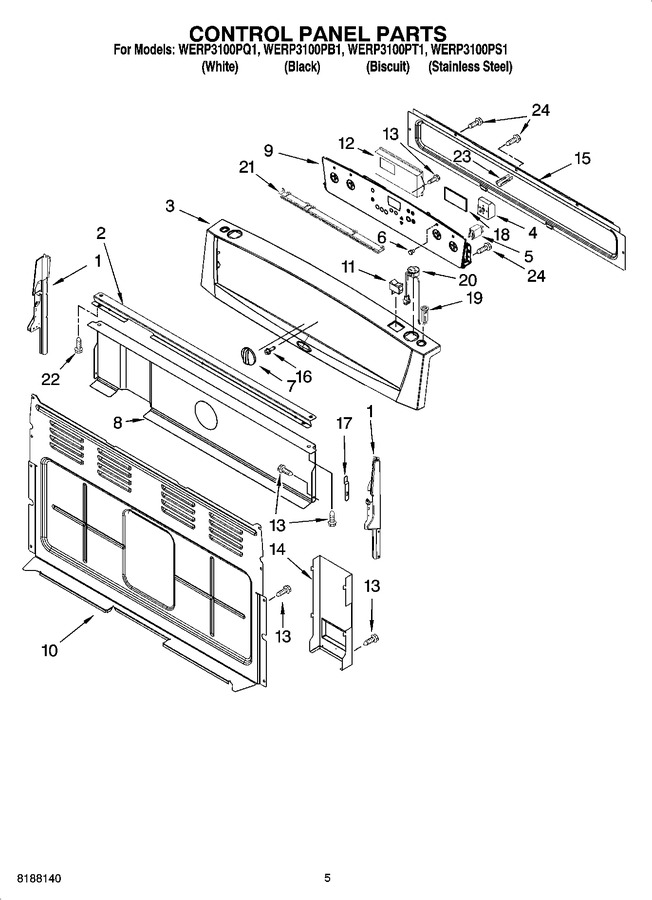

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black Left Hand)   (Replaces: 9757633)				$ 153.83
1	W11219365		Endcap (white Left Hand)   (Replaces: 9757631)				$ 42.45
1	W11219370		Endcap (white Right Hand)   (Replaces: 9757632)				$ 60.83
1	W11230612		Endcap (biscuit Right Hand)   (Replaces: 9757636)		Appelez-nous	-
1	W11219665		Endcap (black Right Hand)   (Replaces: 9757634)				$ 45.17
1	9757635		Endcap (biscuit Left Hand)		Appelez-nous	-
2	9756364		Bracket, Console		Appelez-nous	-
3	9757994		Panel, Backguard (white)		Appelez-nous	-
3	9757995		Panel, Backguard (black)		Appelez-nous	-
3	9757996		Panel, Backguard (biscuit)		Appelez-nous	-
3	9757993		Panel, Backguard (stainless Steel)				$ 168.75
4	WP3149400		Switch, Infinite (right Rear)   (Replaces: 3148954)			Immediately	$ 90.51
4	WP3148952		Switch, Infinite (right Front)   (Replaces: 3148952)			Immediately	$ 69.51
5	WP8523265		Light, Indicator   (Replaces: 8523265)			Immediately	$ 101.96
6	WP3196068		Lens, Light   (Replaces: 3196068)			Immediately	$ 6.26
7	9757626		Knob, Infinite (4) (biscuit)				$ 47.42
7	9757132		Knob, Infinite (4) (white)				$ 106.47
7	9758129		Knob, Infinite (4) (black)				$ 23.80
8	8053912		Shield, Heat				$ 34.55
9	9758469		Bracket, Control (biscuit)		Appelez-nous	-
9	9758468		Bracket, Control (white)				$ 560.83
9	9758470		Bracket, Control (black)		Appelez-nous	-
10	9756999		Cover, Rear		Appelez-nous	-
11	9758907		Switch, Rocker (white)				$ 37.11
11	9758908		Switch, Rocker (black)				$ 7.19
11	9758910		Switch, Rocker (architect Grey)		Appelez-nous	-
11	9758909		Switch, Rocker (biscuit)		Appelez-nous	-
12	9760422		Control, Range				$ 176.10
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	WPW10326122		Cover, Box   (Replaces: 9758283)				$ 139.60
15	9756366		Cover, Rear (console)		Appelez-nous	-
16	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
17	3196200		Clip, Spring (2)				$ 10.45
18	9758486		Card, Insulator		Appelez-nous	-
19	WP9757604		Breaker, 15amp (architect Grey)   (Replaces: 9757604)			Immediately	$ 10.94
19	WP9757601		Breaker, 15amp (white)   (Replaces: 9757601)			Immediately	$ 65.55
19	WP9757602		Breaker, 15amp (black)   (Replaces: 9757602)			Immediately	$ 60.91
19	9757603		Breaker, 15amp (biscuit)				$ 5.84
20	W10861164		Receptacle (black)   (Replaces: 9758890)			Immediately	$ 18.47
20	9758889		Receptacle (white)				$ 51.42
20	9758891		Receptacle (biscuit)		Appelez-nous	-
20	W10861164		Receptacle (architect Grey)   (Replaces: 9758892)			Immediately	$ 18.47
21	9757358		Reflector, Light		Appelez-nous	-
22	3196166		Screw (white)				$ 7.36
22	98008169		Screw (biscuit)   (Replaces: 8281194)		Appelez-nous	-
23	9757490		Support, Glass		Appelez-nous	-
24	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
