View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

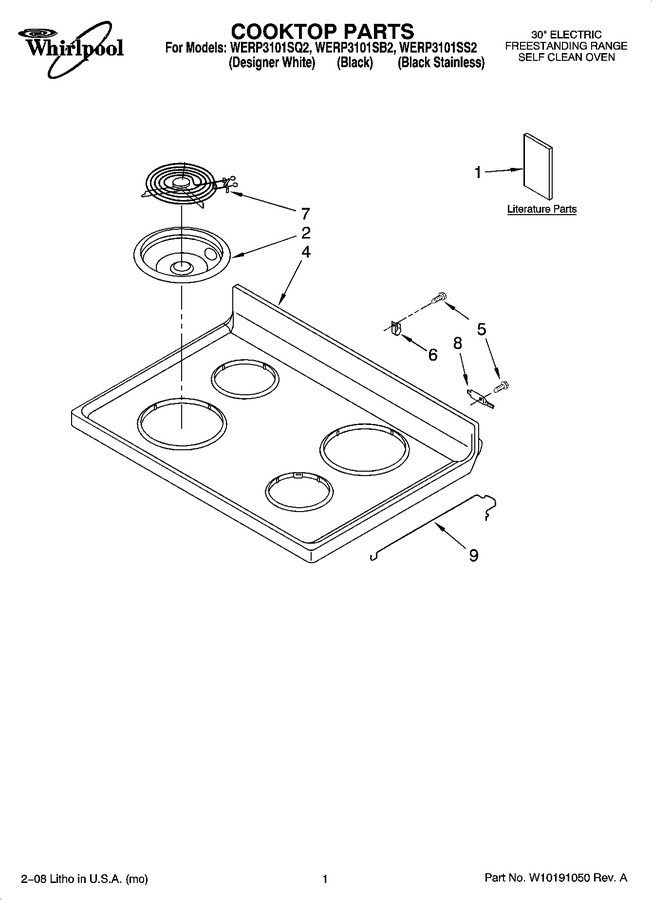

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10141167 | Instructions, Installation |
|
- | |||||
| 1 | 9757142 | Anti-tip Template (english/spanish) |
|
- | |||||
| 1 | 9757143 | Template,anti-tip (english/french) |
|
- | |||||
| 1 | W10162205 | Owners Manual |
|
- | |||||
| 1 | W10116300 | Tech Sheet (english) |
|
- | |||||
| 1 | W10116301 | Tech Sheet (french) |
|
- | |||||
| 2 | WPW10196406 | Drip Bowl (6`` Chrome) (Replaces: 3195208) |
|
Immediately | $ 13.39 | ||||
| 2 | W10290353RW | Drip Bowl (6`` Black) (Replaces: 3196202) |
|
Immediately | $ 21.41 | ||||
| 2 | W10196405RW | Drip Bowl (8`` Chrome) (Replaces: 3195209) |
|
Immediately | $ 21.82 | ||||
| 2 | WPW10290350 | Drip Bowl (8`` Black) (Replaces: 3196203) |
|
Immediately | $ 16.94 | ||||
| 4 | 8195532 | Cooktop (white) (Replaces: 3186231) |
|
$ 419.31 | |||||
| 4 | 8195534 | Cooktop (black) (Replaces: 3186233) |
|
$ 509.93 | |||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 6 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 11.76 | |||||
| 7 | WP660532 | Element, Surface (6``) (Replaces: 9761347) |
|
Immediately | $ 41.00 | ||||
| 7 | WPW10259865 | Element, Surface (8``) (Replaces: 9761345) |
|
Immediately | $ 117.69 | ||||
| 8 | WP3195060 | Hinge, Cooktop (2) (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 9 | WP3195812 | Support Rod, Cktp (Replaces: 3195812) |
|
Immediately | $ 8.73 |
