01 - Cooktop Parts

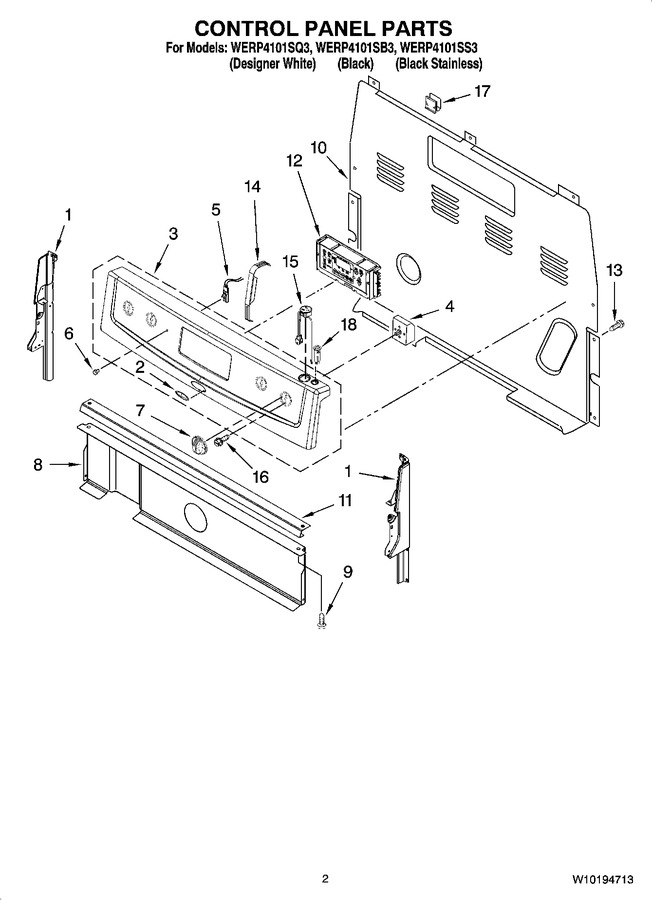

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black Left) (Replaces: W10009080) |
|
$ 146.50 | |||||
| 1 | W11219665 | Endcap (black Right) (Replaces: W10009090) |
|
$ 40.44 | |||||
| 1 | W11219365 | Endcap (white Left) (Replaces: W10009040) |
|
$ 40.43 | |||||
| 1 | W11219370 | Endcap (white Right) (Replaces: W10009050) |
|
$ 57.93 | |||||
| 2 | 9757609 | Nameplate |
|
$ 33.27 | |||||
| 3 | W10005880 | Panel, Control (black) |
|
- | |||||
| 3 | W10005890 | Panel, Control (silver) |
|
- | |||||
| 3 | W10005870 | Panel, Control (white) |
|
$ 68.23 | |||||
| 4 | 5500-287 | Switch, Infinite (lr/rr (silver)) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4 | WP3149400 | Switch, Infinite (rf, (orange)) (Replaces: 3148954) |
|
Immediately | $ 90.51 | ||||
| 4 | WP9758060 | Switch, Infinite (lf, Dual) (Replaces: 9758060) |
|
Immediately | $ 83.13 | ||||
| 5 | WP8523265 | Light, Ind. (2) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WP3196068 | Lens, Light (2) (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | WP9761962 | Knob, Infinite (4) (white) (Replaces: 9761962) |
|
Immediately | $ 19.67 | ||||
| 7 | WP9761964 | Knob, Infinite (4) (black) (Replaces: 9761964) |
|
Immediately | $ 21.24 | ||||
| 8 | 8523280 | Shield, Heat |
|
- | |||||
| 9 | WPW10181986 | Screw (Replaces: W10181986) |
|
Immediately | $ 106.83 | ||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 208.61 | |||||
| 11 | 9762095 | Brkt-mntg, Console |
|
- | |||||
| 12 | W10840298 | Control, Range (white) (Replaces: W10108090) |
|
$ 432.26 | |||||
| 12 | W10840298 | Control, Range (black) (Replaces: W10108100) |
|
$ 432.26 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.02 | ||||
| 14 | 9762078 | Bracket, Mounting Eoc (2) |
|
$ 38.13 | |||||
| 15 | W10849725 | Receptacle (white) (Replaces: 9758885) |
|
Immediately | $ 80.79 | ||||
| 15 | W10861164 | Receptacle (stainless Steel) (Replaces: 9758888) |
|
Immediately | $ 18.47 | ||||
| 15 | 9758886 | Receptacle (black) |
|
$ 8.00 | |||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.19 | ||||
| 17 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 12.06 | |||||
| 18 | WP9757604 | Breaker, 15 Amp (stainless Steel) (Replaces: 9757604) |
|
Immediately | $ 10.94 | ||||
| 18 | WP9757601 | Breaker, 15amp (white) (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 18 | WP9757602 | Breaker, 15amp (black) (Replaces: 9757602) |
|
Immediately | $ 53.81 |
