01 - Cooktop Parts

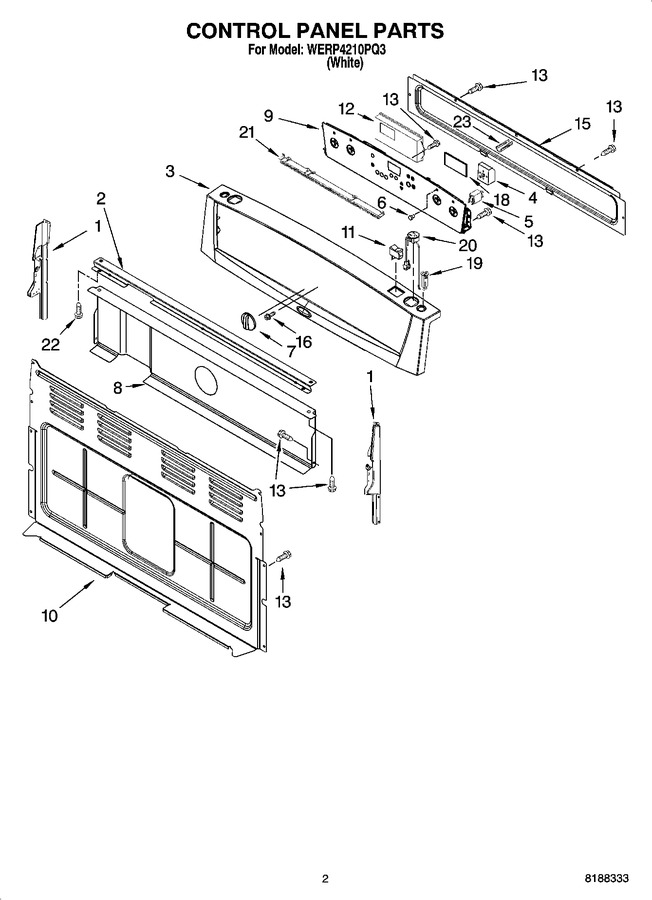

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (left Hand) (Replaces: W10009040) |
|
$ 42.45 | |||||
| 1 | W11219370 | Endcap (right Hand) (Replaces: W10009050) |
|
$ 60.83 | |||||
| 2 | 9756364 | Bracket, Console |
|
- | |||||
| 3 | 9763293 | Panel, Backguard |
|
$ 101.90 | |||||
| 4 | WP3149400 | Switch, Infinite (right Front) (Replaces: 3148954) |
|
Immediately | $ 90.51 | ||||
| 4 | 5500-287 | Switch, Infinite (right Rear) (Replaces: 3148951) |
|
Immediately | $ 54.48 | ||||
| 5 | WP8523265 | Light, Indicator (Replaces: 8523265) |
|
Immediately | $ 101.96 | ||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | 9757132 | Knob, Infinite (4) |
|
$ 106.47 | |||||
| 8 | 8523280 | Shield, Heat |
|
- | |||||
| 9 | 9758471 | Bracket, Control |
|
- | |||||
| 10 | 9756999 | Cover, Rear |
|
- | |||||
| 11 | 9758907 | Switch, Rocker |
|
$ 37.11 | |||||
| 12 | 9760422 | Control, Range |
|
$ 176.10 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 15 | 9756366 | Cover, Rear (console) |
|
- | |||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 18 | 9758486 | Card, Insulator |
|
- | |||||
| 19 | WP9757601 | Breaker, 15amp (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 20 | 9758889 | Receptacle |
|
$ 51.42 | |||||
| 21 | 9757358 | Reflector, Light |
|
- | |||||
| 22 | 3196166 | Screw |
|
$ 7.36 | |||||
| 23 | 9757490 | Support, Glass |
|
- |
