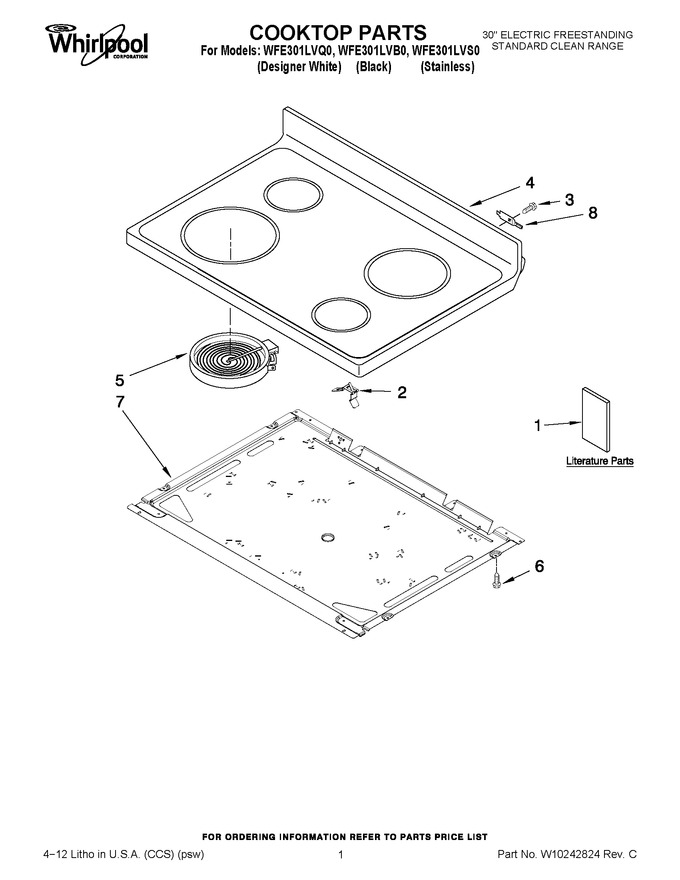

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10200356 | Owners Manual |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips |
|
- | |||||
| 1 | 9757142 | Template, Anti-tip (english/spanish) |
|
- | |||||
| 1 | 9757143 | Template, Anti-tip (english/french) |
|
- | |||||
| 1 | W10252706 | Instructions Installations |
|
- | |||||
| 1 | W10384447 | Tech Sheet |
|
- | |||||
| 2 | WPW10225448 | Spring, Locator (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 4 | W10248204 | Cooktop (white/white) (Replaces: W10162021) |
|
$ 700.99 | |||||
| 4 | W10248203 | Cooktop (black) (Replaces: W10162022) |
|
$ 696.97 | |||||
| 5 | WPW10242957 | Element, Surface (2000 W - Lf/rr) (Replaces: W10242957) |
|
$ 332.00 | |||||
| 5 | WP8523045 | Element, Surface (1500 W - Lr/rf) (Replaces: 8523045) |
|
$ 314.18 | |||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | W10170526 | Pan, Radiant |
|
$ 270.57 | |||||
| 8 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 |
