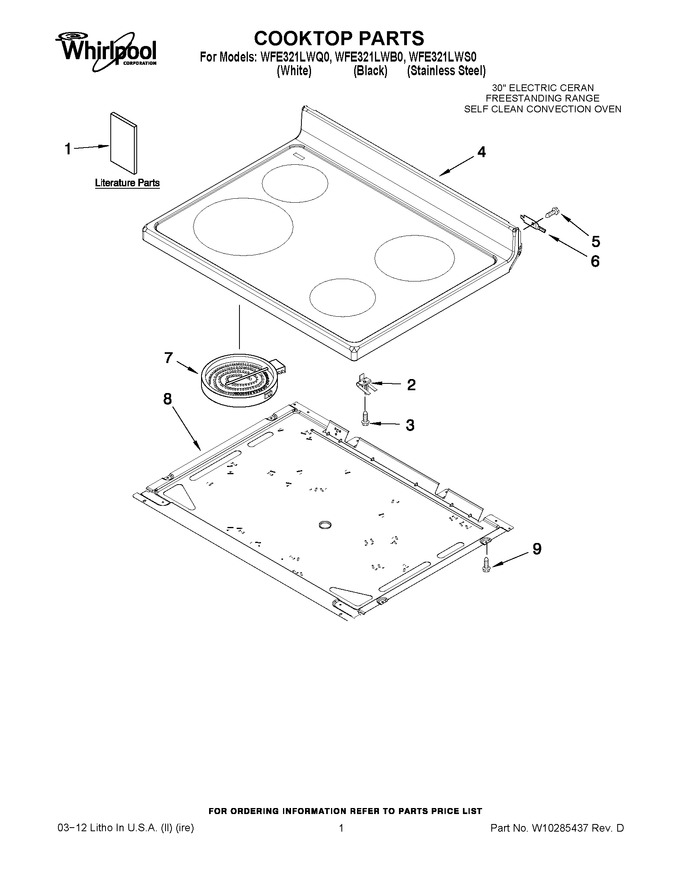

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10252706 | Installation Instructions |
|
- | |||||
| 1 | 9757142 | Template, Anti-tip (english/spanish) |
|
- | |||||
| 1 | W10267424 | Tech Sheet |
|
- | |||||
| 1 | 9757143 | Template, Anti-tip (english/french) |
|
- | |||||
| 1 | W10200357 | Owners Manual |
|
- | |||||
| 1 | 9762761 | Brochure, Tips (safe Cooking) |
|
- | |||||
| 2 | WPW10225448 | Spring, Locator (Replaces: W10162042) |
|
Immediately | $ 10.40 | ||||
| 3 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 7.55 | |||||
| 4 | W10307656 | Cooktop (white) (Replaces: W10267415) |
|
- | |||||
| 4 | W10267416 | Cooktop (black) |
|
- | |||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 6 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 7 | W10823711 | Element, Surface (1200w Rf-lr) (Replaces: 8523698) |
|
Immediately | $ 204.39 | ||||
| 7 | W10823728 | Element, Surface (1400w/3000w (lf)) (Replaces: W10169796) |
|
Immediately | $ 330.28 | ||||
| 7 | W10823698 | Element, Surface (1800w - Rr) (Replaces: 8523696) |
|
Immediately | $ 195.12 | ||||
| 8 | W10170526 | Pan, Radiant Elmt |
|
$ 270.57 | |||||
| 9 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 |
