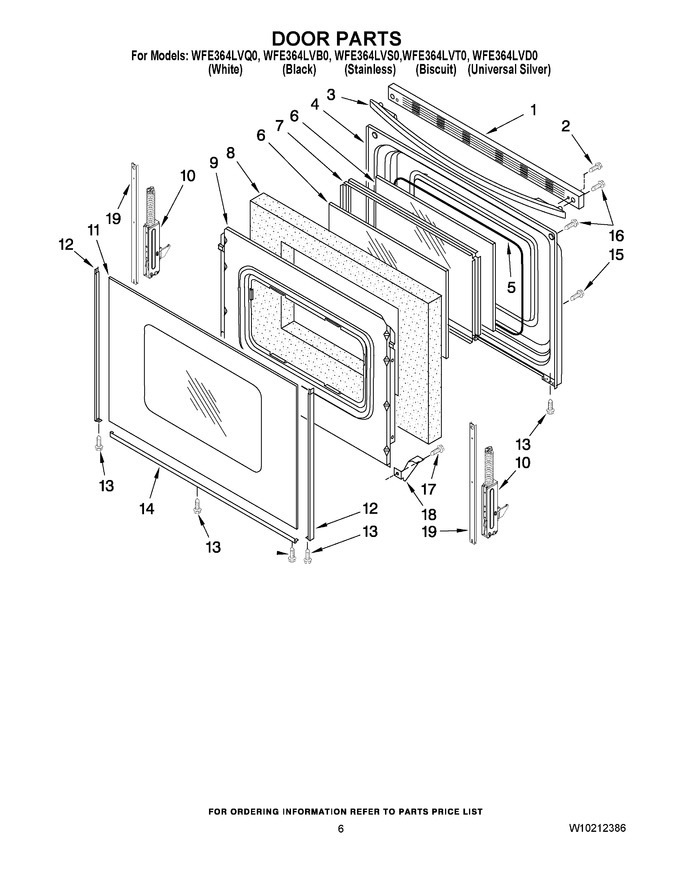

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10817433 | Trim, Top (white) (Replaces: W10144869) |
|
Immediately | $ 162.27 | ||||
| 1 | WPW10310922 | Trim, Top (blk / Stls) (Replaces: W10144870) |
|
Immediately | $ 157.83 | ||||
| 1 | W10016450 | Trim, Top (biscuit) |
|
$ 81.21 | |||||
| 2 | W101168559 | Screw |
|
- | |||||
| 3 | W10817434 | Handle, Door (white) (Replaces: W10118384) |
|
Immediately | $ 211.34 | ||||
| 3 | WPW10323589 | Handle, Door (black) (Replaces: W10118385) |
|
Immediately | $ 252.10 | ||||
| 3 | W10118386 | Handle, Door (biscuit) |
|
- | |||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 335.60 | ||||
| 5 | 8522414 | Seal, Window |
|
$ 160.59 | |||||
| 6 | WP8053948 | Glass, Inner (2) (Replaces: 9758162) |
|
Immediately | $ 208.85 | ||||
| 7 | WPW10316950 | Frame, Glass (Replaces: 3186289) |
|
Immediately | $ 81.08 | ||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 91.23 | ||||
| 9 | W11539580 | Retainer, Insul. (Replaces: 9761357) |
|
$ 209.98 | |||||
| 10 | W10347466 | Hinge, Door (2) (white, Black, Bisc.) (Replaces: 9761493) |
|
Immediately | $ 197.86 | ||||
| 10 | W10347464 | Hinge, Door (2) (stainless Model) (Replaces: 9761496) |
|
Immediately | $ 120.58 | ||||
| 11 | WPW10118455 | Glass, Outer (black) (Replaces: W10118455) |
|
Immediately | $ 299.43 | ||||
| 11 | W10144884 | Glass, Outer (stainless Steel) |
|
- | |||||
| 11 | W10118456 | Glass, Outer (biscuit) |
|
$ 127.08 | |||||
| 11 | WPW10118454 | Glass,outer (white) (Replaces: W10118454) |
|
$ 292.42 | |||||
| 11 | W10144949 | Glass, Outer (universal Silver) |
|
- | |||||
| 12 | WP8523166 | Trim, Side (white Right Hand) (Replaces: 8523166) |
|
Immediately | $ 75.81 | ||||
| 12 | WP8523172 | Trim, Side (white Left Hand) (Replaces: 8523172) |
|
Immediately | $ 62.94 | ||||
| 12 | 8184858 | Trim, Side (stainless Rh) (Replaces: W10113925) |
|
$ 151.97 | |||||
| 12 | 8184858 | Trim, Side (stainless Lh) (Replaces: W10113926) |
|
$ 151.97 | |||||
| 12 | WP8523173 | Trim, Side (biscuit Right Hand) (Replaces: 8523173) |
|
$ 111.18 | |||||
| 12 | WP8523167 | Trim, Side (biscuit Left Hand) (Replaces: 8523167) |
|
$ 107.19 | |||||
| 12 | W10761014 | Trim, Side (blk/u.silvr Rh) (Replaces: 8523165) |
|
Immediately | $ 65.66 | ||||
| 12 | W10761018 | Trim, Side (blk/u.silvr Lh) (Replaces: 8523171) |
|
Immediately | $ 49.32 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 14 | WP8523177 | Trim, Lower (black) (Replaces: 8523177) |
|
$ 149.27 | |||||
| 14 | WP8523180 | Trim, Lower (stainless Model) (Replaces: 8523180) |
|
$ 152.10 | |||||
| 14 | W10067550 | Trim, Lower (universal Silver) |
|
- | |||||
| 14 | WP8523178 | Trim, Lower (biscuit) (Replaces: 8523178) |
|
$ 145.59 | |||||
| 14 | W11594186 | Trim, Lower (white) (Replaces: 8523175) |
|
Immediately | $ 55.23 | ||||
| 15 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 16 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 17 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.42 | ||||
| 18 | 3196794 | Bracket, Window (2) |
|
$ 24.34 | |||||
| 19 | W11502236 | Strap, Door (Replaces: W10113759) |
|
Immediately | $ 24.91 |
