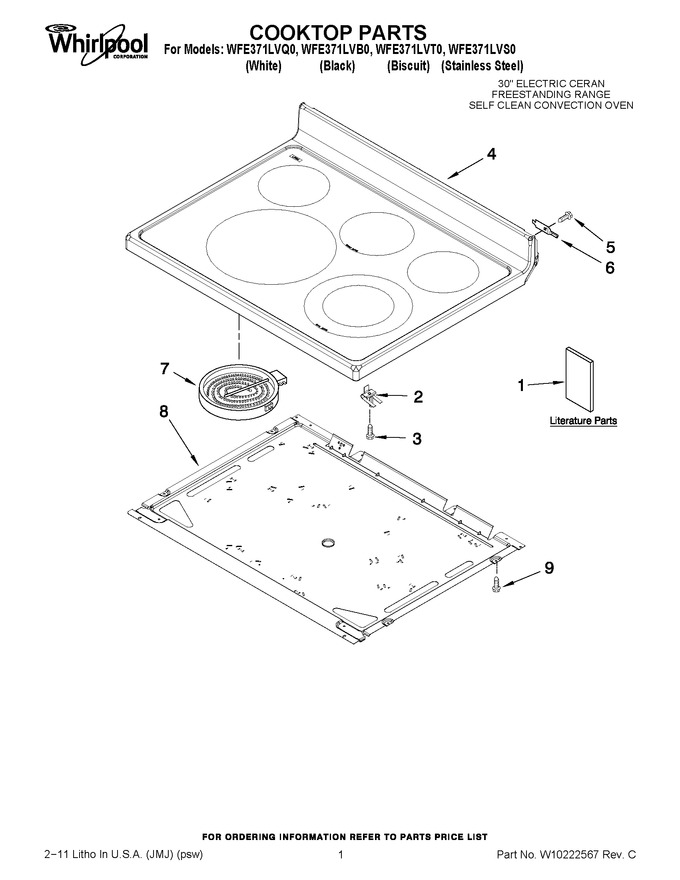

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10198582 | Tech Sheet |
|
- | |||||
| 1 | W10200357 | Owner`s Manual |
|
- | |||||
| 1 | 9762761 | Brochure, Tips (safe Cooking) |
|
- | |||||
| 1 | 9757143 | Template,anti-tip (english/french) |
|
- | |||||
| 1 | 9757142 | Template,anti-tip (english/spanish) |
|
- | |||||
| 1 | W10196158 | Installation Instructions |
|
- | |||||
| 2 | WPW10225448 | Spring, Locator (Replaces: W10162042) |
|
Immediately | $ 10.40 | ||||
| 3 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 7.55 | |||||
| 4 | W10162039 | Cooktop (biscuit) |
|
- | |||||
| 4 | W10651915 | Cooktop (black) (Replaces: W10162038) |
|
$ 684.99 | |||||
| 4 | W10651914 | Cooktop (white) (Replaces: W10162037) |
|
$ 702.42 | |||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 6 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 7 | W11517959 | Element, Surface (3000/1400 W - Rf) (Replaces: W10169799) |
|
Immediately | $ 146.68 | ||||
| 7 | WP9762851 | Element, Surface (warm Zone (120v)) (Replaces: 9762851) |
|
Immediately | $ 290.36 | ||||
| 7 | W10823711 | Element, Surface (1200 W -right Rear) (Replaces: 8523698) |
|
Immediately | $ 253.06 | ||||
| 7 | W10823728 | Element, Surface (3000 W - Lf) (Replaces: W10169796) |
|
Immediately | $ 330.28 | ||||
| 8 | W10170526 | Pan, Radiant Elmt |
|
$ 270.57 | |||||
| 9 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 |
