01 - Cooktop Parts

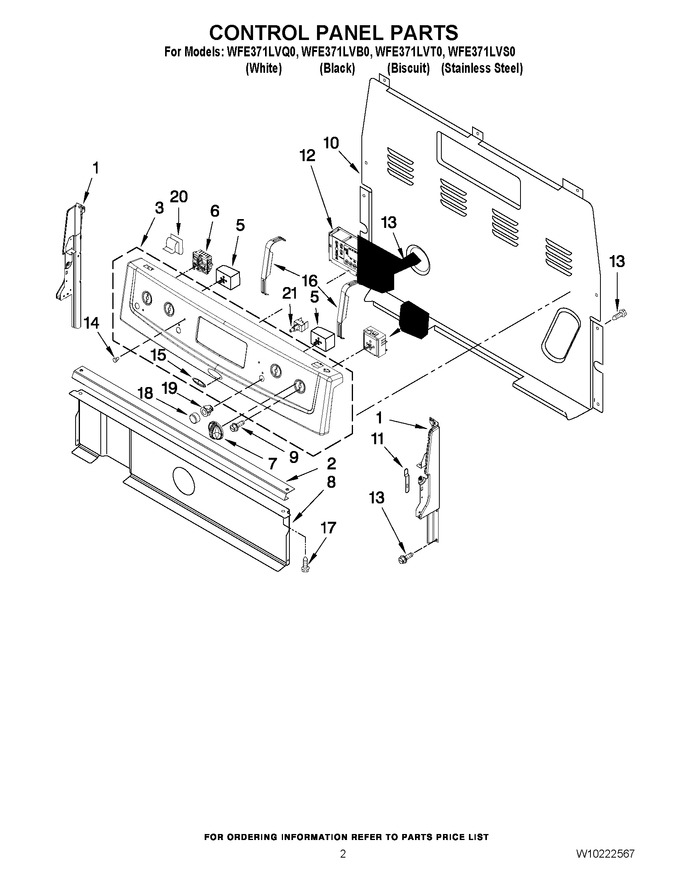

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11230612 | Endcap (biscuit Right Hand) (Replaces: W10184436) |
|
- | |||||
| 1 | W11219365 | Endcap (white Left Hand) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 1 | W11219370 | Endcap (white Right Hand) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 1 | W11219664 | Endcap (black Left Hand) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 1 | W11219665 | Endcap (black Right Hand) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 1 | W11230611 | Endcap (biscuit Left Hand) (Replaces: W10184435) |
|
- | |||||
| 2 | W10525121 | Bracket, Console (Replaces: W10182322) |
|
$ 98.85 | |||||
| 3 | W10170658 | Console (white) |
|
- | |||||
| 3 | W10173826 | Console (stainless Steel) |
|
$ 152.94 | |||||
| 3 | W10170660 | Console (biscuit) |
|
- | |||||
| 3 | W10170659 | Console (black) |
|
- | |||||
| 4 | WPW10149355 | Switch, Infinite Right Front (dual Elmt) (Replaces: W10149355) |
|
Immediately | $ 207.42 | ||||
| 5 | 5500-287 | Switch, Infinite Left & Right Rear (single Elmt) (Replaces: 3148951) |
|
Immediately | $ 54.48 | ||||
| 6 | WPW10167742 | Infinite Switch Left Front (single Elmt) (Replaces: W10167742) |
|
Immediately | $ 118.20 | ||||
| 7 | WP9761963 | Knob, Infinite (4) (biscuit) (Replaces: 9761963) |
|
$ 20.78 | |||||
| 7 | WP9761964 | Knob, Infinite (4) (black) (Replaces: 9761964) |
|
Immediately | $ 22.30 | ||||
| 7 | WP9761962 | Knob, Infinite (4) (white) (Replaces: 9761962) |
|
Immediately | $ 20.65 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 10 | WP8272473 | Cover, Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | 3196200 | Clip, Spring (2) |
|
$ 10.45 | |||||
| 12 | WPW10173525 | Control, Range (biscuit) (Replaces: W10173525) |
|
$ 374.78 | |||||
| 12 | WPW10476353 | Control, Range (white) (Replaces: W10173523) |
|
$ 434.01 | |||||
| 12 | WPW10476353 | Control, Range (black) (Replaces: W10173524) |
|
$ 434.01 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 15 | 9757609 | Nameplate |
|
$ 33.27 | |||||
| 16 | 9762078 | Brkt, Mntg Eoc |
|
$ 38.13 | |||||
| 17 | WP3400832 | Screw (black) (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 17 | 3196166 | Screw (white) |
|
$ 7.36 | |||||
| 18 | 9758491 | Button, Keep Warm (black) |
|
$ 19.74 | |||||
| 18 | 9757492 | Button, Keep Warm (white) |
|
$ 96.01 | |||||
| 18 | 9758490 | Button, Keep Warm (biscuit) |
|
- | |||||
| 19 | W10217760 | Bezel, Keep Warm (white) (Replaces: W10184163) |
|
$ 25.91 | |||||
| 19 | W10217758 | Bezel, Keep Warm (black) (Replaces: W10184165) |
|
$ 28.65 | |||||
| 19 | W10184164 | Bezel, Keep Warm (biscuit) |
|
- | |||||
| 20 | WP8273564 | Clip, Rear Cover (Replaces: 8273564) |
|
$ 12.66 | |||||
| 21 | WP8272820 | Switch, Warm Zone (Replaces: 8272820) |
|
$ 178.91 |
