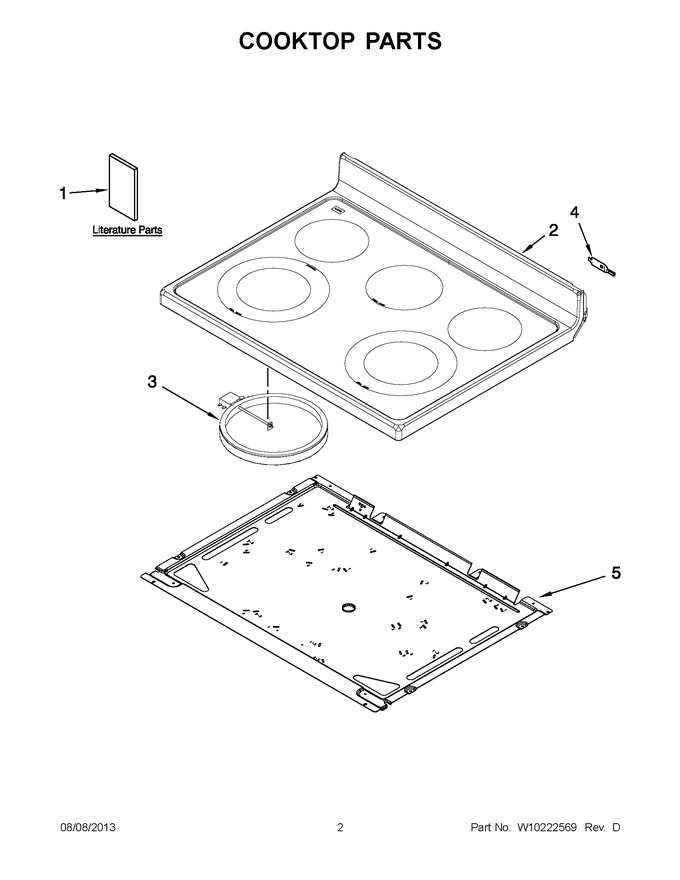

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer And Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9757142 | Template, Anti-tip (english/spanish) |
|
- | |||||
| 1 | 9757143 | Template, Anti-tip (english/french) |
|
- | |||||
| 1 | W10200357 | Owners Manual |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10252706 | Instructions, Installation |
|
- | |||||
| 1 | W10384450 | Tech Sheet |
|
- | |||||
| 2 | W10162029 | Cooktop (white) |
|
- | |||||
| 2 | W10162030 | Cooktop (black/stainless) |
|
- | |||||
| 2 | W10162028 | Cooktop (biscuit) |
|
- | |||||
| 3 | W11517959 | Element (3000/1400w) ( Left Front And Right Front) (Replaces: W10169799) |
|
Immediately | $ 134.44 | ||||
| 3 | WP9762851 | Element, Warm Zone 120v) (right Rear And Left Rear) (Replaces: 9762851) |
|
Immediately | $ 290.36 | ||||
| 3 | W10823711 | Element (1200w) (center Rear) (Replaces: 8523698) |
|
Immediately | $ 204.39 | ||||
| 4 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 5 | W10170526 | Pan, Radiant Element |
|
$ 270.57 |
