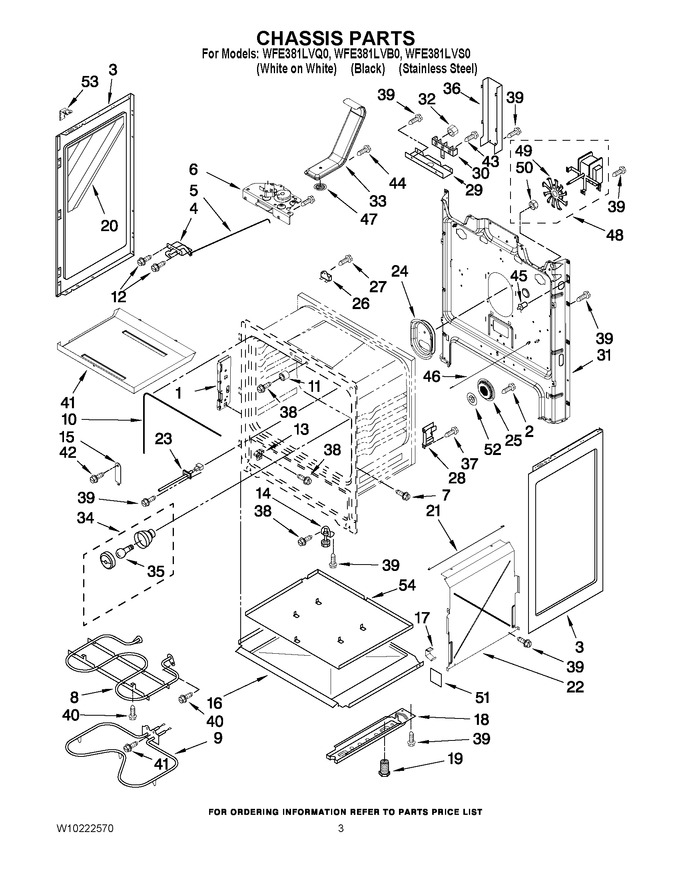

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10647259		Brkt-mntg,dr Hnge   (Replaces: 9760407)			Immediately	$ 9.32
2	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
3	W11730303		Panel, Side (2) (black)   (Replaces: 8053832)			Immediately	$ 164.83
3	WPW10575396		Panel, Side (2) (white-textured)   (Replaces: 8053830)				$ 148.71
4	WP9761013		Latch, Door   (Replaces: 9761013)				$ 244.15
5	W10078380		Rod, Latch				$ 90.39
6	WPW10107830		Latch Asy, Rear   (Replaces: W10107830)				$ 323.31
7	WPW10067840		Screw   (Replaces: W10067840)				$ 7.76
8	W10856603		Element, Broil   (Replaces: 9757340)			Immediately	$ 154.62
9	WP9755770		Element, Bake   (Replaces: 9755770)			Immediately	$ 117.66
10	W11542153		Seal, Oven Door   (Replaces: 8522416)			Immediately	$ 50.20
11	W10877054		Spacer, Door   (Replaces: 9758701)			Immediately	$ 53.39
12	W11169708		Screw   (Replaces: 3196560)				$ 13.36
13	WPW10114344		Glide, Drawer (2)   (Replaces: W10114344)			Immediately	$ 8.16
14	WP3196037		Foot, Front (2)   (Replaces: 3196037)				$ 82.97
15	9761517		Clip, Door Mntg (2)				$ 45.82
16	W10134121		Tray, Insulation				$ 42.62
17	W10137382		Clip, Panel (6)			Immediately	$ 46.11
18	W11818353		Rail, Base (2)   (Replaces: 9760314)				$ 59.68
19	WPW10058460		Foot, Rear (2)   (Replaces: W10058460)			Immediately	$ 7.85
20	W10182346		Insulation, Side				$ 77.83
21	W10727426		Rod-insl Retainer   (Replaces: W10196451)			Immediately	$ 80.62
22	W10450380		Retainer, Side (2)   (Replaces: 9758238)		Appelez-nous	-
23	WPW10181986		Sensor, Oven   (Replaces: W10181986)			Immediately	$ 106.83
24	W10134126		Bracket, Fan				$ 22.84
25	WPW10134124		Cover, Fan   (Replaces: W10134124)			Immediately	$ 97.70
26	WP3196548		Fuse, Thermal   (Replaces: 3196548)			Immediately	$ 47.71
27	3196172		Screw			Immediately	$ 12.83
28	W10404688		Support, Oven (2)   (Replaces: 3186116)				$ 16.85
29	W11763591		Bracket, Service   (Replaces: 3186034)		Appelez-nous	-
30	WPW10245259		Block, Terminal   (Replaces: W10245259)			Immediately	$ 35.17
31	9757029		Back, Main		Appelez-nous	-
32	WP7103P027-60		Nut (3)   (Replaces: 7103P027-60)			Immediately	$ 7.19
33	WPW10134285		Vent Tube Asm   (Replaces: W10134285)			Immediately	$ 250.48
34	W11594027		Light Socket Assy   (Replaces: 3196701)			Immediately	$ 87.01
35	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
36	WPW10326122		Cover, Box   (Replaces: 9758283)				$ 132.95
37	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.19
38	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 7.75
39	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
40	WP3196174		Screw   (Replaces: 3196174)			Immediately	$ 7.82
41	W10183712		Tray-bake, Hidden				$ 232.33
42	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.82
43	WP3400016		Screw   (Replaces: 3400016)				$ 7.95
44	WP3196154		Screw   (Replaces: 3196154)				$ 7.82
45	9757238		Switch - Door				$ 64.08
46	9757239		Rod, Door Switch Rear Mount				$ 91.78
47	9761301		Screen, Catalyst				$ 140.86
48	W11582241		Fan, Motor Cnvctn   (Replaces: W10167917)			Immediately	$ 128.31
49	W10758272		Blade, Fan   (Replaces: W10116351)			Immediately	$ 7.91
50	W11548755		Nut   (Replaces: W10213748)				$ 14.47
51	W10646923		Card, Insulator   (Replaces: 9759689)				$ 18.64
52	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 7.79
53	W10183541		Shield, Insul. Retainer		Appelez-nous	-
54	W10134125		Shield, Insul. Retainer				$ 151.78
NI	8053915		Insulation, Vent   (Replaces: 8272613)				$ 12.44
NI	W10326347		Insulation, Back   (Replaces: W10219986)		Appelez-nous	-
NI	WPW10208653		Insulation, Wrap   (Replaces: W10208653)			Immediately	$ 55.47
