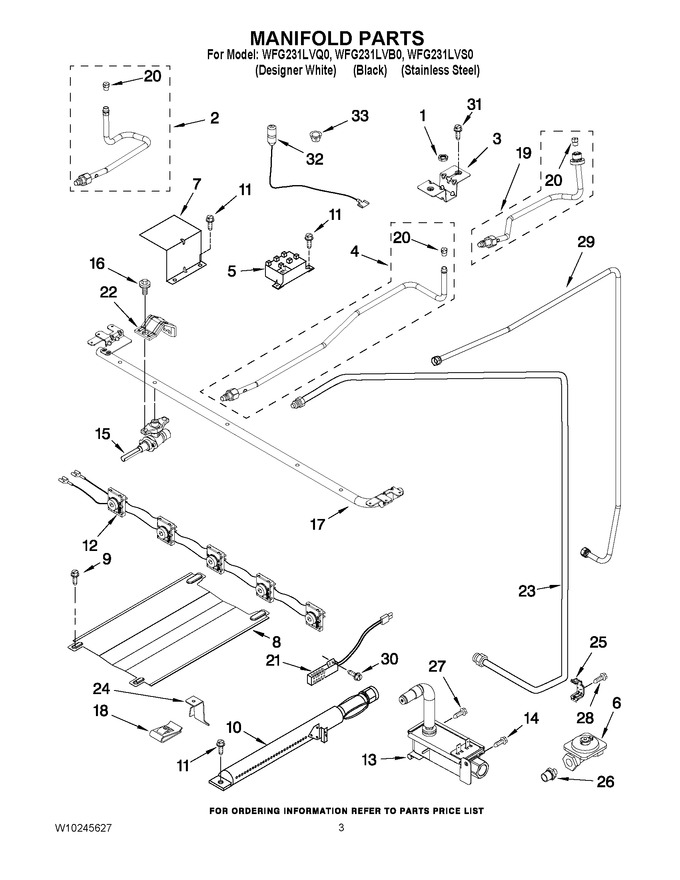

03 - Manifold Parts
04 - Chassis Parts
05 - Oven & Broiler Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 98017323 | Nut (4) |
|
- | |||||
| 2 | W11661107 | Venturi, Front (2) (rf) (Replaces: W10110343) |
|
$ 132.42 | |||||
| 2 | W10110344 | Venturi, Front (2) (lf) |
|
$ 77.28 | |||||
| 3 | WP98017741 | Brkt., Venturi (4) (Replaces: 98017741) |
|
$ 90.38 | |||||
| 4 | WPW10110342 | Venturi, Rear (2) (Replaces: W10110342) |
|
$ 193.11 | |||||
| 5 | W11565127 | Spark Module (Replaces: W10110523) |
|
$ 232.70 | |||||
| 6 | 98007411 | Regulator |
|
$ 130.98 | |||||
| 7 | 98007192 | Cover, Module |
|
- | |||||
| 8 | 98015099 | Spreader, Flame |
|
$ 283.86 | |||||
| 9 | W11233072 | Screw (Replaces: 98006632) |
|
Immediately | $ 14.72 | ||||
| 10 | WP98012138 | Burner, Oven (Replaces: 98012138) |
|
$ 234.42 | |||||
| 11 | W10837731 | Screw (Replaces: 98006633) |
|
$ 8.30 | |||||
| 12 | W10361493 | Harness, Switch (Replaces: W10111806) |
|
$ 221.68 | |||||
| 13 | WP98014893 | Valve, Oven (Replaces: 98014893) |
|
$ 165.35 | |||||
| 14 | W10837731 | Screw (Replaces: 98006633) |
|
$ 8.30 | |||||
| 15 | WPW10141709 | Valve, Burner (lf, Lr, Rf, Rr) (Replaces: W10141709) |
|
Immediately | $ 241.87 | ||||
| 15 | W10141711 | Center-fish Burner |
|
$ 284.48 | |||||
| 16 | 98017517 | Bolt, Valve Mtg |
|
- | |||||
| 17 | W10110091 | Pipe, Manifold |
|
- | |||||
| 18 | 98009179 | U - Nut |
|
$ 14.03 | |||||
| 19 | W10110345 | Tubing, Center |
|
$ 198.48 | |||||
| 20 | WP98017587 | Office (rf, Rr, Lr) (Replaces: 98017587) |
|
$ 94.06 | |||||
| 20 | W10110355 | Orifice (center-fish Burner) |
|
$ 107.68 | |||||
| 20 | 98017586 | Office (lf) |
|
- | |||||
| 21 | W10918546 | Igniter, Oven (oven Pilot) (Replaces: W10140611) |
|
Immediately | $ 61.55 | ||||
| 22 | 98017516 | Bracket, Valve (4) |
|
$ 93.53 | |||||
| 23 | 98007428 | Tubing (regltr To Oven Valve) |
|
- | |||||
| 24 | 98013314 | Locator, Burner |
|
- | |||||
| 25 | 98007410 | Bracket, Regulator |
|
- | |||||
| 26 | 98007431 | Fitting 3/8to9/16 |
|
$ 129.01 | |||||
| 27 | 98013634 | Screw |
|
- | |||||
| 28 | 1180823 | Screw |
|
- | |||||
| 29 | WP98017171 | Tubing, Inlet (Replaces: 98017171) |
|
$ 271.97 | |||||
| 30 | W11676351 | Screw (Replaces: 98005659) |
|
- | |||||
| 31 | W10837674 | Screw (Replaces: W10146346) |
|
$ 8.05 | |||||
| 32 | WPW10209656 | Igniter, Top (rf, Rr, Lf, & Ctr) (Replaces: W10209656) |
|
Immediately | $ 85.25 | ||||
| 33 | WPW10278150 | Clip, Igniter (Replaces: 98015032) |
|
$ 45.12 | |||||
| NI | W10110353 | Lp Orifice Kit (for Use With Lp) |
|
$ 48.73 |
