SELECT A DIAGRAM

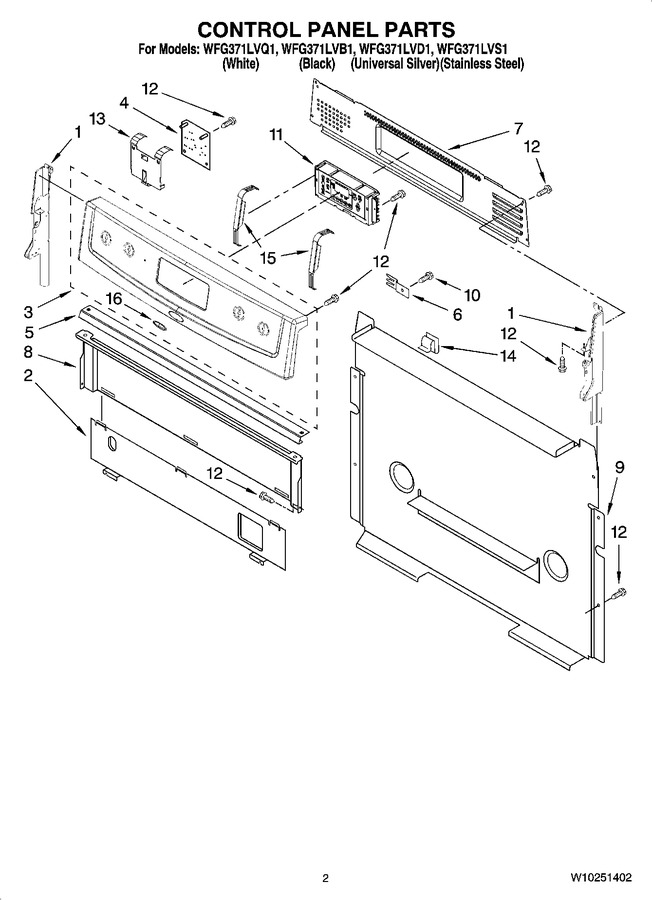

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer & Broiler Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219370		Endcap (white Right Hand)   (Replaces: W10184434)				$ 60.83
1	W11219664		Endcap (black Left Hand)   (Replaces: W10184437)				$ 153.83
1	W11219665		Endcap (black Right Hand)   (Replaces: W10184438)				$ 45.17
1	W11219365		Endcap (white Hand Left)   (Replaces: W10184433)				$ 42.45
2	8053505		Shield-heat, Lwr				$ 165.89
3	W10170637		Panel, Console (stainless Steel)				$ 130.87
3	W10184042		Panel, Console (white)				$ 133.94
3	W10184044		Panel, Console (black)				$ 128.17
3	W10184045		Panel, Console (universal Silver)				$ 142.33
4	WPW10331686		Module, Spark   (Replaces: 9758080)			Immediately	$ 393.86
5	9762855		Brkt-mntg, Console		Appelez-nous	-
6	8523412		Bracket, Support				$ 167.90
7	W10198745		Cover, Upper				$ 128.90
8	W10192841		Shield, Heat				$ 106.69
9	W10184370		Cover, Back		Appelez-nous	-
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
11	WPW10424330		Control, Range (white)   (Replaces: W10173526)				$ 414.84
11	WPW10424330		Control, Range (black)   (Replaces: W10173527)				$ 414.84
12	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
13	9762726		Brkt-mntg, Dsi				$ 29.39
14	WP8273564		Clip   (Replaces: 8273564)				$ 12.66
15	9762078		Bracket, Eoc Mount				$ 38.13
16	W10209617		Badge				$ 35.30

    View Diagram in Separate Window       Print Part List
