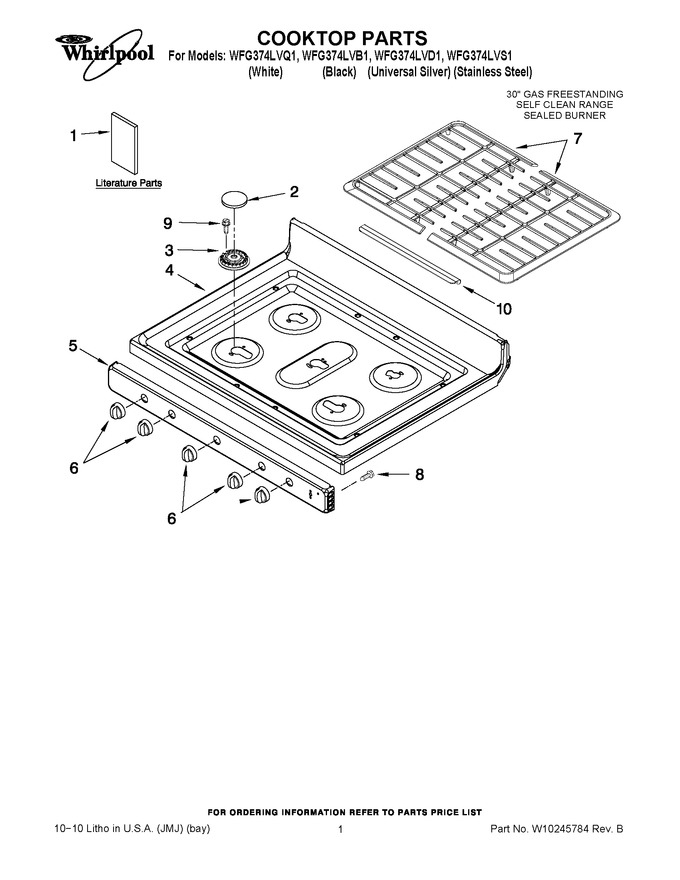

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer & Broiler Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9762761 | Safer Cooking Tips |
|
- | |||||
| 1 | W10196161 | Installation Instructions |
|
- | |||||
| 1 | 9757142 | Anti-tip Template (english/spanish) |
|
- | |||||
| 1 | 9757143 | Anti-tip Template (english/french) |
|
- | |||||
| 1 | W10196153 | Owners Manual |
|
- | |||||
| 1 | W10198618 | Tech Sheet |
|
- | |||||
| 2 | W10169974 | Cap, Burner Left Rear & Center (grey) |
|
$ 29.04 | |||||
| 2 | WPW10169975 | Cap, Burner Right Rear (grey) (Replaces: W10169975) |
|
$ 70.50 | |||||
| 2 | WPW10183370 | Cap, Burner Right Rear (black) (Replaces: W10183370) |
|
$ 67.99 | |||||
| 2 | WPW10183368 | Cap, Burner Left & Right Front (black) (Replaces: W10183368) |
|
$ 89.47 | |||||
| 2 | W10169973 | Cap, Burner Left & Right Front (grey) |
|
$ 102.63 | |||||
| 2 | WPW10183369 | Cap, Burner Left Rear & Center (black) (Replaces: W10183369) |
|
$ 68.37 | |||||
| 3 | WPW10406243 | Burner (right Rear) (Replaces: 8286181) |
|
Immediately | $ 39.08 | ||||
| 3 | WPW10406878 | Burner (right & Left Front) (Replaces: 8286183) |
|
$ 107.48 | |||||
| 3 | WPW10406283 | Burner (left Rear & Center) (Replaces: W10194076) |
|
$ 78.02 | |||||
| 4 | W10153558 | Cooktop (white) |
|
- | |||||
| 4 | W10153559 | Cooktop (black) |
|
- | |||||
| 5 | W10169921 | Panel, Manifold (black) |
|
- | |||||
| 5 | W10169922 | Panel, Manifold (white) |
|
$ 46.08 | |||||
| 6 | WPW10134130 | Knob (white, Accu Simmer) (Replaces: W10134130) |
|
$ 25.00 | |||||
| 6 | WPW10160649 | Knob (black, Control (2)) (Replaces: W10160649) |
|
$ 24.22 | |||||
| 6 | WPW10134134 | Knob (black, Pwr Burner) (Replaces: W10134134) |
|
$ 25.00 | |||||
| 6 | WPW10134131 | Knob (black, Accu Simmer) (Replaces: W10134131) |
|
$ 24.61 | |||||
| 6 | WPW10160648 | Knob (white, Control (2)) (Replaces: W10160648) |
|
$ 24.20 | |||||
| 6 | W10134133 | Knob (white, Pwr Burner) |
|
$ 18.82 | |||||
| 7 | W10165288 | Grate, Burner (black) |
|
- | |||||
| 7 | W10165289 | Grate, Burner (white) |
|
- | |||||
| 8 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 | ||||
| 10 | W10178038 | Deflector, Flue (black) |
|
- | |||||
| 10 | W10178037 | Deflector, Flue (white) |
|
- |
