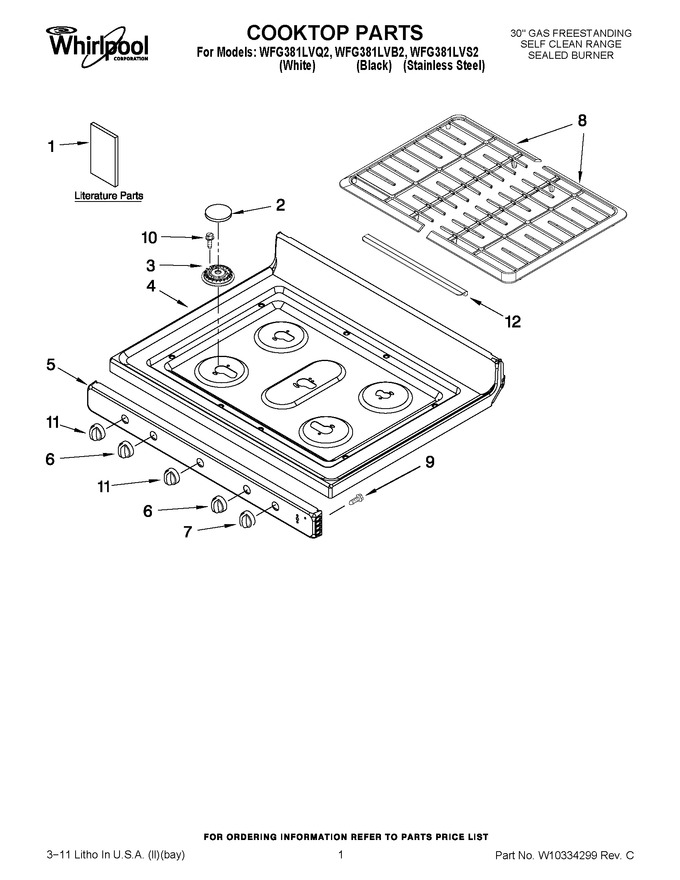

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer & Broiler Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9757142 | Anti-tip Template (english/spanish) |
|
- | |||||
| 1 | W10196160 | Installation Instructions |
|
- | |||||
| 1 | 9757143 | Anti-tip Template (english/french) |
|
- | |||||
| 1 | W10196152 | Owners Manual |
|
- | |||||
| 1 | W10198618 | Tech Sheet (english) |
|
- | |||||
| 1 | W10198649 | Tech Sheet (french) |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 2 | WPW10183372 | Cap, Burner (wetstone) (Replaces: W10183372) |
|
$ 96.73 | |||||
| 2 | WPW10183374 | Cap, Burner (black) (Replaces: W10183374) |
|
$ 190.65 | |||||
| 3 | WPW10406878 | Burner (l.front, R.front) (Replaces: 8286183) |
|
$ 102.36 | |||||
| 3 | WPW10406283 | Burner (l.rear, Center) (Replaces: W10194076) |
|
$ 74.30 | |||||
| 3 | WPW10406243 | Burner (right Rear) (Replaces: 8286181) |
|
Immediately | $ 37.22 | ||||
| 4 | W10153559 | Cooktop (black) |
|
- | |||||
| 4 | W10153558 | Cooktop (white) |
|
- | |||||
| 5 | W10169922 | Panel, Manifold (white) |
|
$ 46.08 | |||||
| 5 | W10169921 | Panel, Manifold (black) |
|
- | |||||
| 6 | WPW10160648 | Knob, Control (white) (Replaces: W10160648) |
|
$ 23.05 | |||||
| 6 | WPW10160649 | Knob, Control (black) (Replaces: W10160649) |
|
$ 23.07 | |||||
| 7 | WPW10134130 | Knob, Accusimmer (white) (Replaces: W10134130) |
|
$ 23.81 | |||||
| 7 | WPW10134131 | Knob, Accusimmer (black) (Replaces: W10134131) |
|
$ 23.44 | |||||
| 8 | W10170256 | Grate, Burner (black) |
|
$ 131.47 | |||||
| 8 | W10170091 | Grate, Burner (grey) |
|
$ 132.38 | |||||
| 9 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 7.13 | ||||
| 10 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 | ||||
| 11 | W10134133 | Knob, Powerburner (white) |
|
$ 18.82 | |||||
| 11 | WPW10134134 | Knob, Powerburner (black) (Replaces: W10134134) |
|
$ 23.81 | |||||
| 12 | W10178037 | Deflector, Flue (white) |
|
- | |||||
| 12 | W10178038 | Deflector, Flue (black) |
|
- |
