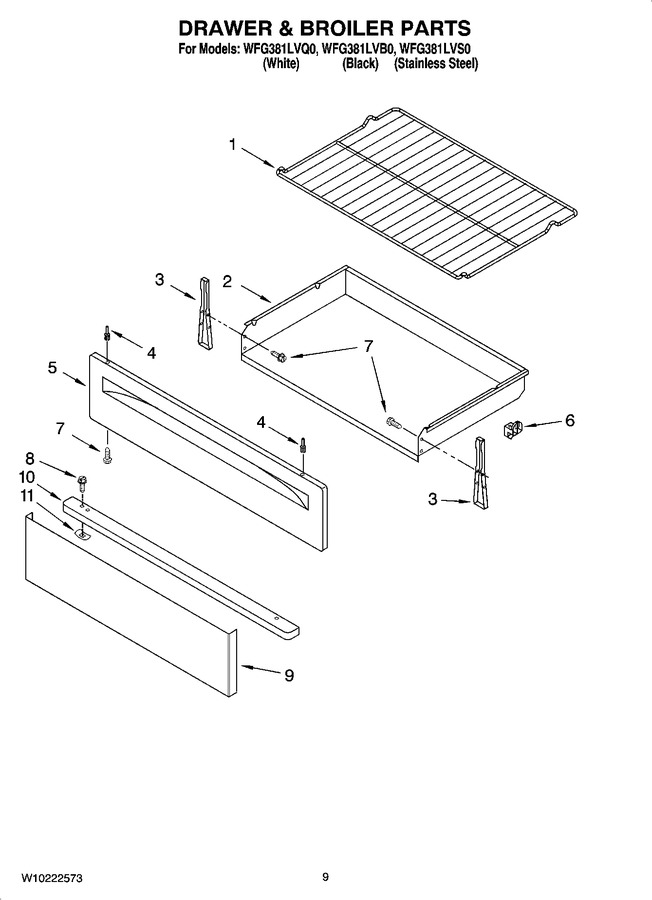

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (2) (Replaces: W10179196) |
|
Immediately | $ 46.84 | ||||
| 2 | 9761031 | Drawer, Storage |
|
- | |||||
| 3 | W10174397 | Bracket, Drawer(2) |
|
$ 38.13 | |||||
| 4 | WP3196814 | Rivet, Push (2) (white) (Replaces: 3196814) |
|
Immediately | $ 10.54 | ||||
| 4 | WP3196813 | Rivet, Push (2) (black) (Replaces: 3196813) |
|
Immediately | $ 10.67 | ||||
| 5 | W11230490 | Panel, Drawer Frnt (black) (Replaces: W10022100) |
|
$ 201.51 | |||||
| 5 | W11230486 | Panel, Drawer Frnt (white) (Replaces: W10022090) |
|
$ 201.42 | |||||
| 6 | WP8053334 | Spacer, Glide (Replaces: 8053334) |
|
Immediately | $ 7.84 | ||||
| 7 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 7.75 | ||||
| 8 | W11233072 | Screw(stls. Model) (Replaces: 3196178) |
|
Immediately | $ 14.02 | ||||
| 9 | W10217861 | Panel(stls. Model) |
|
- | |||||
| 10 | W10197980 | Handle(stls. Mdl) |
|
$ 57.05 | |||||
| 11 | WP9781235 | Clip, Stls Model (Replaces: 9781235) |
|
$ 11.96 | |||||
| WPW10182767 | Wire Tie, Manifold (Replaces: W10182767) |
|
$ 6.95 | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 19.55 | ||||||
| W11244557 | Screw (Replaces: 3196173) |
|
$ 13.61 | ||||||
| 3196696 | Clip, Harness |
|
- | ||||||
| WP3196174 | Screw, Grnd Harns (Replaces: 3196174) |
|
Immediately | $ 7.82 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 83.07 | |||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 55.47 | |||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 55.47 | |||||
| 511873 | Paint, Touch-up (1/2oz.) (white (porcelain (2 Oz.)) |
|
$ 49.29 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| W11447673 | Anti-tip Kit (Replaces: W10017440) |
|
$ 31.82 | ||||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
$ 57.04 | ||||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 89.66 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | ||||||
| 4396923 | Pan - Broiler |
|
Immediately | $ 57.82 | |||||
| W10174440 | Harness, Main (eoc Pyro) |
|
- | ||||||
| WPW10701462 | Harness, Wire (bake/broil) (Replaces: W10170250) |
|
$ 95.88 | ||||||
| W10170249 | Harness, Wire (cooktop Spark) |
|
$ 119.24 | ||||||
| W10170251 | Harness, Wire (ground) |
|
$ 21.71 | ||||||
| 3196896 | Clip-wire |
|
- | ||||||
| 3400964 | Clip, Wire |
|
$ 84.76 |
