SELECT A DIAGRAM

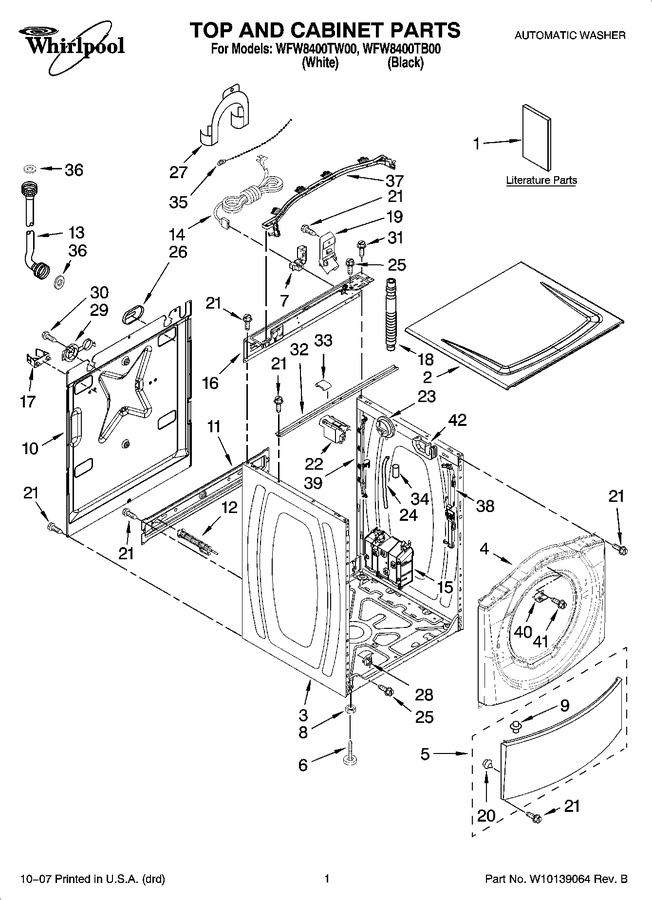

01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Pump And Motor Parts


06 - Tub And Basket Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10157937		Energy Guide (black Model)		Appelez-nous	-
1	8540316		Quick Start Guide		Appelez-nous	-
1	W10117768		Use & Care Guide		Appelez-nous	-
1	W10071760		Tech Sheet		Appelez-nous	-
1	W10128102		Energy Guide (white Model)		Appelez-nous	-
2	WPW10303994		Top (white)   (Replaces: 8540716)				$ 328.61
2	W10128645		Top (black)				$ 161.15
3	W10117456		Cabinet (black)				$ 199.43
3	W10410294		Cabinet (white)   (Replaces: 8540548)				$ 367.09
4	8540572		Panel, Front (white)		Appelez-nous	-
4	W10128427		Panel, Front (black)				$ 127.09
5	WP8540664		Toe Panel (white)   (Replaces: 8540813)				$ 377.11
5	W10112961		Toe Panel (black)   (Replaces: W10112981)				$ 165.82
6	W10862938		Foot, Leveling (4)   (Replaces: W10121677)			Immediately	$ 13.22
7	8182635		Strain Relief, Power Cord   (Replaces: W10110676)				$ 17.56
8	WP3359452		Nut, Lock (4)   (Replaces: 3359452)			Immediately	$ 7.55
9	8518891		Rivet (2)				$ 14.07
10	8540580		Panel, Rear				$ 192.15
11	W10189657		Brace, Transport   (Replaces: 8540581)				$ 91.64
12	W10763471		Bolt, Shipping (4)   (Replaces: 8540199)				$ 42.13
13	WP89503		Hose, Water Inlet (red Coupler)   (Replaces: 8571378)			Immediately	$ 24.09
13	WP89503		Hose, Water Inlet (blue Coupler)   (Replaces: 8571377)			Immediately	$ 24.09
14	W10121405		Cord, Power		Appelez-nous	-
15	WPW10163007		Motor Control Unit   (Replaces: 8540540)			Immediately	$ 381.07
16	W10161694		Brace, Rear   (Replaces: 8540974)				$ 119.42
17	8540093		Clamp, Tube Transportation				$ 6.72
18	WPW10114608		Hose, Drain   (Replaces: 8540011)			Immediately	$ 23.01
19	8540607		Retainer, Hose Outlet				$ 6.96
20	238614		Bumper (2)				$ 84.79
21	WP489442		Screw, 8-18 X 5/8   (Replaces: W10015090)			Immediately	$ 11.49
22	WPW10367632		Filter, Interference   (Replaces: 8540230)				$ 128.33
23	8540224		Switch, Pressure		Appelez-nous	-
24	W11252474		Hose, Pressure Switch   (Replaces: 8540294)			Immediately	$ 35.23
25	8540479		Screw, Grounding				$ 9.22
26	WP8540268		Cover, Transport   (Replaces: 8540268)				$ 7.30
27	WPW10280024		U-bend, Drain Hose   (Replaces: 8540021)				$ 83.51
28	WPW10085220		Microswitch (2)   (Replaces: W10085220)				$ 34.91
29	W11116978		Sleeve, Cord Support (2)   (Replaces: 8540728)				$ 23.94
30	8182201		Screw, 3 X 8 Mm   (Replaces: 8540727)				$ 14.08
31	8540329		Screw		Appelez-nous	-
32	WP8540720		Brace, Top (includes Item 33)   (Replaces: 8540720)				$ 85.84
33	WP8283273		Damper, Brace   (Replaces: 8283273)				$ 28.40
34	W11751592		Sleeve, Pressure Switch Hose   (Replaces: 2161302)			Immediately	$ 21.32
35	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 8.30
36	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 8.16
37	W10168548		Harness Channel, Top Rear   (Replaces: 8540290)		Appelez-nous	-
38	W10200785		Harness Channel, Side Front   (Replaces: 8540288)				$ 9.54
39	W10168547		Harness Channel, Side Rear   (Replaces: 8540289)				$ 19.56
40	8540669		Bracket, Console Retainer		Appelez-nous	-
41	WP98006631		Screw   (Replaces: 8533954)				$ 7.30
42	8540644		Bracket, Spring				$ 85.72
