Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10132001 Panel, Control Special Order $ 250.96

2 8574963 Knob, Control Special Order $ 26.78

3 8574920 User Interface Special Order $ 275.47

4 W10846488 Brace, Top Front   (Replaces: 8540558) Special Order $ 92.31

5 8540839 Channel, Water Special Order $ 27.81

6 WPW10525357 Microcomputer, Machine Control   (Replaces: W10217410) In-Stock Immediately $ 339.76

7 WP488729 Screw, 8-18 X 1/2   (Replaces: 3390647) In-Stock Immediately $ 8.28

8 W10201876 Harness, Wiring (upper Main) (includes Items 37 & 39 On Page 1) Special Order $ 270.68

9 WP8540282 Screw   (Replaces: 8540282) Special Order $ 12.14

10 WP489442 Screw, 8-18 X 5/8   (Replaces: W10015090) In-Stock Immediately $ 11.49


    View Diagram in Separate Window     Print Icon   Print Part List

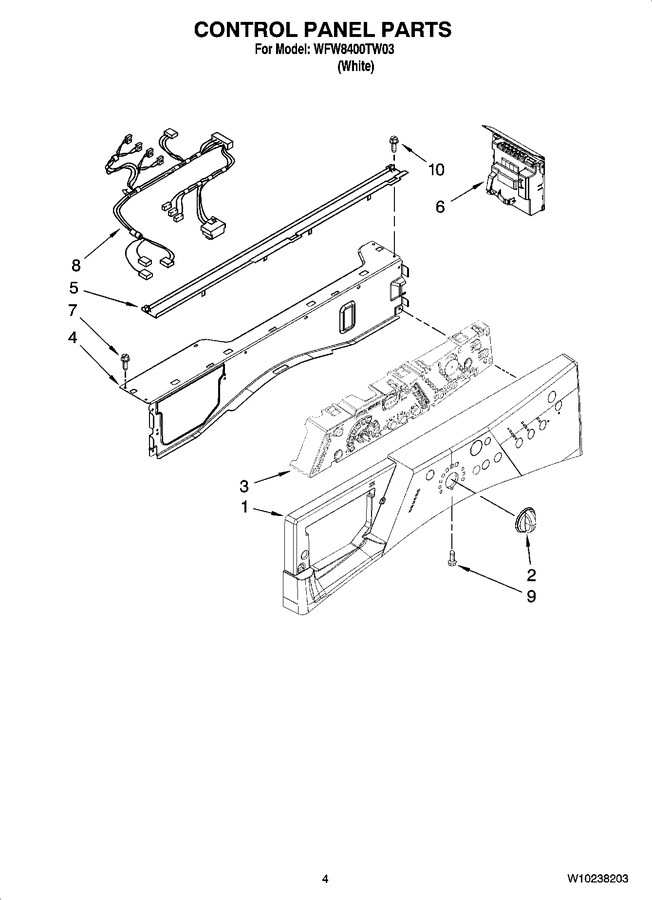

Diagram for WFW8400TW03
