SELECT A DIAGRAM

Diagram for 01 - Top And Cabinet Parts
01 - Top And Cabinet Parts

Diagram for 02 - Door And Latch Parts
02 - Door And Latch Parts

Diagram for 03 - Control Panel Parts
03 - Control Panel Parts

Diagram for 04 - Dispenser Parts
04 - Dispenser Parts

Diagram for 05 - Pump And Motor Parts
05 - Pump And Motor Parts

Diagram for 06 - Tub And Basket Parts, Optional Parts (not Included)
06 - Tub And Basket Parts, Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10111435 Bellow   (Replaces: 8540952) In-Stock Immediately $ 194.57

2 WP8540108 Clamp, Bellow   (Replaces: 8540108) In-Stock Immediately $ 25.64

3 WPW10253483 Lock, Door   (Replaces: 8540772) In-Stock Immediately $ 222.33

4 WP8540725 Screw   (Replaces: 8540725) Special Order $ 8.52

5 WP8540221 Hook, Door   (Replaces: 8540221) In-Stock Immediately $ 12.39

6 8540533 Trim Ring, Outer Door Special Order $ 47.64

7 W11032829 Clamp, Bellow (front)   (Replaces: 8540107) In-Stock Immediately $ 22.30

8 WP8540115 Clamp, Support   (Replaces: 8540115) Special Order $ 7.30

9 W11665946 Clamp, Glass (2)   (Replaces: 8540114) Special Order $ 21.90

10 W11230114 Screw   (Replaces: 8540513) Special Order $ 13.94

11 8540588 Frame, Door Front Assembly Special Order $ 236.89

12 WPW10388315 Glass, Door   (Replaces: 8540428) Special Order $ 345.28

13 WPW10138523 Door, Back Support   (Replaces: 8540891) Special Order $ 236.06

14 8540416 Hinge, Door Appelez-nous -
15 WP8181660 Screw   (Replaces: 8540284) Special Order $ 7.30

16 WP8540282 Screw   (Replaces: 8540282) Special Order $ 12.14


    View Diagram in Separate Window     Print Icon   Print Part List

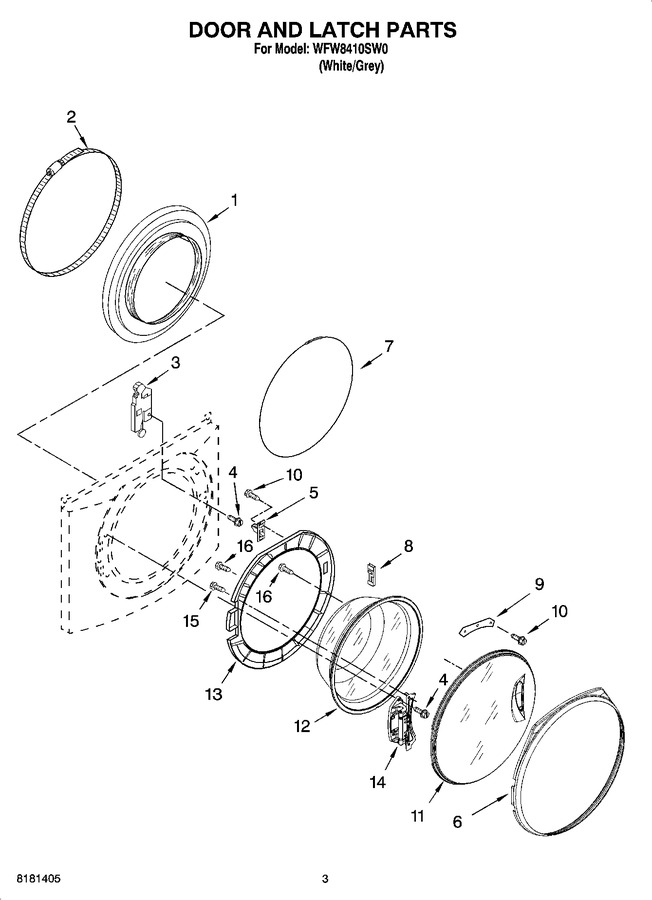

Diagram for WFW8410SW0
