Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8571908 Panel, Control Appelez-nous -
2 8574963 Knob, Control Special Order $ 26.78

3 WP8571919 User Interface   (Replaces: 8571919) Special Order $ 267.42

4 W10846488 Brace, Top Front   (Replaces: 8540558) Special Order $ 92.31

5 8540839 Channel, Water Special Order $ 27.81

6 W10063510 Microcomputer, Machine Control Appelez-nous -
7 WP488729 Screw, 8-18 X 1/2   (Replaces: 3390647) In-Stock Immediately $ 8.28

8 8540882 Harness, Wiring (main) Appelez-nous -
9 WP8540282 Screw   (Replaces: 8540282) Special Order $ 12.14

10 WP489442 Screw, 8-18 X 5/8   (Replaces: W10015090) In-Stock Immediately $ 11.49


    View Diagram in Separate Window     Print Icon   Print Part List

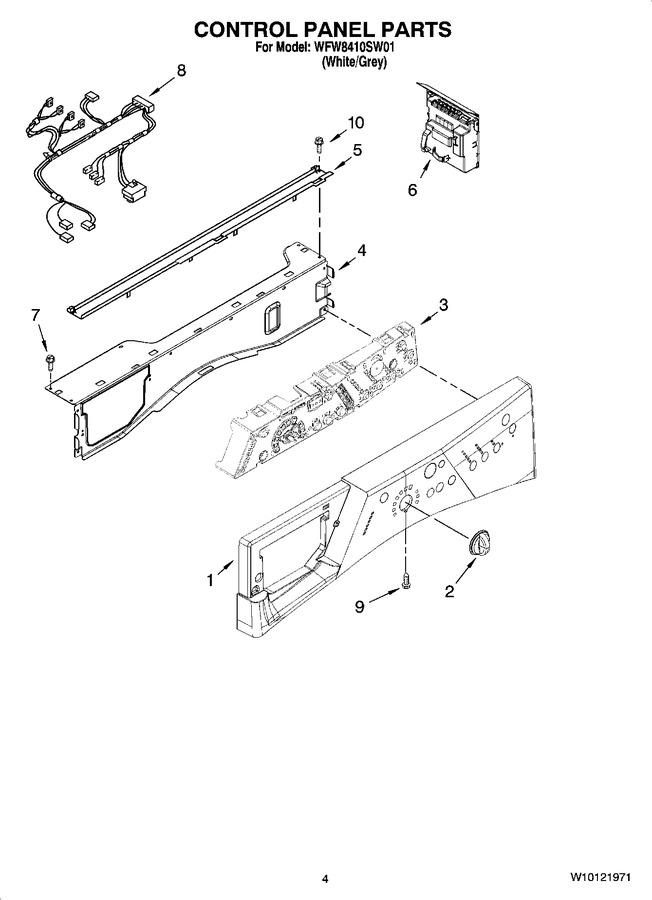

Diagram for WFW8410SW01
