Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10099594 Panel, Control Appelez-nous -
2 8574963 Knob, Control Special Order $ 26.78

3 WP8571919 User Interface   (Replaces: 8571919) Special Order $ 267.42

4 W10846488 Brace, Top Front   (Replaces: W10161692) Special Order $ 92.31

5 8540839 Channel, Water Special Order $ 27.81

6 W10217411 Microcomputer, Machine Control Appelez-nous -
7 WP488729 Screw, 8-18 X 1/2   (Replaces: 3390647) In-Stock Immediately $ 8.28

8 W10201875 Harness, Wiring (upper Main) (includes Items 37 & 39 On Page 1) Special Order $ 265.57

9 WP8540282 Screw   (Replaces: 8540282) Special Order $ 12.14

10 WP489442 Screw, 8-18 X 5/8   (Replaces: W10015090) In-Stock Immediately $ 11.49


    View Diagram in Separate Window     Print Icon   Print Part List

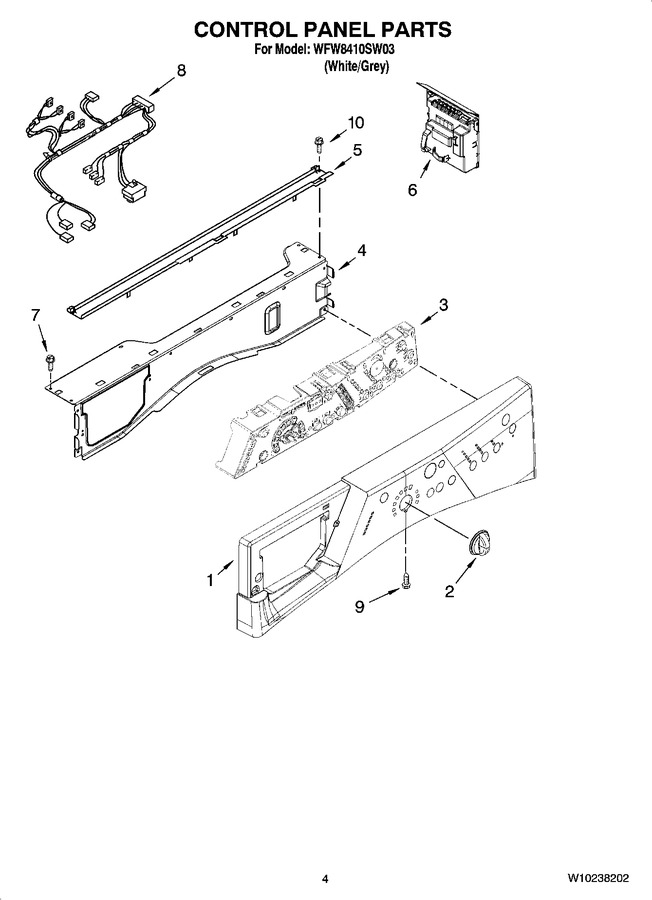

Diagram for WFW8410SW03
