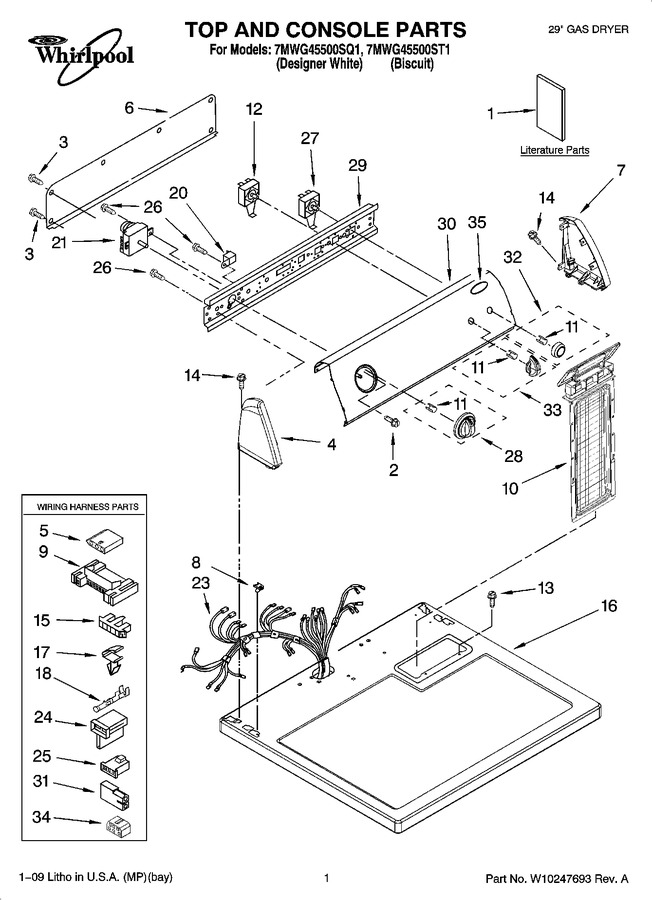

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8564241		Installation Instructions		Appelez-nous	-
1	W10185979		Wiring Diagram		Appelez-nous	-
1	8565897		Use And Care Guide		Appelez-nous	-
1	8579563		Sheet, Cycle Feature		Appelez-nous	-
2	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
4	8271365		Cap, End (l.h.) (white)		Appelez-nous	-
4	8271368		Cap, End (l.h.) (biscuit)		Appelez-nous	-
5	3936144		Connector				$ 21.22
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
7	8271359		Cap, End (r.h.) (white)		Appelez-nous	-
7	8271362		Cap, End (r.h.) (biscuit)		Appelez-nous	-
8	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
9	3395683		Housing, Connector (motor)			Immediately	$ 54.45
10	W10874409		Screen, Lint (white)   (Replaces: 8557861)			Immediately	$ 67.01
10	WP8557862		Screen, Lint (biscuit)   (Replaces: 8557862)				$ 135.89
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	3405152		Switch, Gaurd				$ 131.07
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
15	3397269		Connector, Timer				$ 25.55
16	8557931		Top (biscuit)		Appelez-nous	-
16	8557930		Top (white)		Appelez-nous	-
17	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
18	WP94614		Terminal   (Replaces: 94614)				$ 8.05
20	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
21	WPW10185969		Timer Assembly, 60 Hz.   (Replaces: W10185969)				$ 334.18
23	W10111050		Harness, Wiring		Appelez-nous	-
24	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
25	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
26	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
27	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
28	8566061		Timer Knob Assembly (white)				$ 26.93
28	8566064		Timer Knob Assembly (biscuit)		Appelez-nous	-
29	8544895		Bracket, Control		Appelez-nous	-
30	8543036		Panel, Control (biscuit)		Appelez-nous	-
30	8543035		Panel, Control (white)		Appelez-nous	-
31	717252		Receptacle, Latching (2-way)		Appelez-nous	-
32	WP8566065		Knob, Push-to-start (white)   (Replaces: 8566065)				$ 55.30
32	8566068		Knob, Push-to-start (biscuit)		Appelez-nous	-
33	8565944		Knob, Control (white)				$ 25.10
33	8565947		Knob, Control (biscuit)				$ 23.66
34	3347243		Connector 6-circuit		Appelez-nous	-
35	3400985		Medallion		Appelez-nous	-
