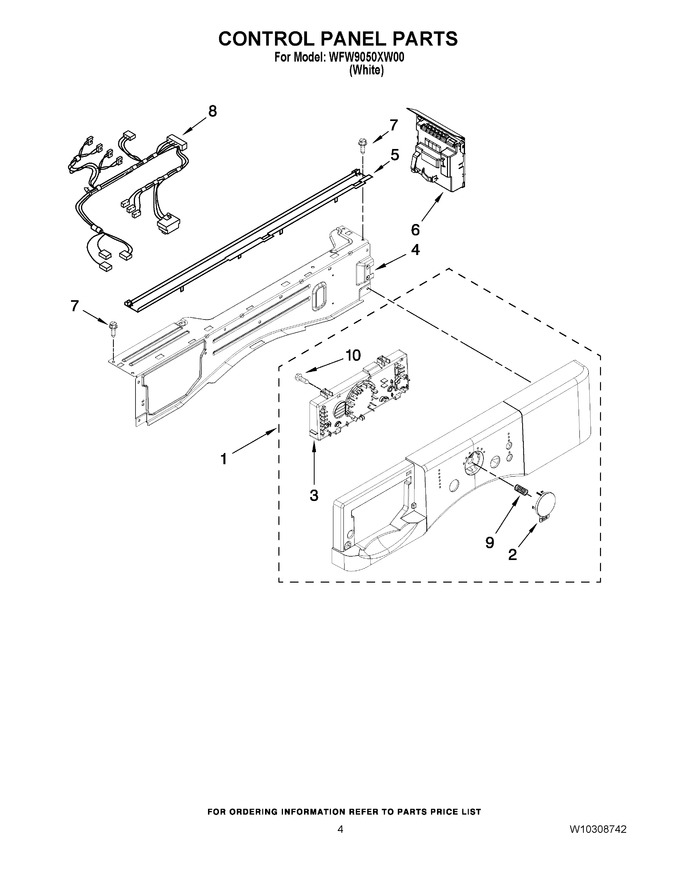

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10303536 | Console |
|
- | |||||
| 2 | W10212800 | Button, Cycle |
|
$ 81.62 | |||||
| 3 | W10212764 | User Interface |
|
$ 244.23 | |||||
| 4 | W10846488 | Brace, Top Front (Replaces: W10240776) |
|
$ 92.31 | |||||
| 5 | 8540839 | Channel, Water |
|
$ 27.81 | |||||
| 6 | WPW10525371 | Microcomputer, Machine Control (Replaces: W10306715) |
|
$ 343.78 | |||||
| 7 | WP489442 | Screw, 8-18 X 5/8 (Replaces: W10015090) |
|
Immediately | $ 11.49 | ||||
| 8 | WPW10269290 | Harness, Wiring (upper Main) (includes Item 39 On Page 1) (Replaces: W10269290) |
|
Immediately | $ 236.58 | ||||
| 9 | W10215807 | Spring, Cycle Button |
|
$ 22.02 | |||||
| 10 | W10006580 | Screw, M3-1.12 X12 |
|
- |
