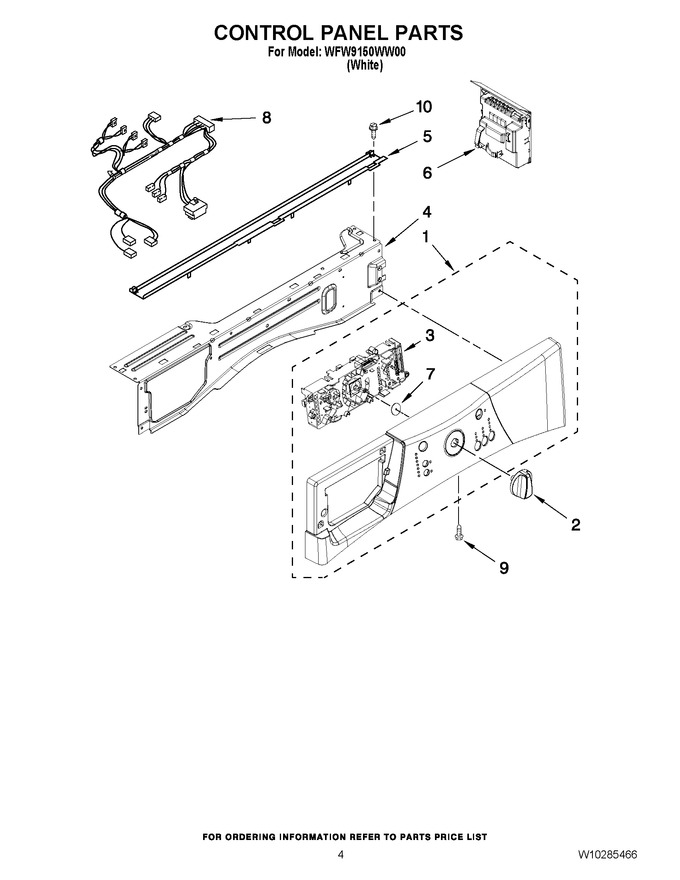

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10325312 | Console |
|
$ 249.00 | |||||
| 2 | WPW10236098 | Knob, Control (Replaces: W10236098) |
|
$ 61.27 | |||||
| 3 | W10212765 | User Interface |
|
$ 245.24 | |||||
| 4 | W10846488 | Brace, Top Front (Replaces: W10240776) |
|
$ 92.31 | |||||
| 5 | 8540839 | Channel, Water |
|
$ 27.81 | |||||
| 6 | WPW10525361 | Microcomputer, Machine Control (Replaces: W10299978) |
|
$ 330.17 | |||||
| 7 | 8572039 | Seal, User Interface |
|
- | |||||
| 8 | W10232994 | Harness, Wiring (upper Main) (includes Item 39 On Page 1) |
|
$ 110.59 | |||||
| 9 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 12.14 | |||||
| 10 | WP489442 | Screw, 8-18 X 5/8 (Replaces: W10015090) |
|
Immediately | $ 11.49 |
