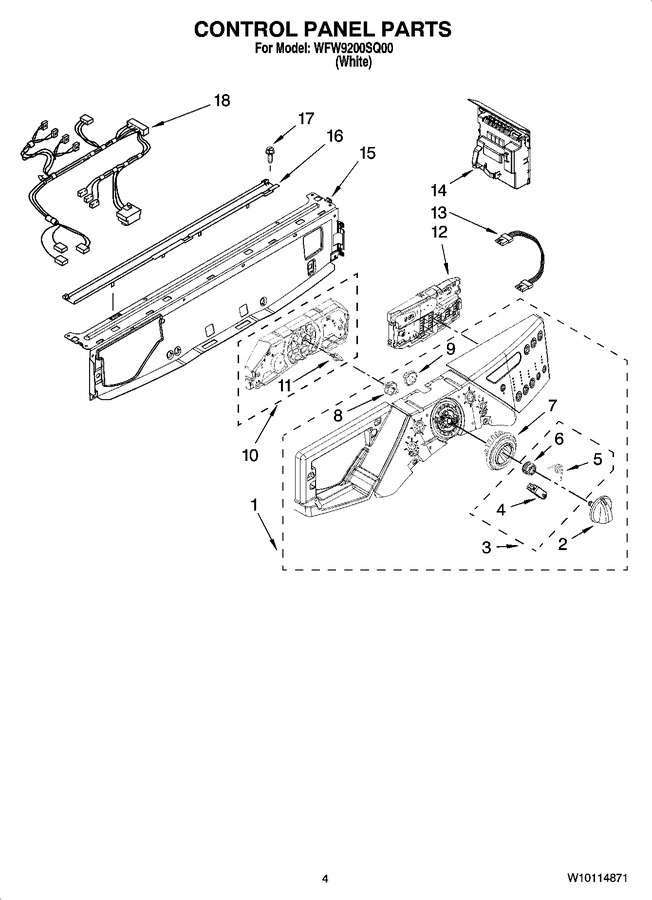

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8183228		Panel, Control				$ 258.42
2	W10131368		Knob, Control (includes Item 9)				$ 24.28
3	W10133927		Wheel, Detent Kit (includes Item 9)				$ 145.30
4	W10131661		Wheel, Rast (2) (service In Kit Only)		Appelez-nous	-
5	W10131377		Spring, Knob (2) (service In Kit Only)		Appelez-nous	-
6	W10131378		Wheel, Detent (service In Kit Only)		Appelez-nous	-
7	W10131376		Ring, Knob Light (includes Item 9)		Appelez-nous	-
8	W10131381		Wheel, Encoder				$ 84.58
9	W10131382		Retainer, Snap		Appelez-nous	-
10	8183260		User Interface, Center		Appelez-nous	-
11	8183177		Adapter, Encoder Wheel		Appelez-nous	-
12	8183261		User Interface, Right		Appelez-nous	-
13	8183254		Harness, Wiring (user Interface)				$ 185.57
14	8183258		Microcomputer, Machine Control				$ 319.27
15	W10059240		Brace, Front Top   (Replaces: 8183203)				$ 204.59
16	WP8183204		Channel, Water   (Replaces: 8183204)				$ 171.96
17	WP488729		Screw   (Replaces: 8181756)			Immediately	$ 8.28
18	8183266		Harness, Wiring (upper Main)				$ 244.31
