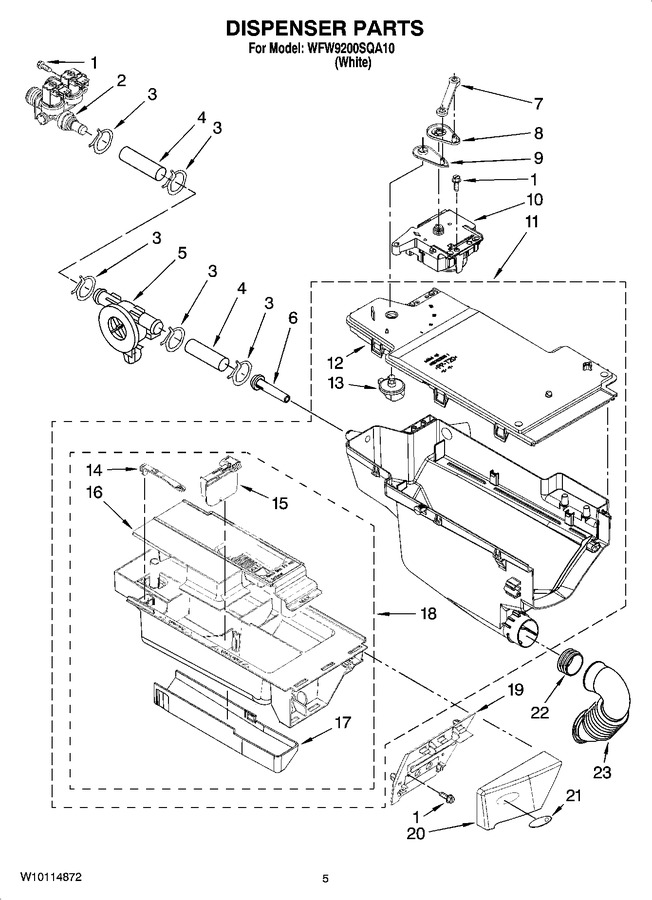

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8540282		Screw   (Replaces: 8540282)				$ 12.14
2	WP8540751		Valve, Water Inlet   (Replaces: 8540751)			Immediately	$ 76.65
3	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 8.82
4	W10003220		Hose, Flowmeter And Valve		Appelez-nous	-
5	WPW10110225		Flowmeter   (Replaces: W10110225)			Immediately	$ 109.03
6	WP8183181		Nozzle, Inlet   (Replaces: 8540042)				$ 94.82
7	WP8183183		Lever, Connection   (Replaces: W10003830)				$ 94.74
8	WP8183184		Cam, Actuator   (Replaces: W10003190)				$ 94.74
9	WPW10161052		Lever, Water Distribution   (Replaces: W10003180)			Immediately	$ 7.55
10	WPW10352973		Actuator   (Replaces: W10065190)			Immediately	$ 134.69
11	W10074160		Dispenser, Complete (includes Item 9)		Appelez-nous	-
12	W10005080		Plate, Distribution		Appelez-nous	-
13	WP8181712		Nozzle, Distribution   (Replaces: W10003110)				$ 93.57
14	W10003170		Hook, Drawer		Appelez-nous	-
15	WPW10121596		Separator, With Selection Slider   (Replaces: W10015200)				$ 76.72
16	W10003150		Syphon, Bleach/softener		Appelez-nous	-
17	W10003140		Cover, Detergent Drawer				$ 89.91
18	WPW10015190		Drawer, Detergent (complete)   (Replaces: W10015190)				$ 122.86
19	WPW10156617		Bracket, Handle Fixation   (Replaces: 8183238)				$ 108.32
20	8183234		Handle, Drawer (includes Items 19 & 21)		Appelez-nous	-
21	8183253		Medallion				$ 27.06
22	WP8181747		Seal   (Replaces: W10003360)			Immediately	$ 27.33
23	WPW10005300		Tube, Dispenser To Bellow   (Replaces: W10005300)			Immediately	$ 22.25

    View Diagram in Separate Window       Print Part List
