SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

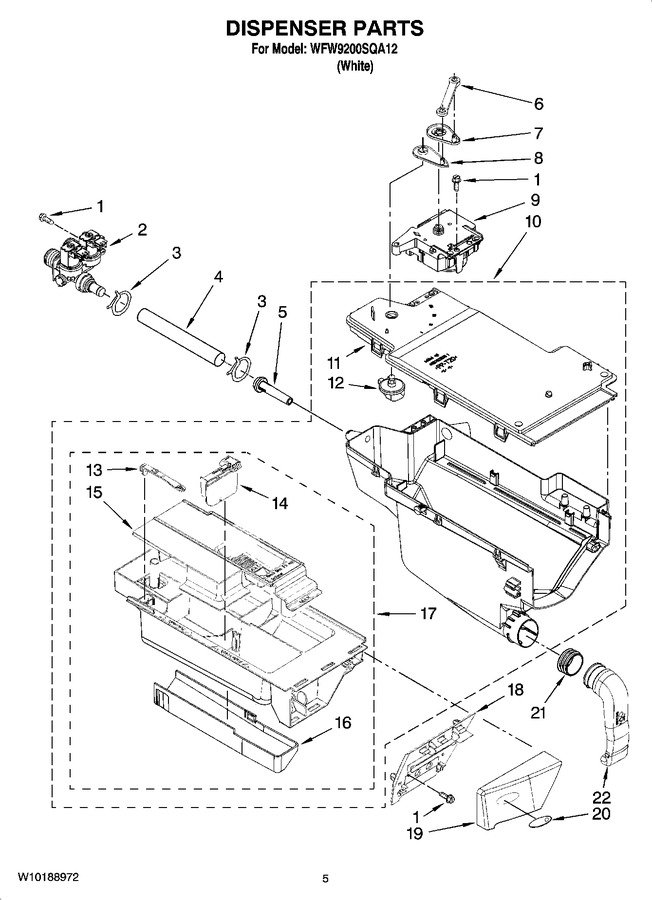

1	WP8540282		Screw   (Replaces: 8540282)				$ 12.14
2	WP8540751		Valve, Water Inlet   (Replaces: 8540751)			Immediately	$ 76.65
3	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 8.82
4	W10803052		Hose - Valve/ Dispenser   (Replaces: 8540065)				$ 14.40
5	WP8183181		Nozzle, Inlet   (Replaces: 8540042)				$ 94.82
6	WP8183183		Lever, Connection   (Replaces: W10003830)				$ 94.74
7	WP8183184		Cam, Actuator   (Replaces: W10003190)				$ 94.74
8	WPW10161052		Lever, Water Distribution   (Replaces: W10003180)			Immediately	$ 7.55
9	WPW10352973		Actuator   (Replaces: W10163975)			Immediately	$ 134.69
10	W10074160		Dispenser, Complete (includes Item 8)		Appelez-nous	-
11	W10005080		Plate, Distribution		Appelez-nous	-
12	WP8181712		Nozzle, Distribution   (Replaces: W10003110)				$ 93.57
13	W10003170		Hook, Drawer		Appelez-nous	-
14	WPW10121596		Separator, With Selection Slider   (Replaces: W10015200)				$ 76.72
15	W10003150		Syphon, Bleach/softener		Appelez-nous	-
16	W10003140		Cover, Detergent Drawer				$ 89.91
17	WPW10015190		Drawer, Detergent (complete)   (Replaces: W10015190)				$ 122.86
18	WPW10156617		Bracket, Handle Fixation   (Replaces: W10156617)				$ 108.32
19	8183234		Handle, Drawer (includes Items 18 & 20)		Appelez-nous	-
20	8183253		Medallion				$ 27.06
21	WP8181747		Seal   (Replaces: W10003360)			Immediately	$ 27.33
22	WPW10005300		Tube, Dispenser To Bellow   (Replaces: W10005300)			Immediately	$ 22.25
