01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts, Optional Parts (not Included)

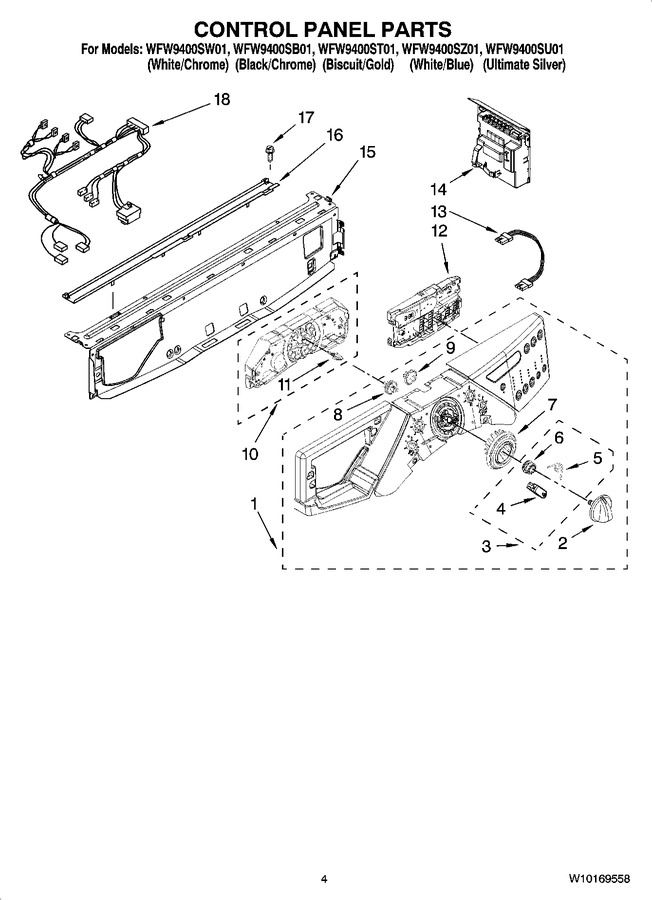

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8183230		Panel, Control (black)		Appelez-nous	-
1	8183231		Panel, Control (biscuit)		Appelez-nous	-
1	8183232		Panel, Control (white/blue)		Appelez-nous	-
1	8183233		Panel, Control (ultimate Silver)		Appelez-nous	-
1	8183229		Panel, Control (white)				$ 230.25
2	W10131371		Knob, Control (includes Item 9) (ultimate Silver)				$ 37.02
2	W10131369		Knob, Control (includes Item 9) (white)				$ 24.15
2	W10131370		Knob, Control (includes Item 9) (black)		Appelez-nous	-
2	W10131372		Knob, Control (includes Item 9) (biscuit)		Appelez-nous	-
2	W10131373		Knob, Control (includes Item 9) (blue)				$ 37.02
3	W10133927		Wheel, Detent Kit (includes Item 9)				$ 145.30
4	W10131661		Wheel, Rast (2) (service In Kit Only)		Appelez-nous	-
5	W10131377		Spring, Knob (2) (service In Kit Only)		Appelez-nous	-
6	W10131378		Wheel, Detent (service In Kit Only)		Appelez-nous	-
7	W10131376		Ring, Knob Light (includes Item 9)		Appelez-nous	-
8	W10131381		Wheel, Encoder				$ 84.58
9	W10131382		Retainer, Snap		Appelez-nous	-
10	W10164402		User Interface, Center				$ 271.19
11	8183177		Adapter, Encoder Wheel		Appelez-nous	-
12	W10168598		User Interface, Right		Appelez-nous	-
13	8183254		Harness, Wiring (user Interface)   (Replaces: W10168511)				$ 185.57
14	8183259		Microcomputer, Machine Control				$ 319.26
15	W10059240		Brace, Front Top   (Replaces: 8183203)				$ 204.59
16	WP8183204		Channel, Water   (Replaces: 8183204)				$ 171.96
17	WP488729		Screw   (Replaces: 8181756)			Immediately	$ 8.28
18	8183266		Harness, Wiring (upper Main)				$ 244.31
