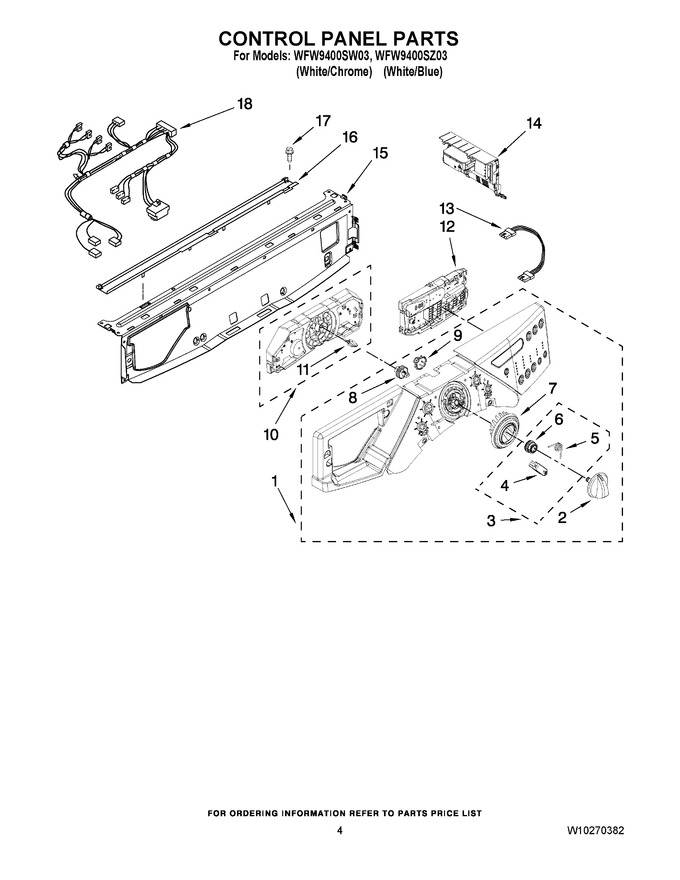

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8183232		Panel, Control (white/blue)		Appelez-nous	-
1	8183229		Panel, Control (white)				$ 230.25
2	W10131369		Knob, Control (includes Item 9) (white)				$ 24.15
2	W10131373		Knob, Control (includes Item 9) (blue)				$ 37.02
3	W10133927		Wheel, Detent Kit (includes Item 9)				$ 145.30
4	W10131661		Wheel, Rast (2) (service In Kit Only)		Appelez-nous	-
5	W10131377		Spring, Knob (2) (service In Kit Only)		Appelez-nous	-
6	W10131378		Wheel, Detent (service In Kit Only)		Appelez-nous	-
7	W10131376		Ring, Knob Light (includes Item 9)		Appelez-nous	-
8	W10131381		Wheel, Encoder				$ 80.55
9	W10131382		Retainer, Snap		Appelez-nous	-
10	W10164402		User Interface, Center				$ 271.19
11	8183177		Adapter, Encoder Wheel		Appelez-nous	-
12	W10191964		User Interface, Right		Appelez-nous	-
13	8183254		Harness, Wiring (user Interface)   (Replaces: W10168511)				$ 176.73
14	W10271606		Microcomputer, Machine Control				$ 311.47
15	W10059240		Brace, Front Top   (Replaces: 8183203)				$ 194.85
16	WP8183204		Channel, Water   (Replaces: 8183204)				$ 171.96
17	WP488729		Screw   (Replaces: 8181756)			Immediately	$ 7.79
18	W10271603		Harness, Wiring (upper Main)				$ 221.08
