SELECT A DIAGRAM

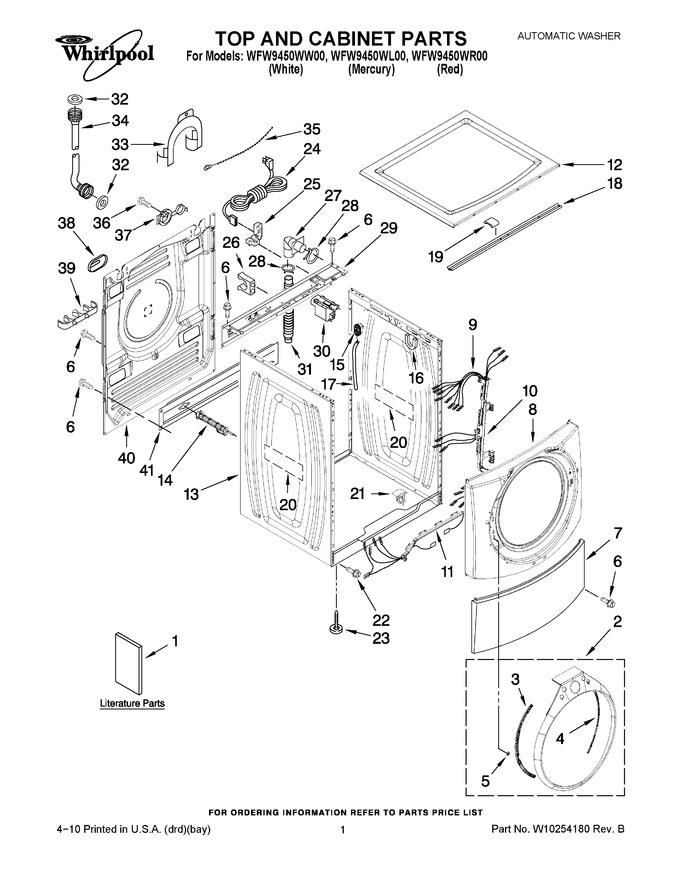

01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10254043		Use & Care Guide		Appelez-nous	-
1	W10217131		Tech Sheet		Appelez-nous	-
1	W10252488		Energy Guide		Appelez-nous	-
2	W10252106		Trim Ring, Teardrop Assembly (white)		Appelez-nous	-
2	W10252100		Trim Ring, Teardrop Assembly (mercury)		Appelez-nous	-
2	W10252094		Trim Ring, Teardrop Assembly (red)		Appelez-nous	-
3	W10015770		Bracket, Trim Fixation (left)		Appelez-nous	-
4	W10015780		Bracket, Trim Fixation (right)		Appelez-nous	-
5	WP8183210		Clip, Trim   (Replaces: W10029650)				$ 6.95
6	WP489442		Screw, 8-18 X 5/8   (Replaces: W10015090)			Immediately	$ 10.94
7	W10252795		Toe Panel (mercury)				$ 87.40
7	W10245126		Toe Panel (red)				$ 129.63
7	W10003640		Toe Panel (white)		Appelez-nous	-
8	W10252793		Panel, Front (mercury)		Appelez-nous	-
8	W10015580		Panel, Front (white)		Appelez-nous	-
8	W10252788		Panel, Front (red)		Appelez-nous	-
9	W10221500		Harness, Wiring (lower Main) (includes Items 10 & 11)				$ 264.14
10	W10216383		Channel, Harness (side)				$ 135.03
11	W10131757		Channel, Harness (bottom)		Appelez-nous	-
12	W10003900		Top (white)		Appelez-nous	-
12	W10252789		Top (red)		Appelez-nous	-
12	W10252796		Top (mercury)		Appelez-nous	-
13	W10171708		Cabinet (white)		Appelez-nous	-
13	W10252826		Cabinet (mercury)				$ 305.50
13	W10252865		Cabinet (red)				$ 290.13
14	W10190007		Bolt, Shipping (lower (2))		Appelez-nous	-
14	W10289554A		Bolt, Shipping (upper (2))   (Replaces: W10190006)				$ 64.96
15	W11417623		Switch, Pressure   (Replaces: W10239066)			Immediately	$ 64.77
16	WP8181763		Bracket, Spring   (Replaces: W10008890)				$ 79.99
17	WPW10004260		Hose, Pressure Switch   (Replaces: W10004260)			Immediately	$ 7.00
18	WP8540720		Brace, Top (includes Item 19)   (Replaces: 8540720)				$ 81.75
19	WP8283273		Damper, Brace   (Replaces: 8283273)				$ 27.05
20	3976348		Absorber, Sound				$ 37.92
21	WPW10085220		Microswitch (2)   (Replaces: 8540210)				$ 33.25
22	8540479		Screw, Gounding				$ 8.78
23	W10862938		Foot, Leveling (4)   (Replaces: W10064810)			Immediately	$ 12.59
24	WP8183009		Cord, Power   (Replaces: W10205498)				$ 147.66
25	8182635		Strain Relief, Power Cord   (Replaces: W10110676)				$ 16.72
26	W10022290		Clip, Outer Hose Holder		Appelez-nous	-
27	W11757170		Connector, Drain Hose   (Replaces: W10003260)			Immediately	$ 6.39
28	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
29	W10110677		Brace, Rear				$ 33.11
30	WPW10367632		Filter, Interference   (Replaces: 8540230)				$ 122.22
31	WP8181737		Hose, Drain (outer)   (Replaces: W10003280)			Immediately	$ 62.50
32	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 7.70
33	WPW10280024		U-bend, Drain Hose   (Replaces: 8540021)				$ 79.53
34	WP89503		Hose, Water Inlet (cold Water)   (Replaces: W10194208)			Immediately	$ 24.09
34	WP89503		Hose, Water Inlet (hot Water)   (Replaces: 8571378)			Immediately	$ 24.09
35	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 7.90
36	8182201		Screw, 3 X 8 Mm   (Replaces: 8540727)				$ 13.41
37	W11116978		Sleeve, Cord Support (2)   (Replaces: 8540728)				$ 22.80
38	WP8540268		Cover, Transport   (Replaces: 8540268)				$ 6.95
39	W10003270		Clip, Outer Hose Holder		Appelez-nous	-
40	W10165713		Panel, Rear		Appelez-nous	-
41	WPW10003040		Brace, Transport (lower)   (Replaces: W10003040)				$ 96.77
41	W10165710		Brace, Transport (upper)		Appelez-nous	-
