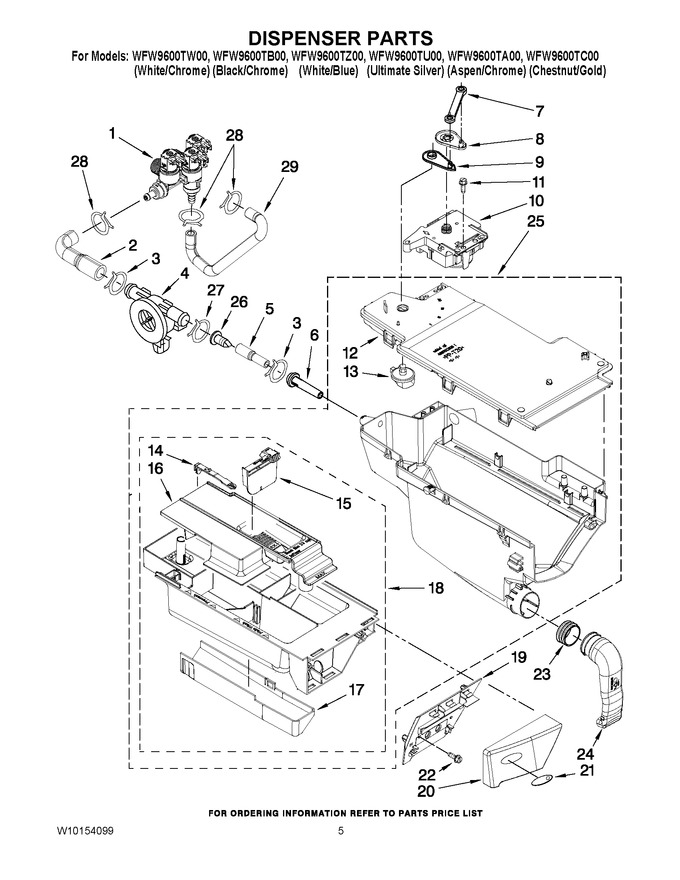

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10156253		Valve, Inlet   (Replaces: W10156253)			Immediately	$ 222.13
2	8183182		Hose, Flowmeter (l-shaped)				$ 39.45
3	WP489503		Clamp   (Replaces: 8181751)			Immediately	$ 10.75
4	WPW10110225		Flowmeter   (Replaces: 8181696)			Immediately	$ 109.03
5	W10156255		Hose, Duckbill/ Inlet Nozzle		Appelez-nous	-
6	WP8183181		Nozzle, Inlet   (Replaces: 8183181)				$ 90.30
7	WP8183183		Lever, Water Distribution   (Replaces: 8183183)				$ 90.23
8	WP8183184		Cam, Actuator   (Replaces: 8183184)				$ 90.23
9	WPW10161052		Lever, Connection   (Replaces: W10161052)			Immediately	$ 7.19
10	WPW10352973		Actuator   (Replaces: 8183186)			Immediately	$ 134.69
11	WP8540282		Screw, Actuator   (Replaces: 8181661)				$ 11.56
12	W10164400		Plate, Distribution				$ 27.70
13	WP8181712		Nozzle, Distribution   (Replaces: 8181712)				$ 89.11
14	8181721		Hook, Drawer				$ 37.02
15	WPW10121596		Separator, With Selection Slider   (Replaces: W10121596)				$ 73.07
16	W10157775		Siphon, Bleach/softener				$ 55.65
17	W10003140		Cover, Detergent Drawer   (Replaces: 8183179)				$ 85.63
18	W10157760		Drawer, Detergent (complete)				$ 51.72
19	WPW10156617		Bracket, Handle Fixation   (Replaces: W10156617)				$ 103.16
20	W10156620		Handle, Drawer (includes Items 19 & 21) (ultimate Silver)		Appelez-nous	-
20	W10156619		Handle, Drawer (includes Items 19 & 21) (black)		Appelez-nous	-
20	W10156618		Handle, Drawer (includes Items 19 & 21) (white)		Appelez-nous	-
20	W10156621		Handle, Drawer (includes Items 19 & 21) (aspen)		Appelez-nous	-
20	W10156622		Handle, Drawer (includes Items 19 & 21) (chestnut)		Appelez-nous	-
21	8183253		Medallion				$ 27.06
22	W11230114		Screw   (Replaces: 8182214)				$ 13.28
23	WP8181747		Seal   (Replaces: 8181747)			Immediately	$ 26.03
24	WPW10005300		Tube, Dispenser To Bellow   (Replaces: 8181718)			Immediately	$ 21.19
25	W10157759		Dispenser, Complete (includes Item 9)				$ 127.50
26	W10156256		Check Valve, Duckbill		Appelez-nous	-
27	WP489503		Clamp, Hose   (Replaces: W10156064)			Immediately	$ 10.75
28	WP489503		Clamp, Hose   (Replaces: 8181754)			Immediately	$ 10.75
29	W10156130		Hose, Inlet Valve To Steamer Siphon				$ 46.31
