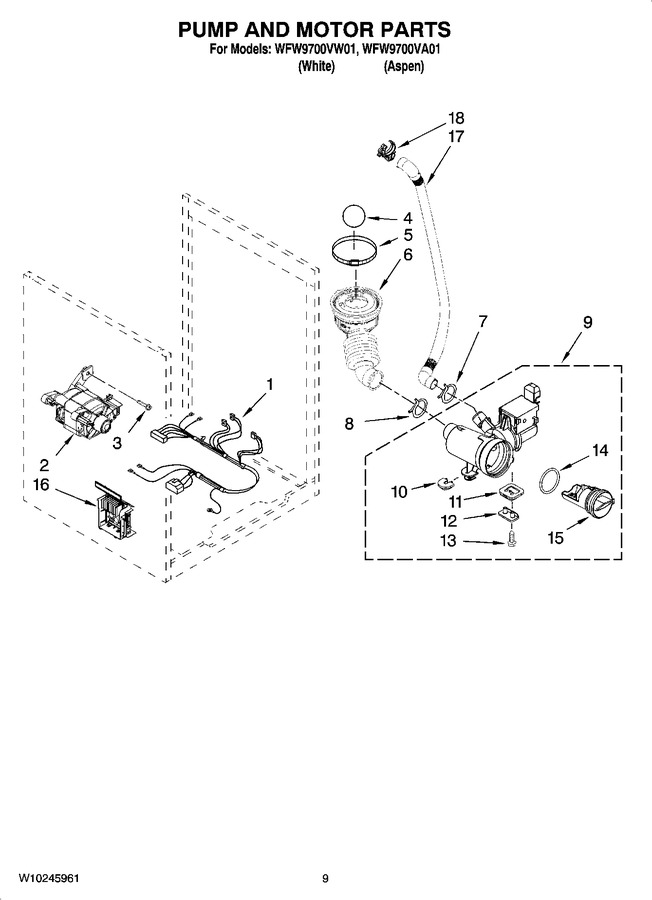

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10004420		Harness, Motor		Appelez-nous	-
2	WPW10140583		Motor, Drive   (Replaces: W10140583)				$ 350.43
3	8540134		Bolt, Motor				$ 13.45
4	W10121657		Ball   (Replaces: W10003330)				$ 20.03
5	WP696392		Clamp   (Replaces: 8540008)				$ 8.12
6	WPW10467168		Hose, Tub To Pump   (Replaces: W10003240)			Immediately	$ 38.31
7	WP356138		Clamp, Drain Hose   (Replaces: 356138)			Immediately	$ 8.52
8	WP616099		Clamp, Hose   (Replaces: 370448)			Immediately	$ 7.81
9	WPW10730972		Pump (complete)   (Replaces: W10130913)			Immediately	$ 177.38
10	W10034820		Foot, Rubber (slider)				$ 12.79
11	W10034830		Foot, Rubber (lock)		Appelez-nous	-
12	8540033		Cap, Lock Foot				$ 17.98
13	8533964		Screw, 10-16 X 1.25 (2)				$ 12.00
14	WPW10730972		Seal, Filter Cap   (Replaces: 8540025)			Immediately	$ 177.38
15	WPW10730972		Filter Assembly (includes Item 14)   (Replaces: 8540996)			Immediately	$ 177.38
16	WPW10384846		Motor Control Unit   (Replaces: W10015480)				$ 367.47
17	WPW10003250		Hose, Drain (inner)   (Replaces: W10003250)			Immediately	$ 34.59
18	8182209		Retainer, Drain Hose   (Replaces: W10003290)				$ 20.57
	W10157756		Paint, Touch-up (1/2oz.) (aspen)				$ 14.94
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	350938		Paint, Pressurized Spray(12 Oz.) (primer, Gray)		Appelez-nous	-
	W10135699		Affresh Odor Remover			Immediately	$ 20.92
	285863		Drain Extension			Immediately	$ 32.43
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
