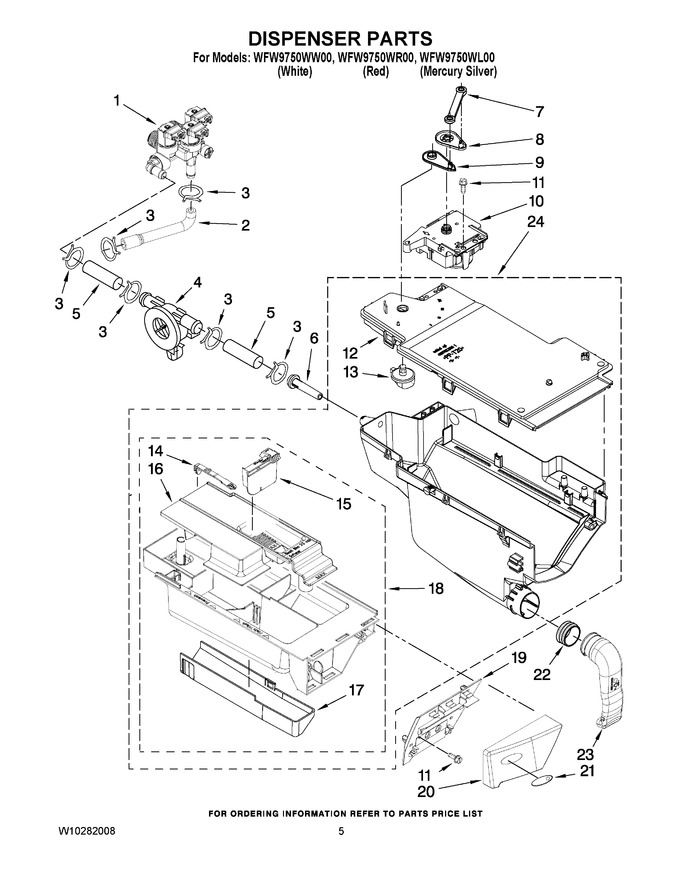

04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10247306		Valve, Inlet   (Replaces: W10247306)			Immediately	$ 167.78
2	W10247308		Hose, Inlet Valve To Vent Pipe		Appelez-nous	-
3	WP489503		Clamp, Hose (6)   (Replaces: 8181751)			Immediately	$ 10.75
4	WPW10110225		Flowmeter   (Replaces: 8181696)			Immediately	$ 109.03
5	W10275565		Hose, Inlet Valve To Flowmeter (2)		Appelez-nous	-
6	WP8183181		Nozzle, Inlet   (Replaces: 8183181)				$ 90.30
7	WP8183183		Lever, Water Distribution   (Replaces: 8183183)				$ 90.23
8	WP8183184		Cam, Actuator   (Replaces: 8183184)				$ 90.23
9	WPW10161052		Lever, Connection   (Replaces: W10161052)			Immediately	$ 7.19
10	WPW10352973		Actuator   (Replaces: W10283468)			Immediately	$ 134.69
11	WP8540282		Screw   (Replaces: 8181661)				$ 11.56
12	W10164400		Plate, Distribution				$ 27.70
13	WP8181712		Nozzle, Distribution   (Replaces: 8181712)				$ 89.11
14	8181721		Hook, Drawer				$ 37.02
15	WPW10121596		Separator, With Selection Slider   (Replaces: W10121596)				$ 73.07
16	W10157775		Siphon, Bleach/softener				$ 55.65
17	W10003140		Cover, Detergent Drawer   (Replaces: 8183179)				$ 85.63
18	W10157760		Drawer, Detergent (complete)				$ 51.72
19	WPW10156617		Bracket, Handle Fixation   (Replaces: W10156617)				$ 103.16
20	W10283376		Handle, Drawer (includes Items 19 & 21) (white)		Appelez-nous	-
20	W10283426		Handle, Drawer (includes Items 19 & 21) (red)		Appelez-nous	-
20	W10283428		Handle, Drawer (includes Items 19 & 21) (mercury Silver)		Appelez-nous	-
21	8183253		Medallion				$ 27.06
22	WP8181747		Seal   (Replaces: 8181747)			Immediately	$ 26.03
23	WPW10005300		Tube, Dispenser To Bellow   (Replaces: 8181718)			Immediately	$ 21.19
24	W10157759		Dispenser, Complete (includes Item 9)				$ 127.50
