SELECT A DIAGRAM

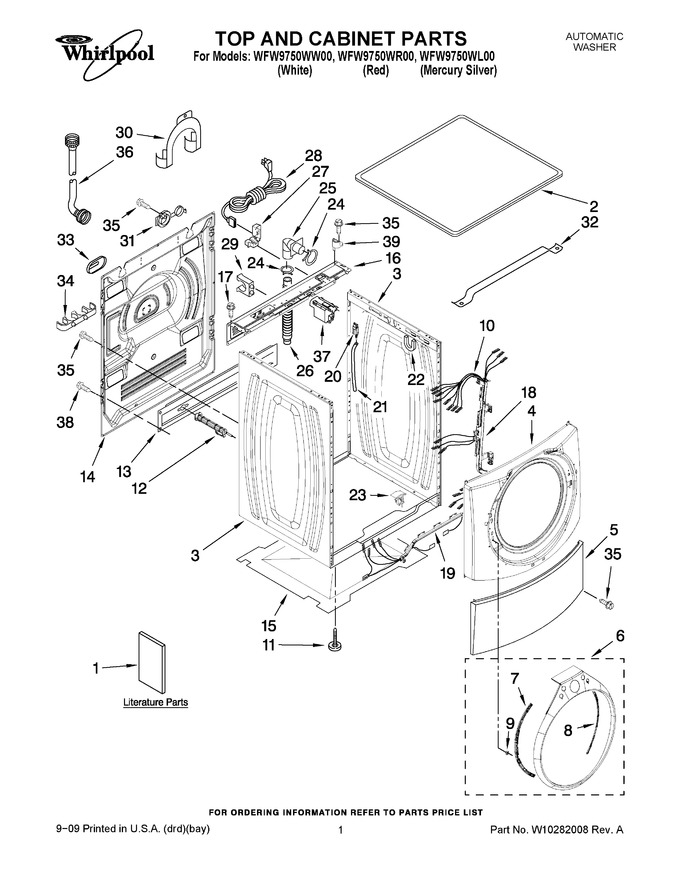

01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10296132		Use & Care Guide		Appelez-nous	-
1	W10289424		Energy Guide		Appelez-nous	-
1	W10250503		Tech Sheet		Appelez-nous	-
2	8181799		Top (white)		Appelez-nous	-
2	W10289411		Top (red)				$ 159.97
2	W10289419		Top (mercury Silver)				$ 135.78
3	W10288155		Cabinet (white)		Appelez-nous	-
3	W10288157		Cabinet (red)		Appelez-nous	-
3	W10288158		Cabinet (mercury Silver)		Appelez-nous	-
4	8183151		Panel, Front (white)		Appelez-nous	-
4	W10289421		Panel, Front (mercury Silver)				$ 204.58
4	W10289418		Panel, Front (red)		Appelez-nous	-
5	W10289422		Toe Panel (mercury Silver)				$ 121.31
5	8181643		Toe Panel (white)		Appelez-nous	-
5	W10289410		Toe Panel (red)				$ 74.31
6	W10283373		Trim Ring, Teardrop Assembly (white)		Appelez-nous	-
6	W10283374		Trim Ring, Teardrop Assembly (red)		Appelez-nous	-
6	W10283375		Trim Ring, Teardrop Assembly (mercury Silver)		Appelez-nous	-
7	8183208		Bracket, Trim Fixation (left)				$ 78.03
8	8183209		Bracket, Trim Fixation (right)		Appelez-nous	-
9	WP8183210		Clip, Trim   (Replaces: 8183210)				$ 6.95
10	WPW10250577		Harness, Wiring (lower Main) (includes Items 18, 19 & 23)   (Replaces: W10250577)				$ 278.29
11	8181636		Foot, Leveling				$ 9.57
12	W10289554A		Bolt, Shipping (upper)   (Replaces: W10283353)				$ 64.96
12	W10289554A		Bolt, Shipping (lower)   (Replaces: W10283354)				$ 64.96
13	WPW10003040		Brace, Transport   (Replaces: 8182661)				$ 96.77
14	W10242507		Panel, Rear				$ 120.83
15	8181635		Pan, Bottom				$ 66.73
16	W10289389		Brace, Rear				$ 38.99
17	WP488729		Screw   (Replaces: 8181756)			Immediately	$ 7.79
18	W10121609		Channel, Harness (side)				$ 10.73
19	W10121610		Channel, Harness (bottom)		Appelez-nous	-
20	WPW10249845		Switch, Analog Pressure Sensor   (Replaces: W10249845)			Immediately	$ 260.16
21	WPW10004260		Hose, Pressure Switch   (Replaces: 8181739)			Immediately	$ 7.00
22	WP8181763		Bracket, Spring   (Replaces: 8181763)				$ 79.99
23	WPW10085220		Microswitch   (Replaces: W10189678)				$ 33.25
24	WP3367052		Clamp, Hose   (Replaces: 8181752)				$ 8.32
25	W11757170		Connector, Drain Hose   (Replaces: 8181738)			Immediately	$ 6.39
26	WP8181737		Hose, Drain (outer)   (Replaces: 8181737)			Immediately	$ 62.50
27	8182635		Strain Relief   (Replaces: 8181690)				$ 16.72
28	WP8183009		Cord, Power   (Replaces: 8183009)				$ 147.66
29	8182702		Clip, Outer Hose Holder				$ 38.17
30	WPW10280024		Storage, Hose   (Replaces: 8181768)				$ 79.53
31	W11116978		Sleeve, Cord Support (2)   (Replaces: 8182699)				$ 22.80
32	8181632		Brace, Top		Appelez-nous	-
33	WP8540268		Cover, Transport   (Replaces: 8182700)				$ 6.95
34	8182701		Clip, Outer Hose Holder				$ 81.73
35	WP488729		Screw   (Replaces: 8181828)			Immediately	$ 7.79
36	WP89503		Hose, Water Inlet (blue Coupler)   (Replaces: 8182795)			Immediately	$ 24.09
36	WP89503		Hose, Water Inlet (red Coupler)   (Replaces: 8182792)			Immediately	$ 24.09
37	WPW10367632		Filter, Interference   (Replaces: 8181922)				$ 122.22
38	W10157885		Screw, 4.2 X 14				$ 6.06
39	W10138249		Spacer, Top (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
