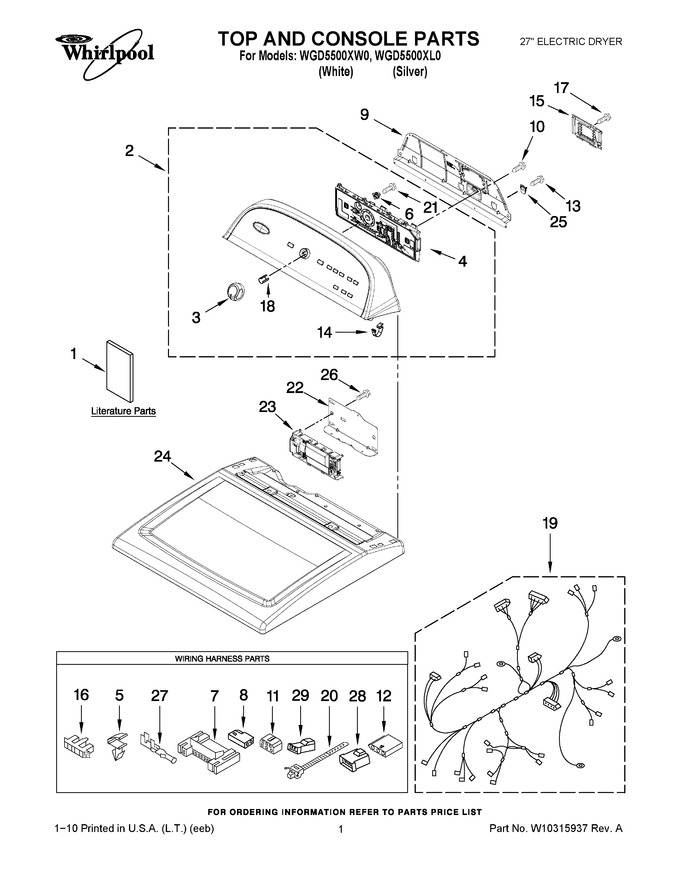

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8576353 Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10096984 | Installation Instructions |
|
- | |||||
| 1 | W10097012 | Guide, Use & Care |
|
- | |||||
| 1 | W10096965 | Tech Sheet |
|
- | |||||
| 2 | WPW10269607 | Panel, Console (silver) (Replaces: W10269608) |
|
$ 527.27 | |||||
| 2 | WPW10269607 | Panel, Console (white) (Replaces: W10269607) |
|
$ 527.27 | |||||
| 3 | WPW10251392 | Knob Assembly (Replaces: W10251392) |
|
$ 59.55 | |||||
| 4 | WPW10269623 | User Interface (Replaces: W10269623) |
|
$ 313.89 | |||||
| 5 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 6 | W10274524 | Tensioner |
|
- | |||||
| 7 | 3395683 | Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 8 | 717252 | Receptacle, 2 Way |
|
- | |||||
| 9 | W10096969 | Panel, Rear Console |
|
$ 197.80 | |||||
| 10 | WP90767 | Screw, 8-16 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 11 | 3347243 | Connector 6-circuit |
|
- | |||||
| 12 | 3936144 | Connector |
|
$ 21.22 | |||||
| 13 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 14 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 15 | W10297565 | Cover, Terminal Block |
|
- | |||||
| 16 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 17 | WP90767 | Screw, 8-18 X 1/2 (Replaces: 3390814) |
|
Immediately | $ 8.25 | ||||
| 18 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 19 | W10253982 | Harness, Wiring |
|
- | |||||
| 20 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 33.43 | |||||
| 21 | W10853898 | Screw, 8-16 X 1/2 (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 22 | W10271580 | Bracket, Motor Control |
|
- | |||||
| 23 | WPW10317636 | Control, Electronic (Replaces: W10331077) |
|
Immediately | $ 379.85 | ||||
| 24 | W10268729 | Top (silver) |
|
$ 97.74 | |||||
| 24 | W11641121 | Top (white) (Replaces: W10260246) |
|
Immediately | $ 215.10 | ||||
| 25 | W10279552 | Plug-upper Rear Panel |
|
- | |||||
| 26 | WP33001882 | Screw (Replaces: 337686) |
|
$ 83.71 | |||||
| 27 | WP94614 | Terminal (Replaces: 94614) |
|
$ 8.05 | |||||
| 28 | WP3403498 | Connector, 3-position (gas Valve) (Replaces: 3403498) |
|
$ 7.30 | |||||
| 29 | WP3403499 | Connector, 2-position Gas Valve (Replaces: 3403499) |
|
$ 6.02 |
