SELECT A DIAGRAM

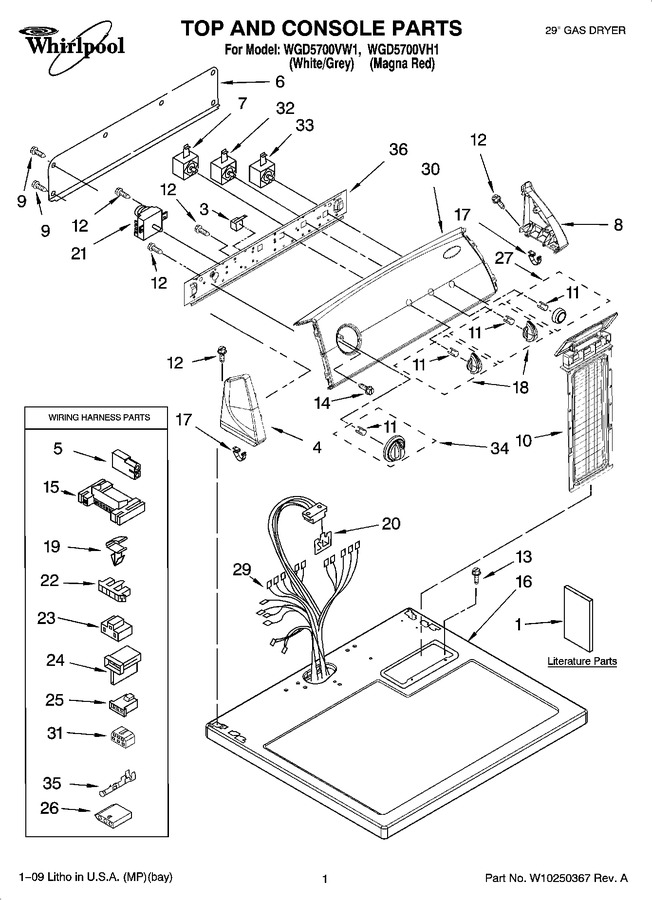

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10185993		Wiring Diagram		Appelez-nous	-
1	W10042950		Sheet, Cycle Feature		Appelez-nous	-
1	W10150630		Instructions, Installation		Appelez-nous	-
1	W10150610		Use & Care Guide		Appelez-nous	-
3	WP3398093		Buzzer, Mini   (Replaces: 3398093)				$ 153.67
4	W10205959		Cap, End (l.h.) (magna Red)		Appelez-nous	-
4	WP8565957		Cap, End (l.h.) (white)   (Replaces: 8566035)				$ 64.76
5	717252		Plug, 2-way Terminal		Appelez-nous	-
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
7	W11106324		Switch, Temperature   (Replaces: 3405155)				$ 235.13
8	WP8565954		Cap, End (r.h.) (white)   (Replaces: 8566032)				$ 65.84
8	W10205953		Cap, End (r.h.) (magna Red)				$ 43.09
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.55
10	W11778253		Screen, Lint (white)   (Replaces: 8557857)			Immediately	$ 54.63
10	W10205825		Screen, Lint (magna Red)				$ 54.16
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
15	3395683		Connector (motor)			Immediately	$ 54.45
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
16	W10214597		Top (magna Red)		Appelez-nous	-
17	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
18	W10034380		Knob, Control (2)				$ 25.06
19	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
20	WPW10476828		C-version Control   (Replaces: 8558178)			Immediately	$ 329.93
21	W10185991		Timer Assembly (60 Hz.)		Appelez-nous	-
22	3397269		Connector, Timer				$ 25.55
23	3401144		Connector, (pts Relay)				$ 12.81
24	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
25	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
26	3936144		Connector				$ 21.22
27	W10034770		Knob, Push-to-start		Appelez-nous	-
29	W10186081		Harness, Wiring		Appelez-nous	-
30	W10167873		Panel, Control				$ 186.35
31	3347243		Connector 6-circuit		Appelez-nous	-
32	3405154		Switch, Wrinkle Shield				$ 160.52
33	WP3398094		Switch, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
34	W10034750		Timer Knob Assembly				$ 28.27
35	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
36	8566052		Bracket, Control		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
