SELECT A DIAGRAM

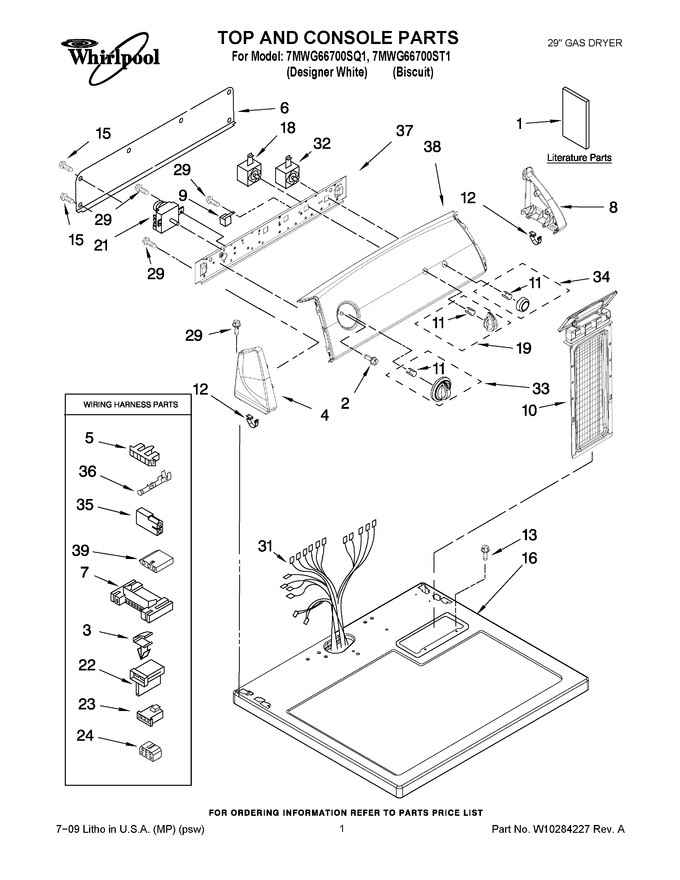

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8565897		Use & Care Guide		Appelez-nous	-
1	W10185985		Wiring Diagram		Appelez-nous	-
1	8564241		Installation Instructions		Appelez-nous	-
1	8579961		Sheet, Cycle Feature		Appelez-nous	-
2	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.22
3	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
4	8566036		Cap, End (l.h.) (biscuit)		Appelez-nous	-
4	WP8565957		Cap, End (l.h.) (white)   (Replaces: 8566035)				$ 61.68
5	3397269		Connector, Timer				$ 25.55
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
7	3395683		Housing, Connector (motor)			Immediately	$ 51.86
8	8566033		Cap, End (r.h.) (biscuit)		Appelez-nous	-
8	WP8565954		Cap, End (r.h.) (white)   (Replaces: 8566032)				$ 62.70
9	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
10	W11778253		Lint Screen (white)   (Replaces: 8557857)			Immediately	$ 52.03
10	8557858		Lint Screen (biscuit)		Appelez-nous	-
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.81
12	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
15	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 332.62
16	8563660		Top (biscuit)		Appelez-nous	-
18	WP3399639		Switch, End Of Cycle   (Replaces: 3399639)				$ 124.91
19	8565944		Knob, Control (white)				$ 25.10
19	8565947		Knob, Control (biscuit)				$ 23.66
21	WPW10185981		Timer Assembly (60 Hz.)   (Replaces: W10185981)				$ 329.61
22	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
23	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
24	3347243		Connector 6-circuit		Appelez-nous	-
29	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.82
31	W10186122		Harness, Wiring		Appelez-nous	-
32	WP3398095		Switch, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
33	8566061		Timer Knob Assembly (white)				$ 26.93
33	8566064		Timer Knob Assembly (biscuit)		Appelez-nous	-
34	8566076		Knob, Push-to-start (biscuit)		Appelez-nous	-
34	WP8566073		Knob, Push-to-start (white)   (Replaces: 8566073)				$ 55.24
35	717252		Receptacle, 2 Way		Appelez-nous	-
36	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
37	8566052		Bracket, Control		Appelez-nous	-
38	8543037		Panel, Control (white)		Appelez-nous	-
38	8543038		Panel, Control (biscuit)		Appelez-nous	-
39	3936144		Connector				$ 20.21
