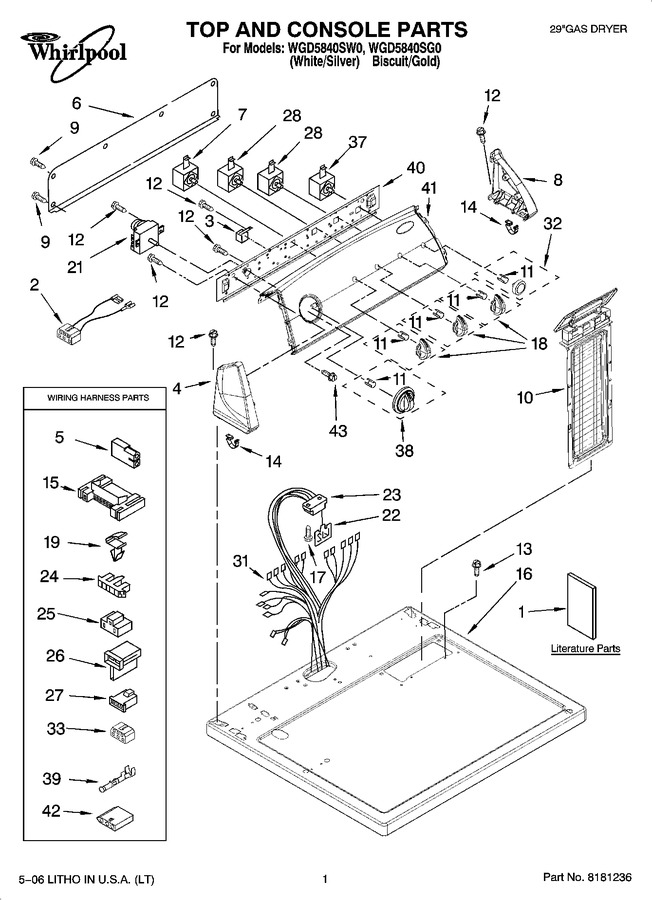

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8318272 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8578889 | Wiring Diagram |
|
- | |||||
| 1 | 677818 | Manual, Do-it- Yourself Repair (dryer) |
|
- | |||||
| 1 | 8562582 | Instructions, Installation |
|
- | |||||
| 1 | W10042950 | Sheet, Cycle Feature |
|
- | |||||
| 1 | 8578183 | Use & Care Guide |
|
- | |||||
| 2 | 3401695 | Wire, Jumper (buzzer On/off) |
|
- | |||||
| 3 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 4 | 8566036 | Cap, End (l.h.) (biscuit) |
|
- | |||||
| 4 | WP8565957 | Cap, End (l.h.) (white) (Replaces: 8566035) |
|
$ 64.76 | |||||
| 5 | 717252 | Plug, 2-way Terminal |
|
- | |||||
| 6 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 135.31 | |||||
| 7 | W11106324 | Switch, Temperature (Replaces: 3405155) |
|
$ 235.13 | |||||
| 8 | WP8565954 | Cap, End (r.h.) (white) (Replaces: 8566032) |
|
$ 65.84 | |||||
| 8 | 8566033 | Cap, End (r.h.) (biscuit) |
|
- | |||||
| 9 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 10 | 8557858 | Screen, Lint (biscuit) |
|
- | |||||
| 10 | W11778253 | Screen, Lint (white) (Replaces: 8557857) |
|
Immediately | $ 54.63 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 12 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.59 | ||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 16 | 8563660 | Top (biscuit) |
|
- | |||||
| 16 | WP8563663 | Top (white) (Replaces: 8559800) |
|
Immediately | $ 349.25 | ||||
| 17 | W11693756 | Screw, 8-18 X 1/2 (Replaces: 359625) |
|
Immediately | $ 14.76 | ||||
| 18 | W10034390 | Knob, Control (3) (biscuit) |
|
$ 34.42 | |||||
| 18 | W10034380 | Knob, Control (3) (silver) |
|
$ 25.06 | |||||
| 19 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 21 | WP8566184 | Timer Assembly (60 Hz.) (Replaces: 8566184) |
|
Immediately | $ 292.32 | ||||
| 22 | WPW10476828 | Control, Electronic (Replaces: 8558178) |
|
Immediately | $ 329.93 | ||||
| 23 | 3391885 | Connector, Edge |
|
$ 90.72 | |||||
| 24 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 25 | 3401144 | Connector, (pts Relay) |
|
$ 12.81 | |||||
| 26 | WP3403499 | Connector, 2-position Gas Valve (Replaces: 3403499) |
|
$ 6.02 | |||||
| 27 | WP3403498 | Connector, 3-position (gas Valve) (Replaces: 3403498) |
|
$ 7.30 | |||||
| 28 | WP3405156 | Switch, Rotary (Replaces: 3405156) |
|
$ 152.79 | |||||
| 31 | 8576542 | Harness, Wiring |
|
- | |||||
| 32 | W10034770 | Knob, Push-to-start (silver) |
|
- | |||||
| 32 | W10034780 | Knob, Push-to-start (biscuit) |
|
- | |||||
| 33 | 3347243 | Connector 6-circuit |
|
- | |||||
| 37 | WP3398094 | Switch, Push-to-start (Replaces: 3398094) |
|
Immediately | $ 129.39 | ||||
| 38 | W10034750 | Timer Knob Assembly (silver) |
|
$ 28.27 | |||||
| 38 | W10034760 | Timer Knob Assembly (biscuit) |
|
- | |||||
| 39 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 8.05 | |||||
| 40 | 8566052 | Bracket, Control |
|
- | |||||
| 41 | 8578866 | Panel, Control (includes Illus. 35) (silver) |
|
- | |||||
| 41 | 8578867 | Panel, Control (includes Illus. 35) (gold) |
|
- | |||||
| 42 | 3936144 | Connector |
|
$ 21.22 | |||||
| 43 | 3400859 | Screw, Grounding (Replaces: 8533951) |
|
$ 13.88 |
