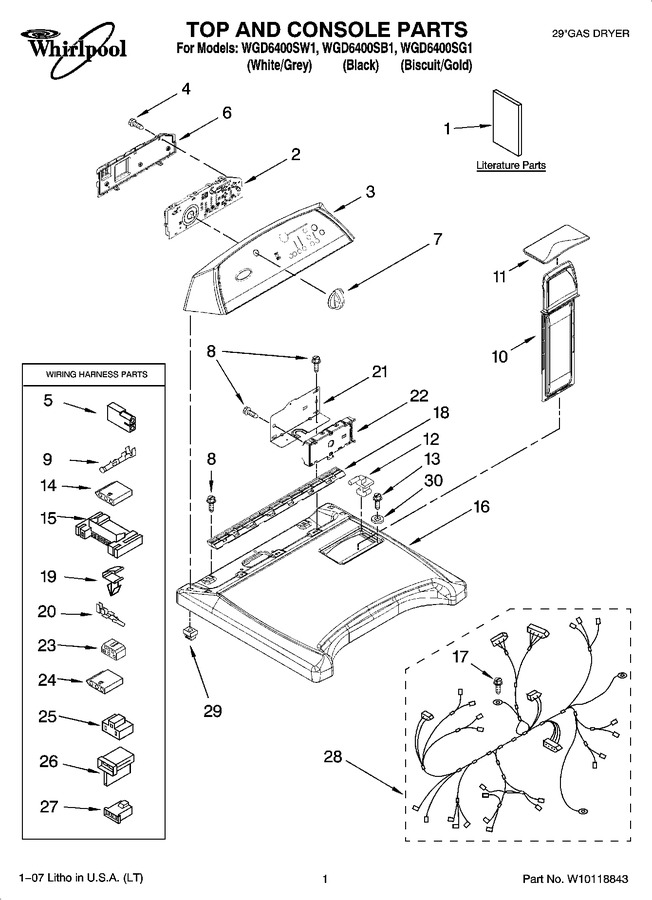

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8557890 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 677818 | Manual, Do-it- Yourself Repair (dryer) |
|
- | |||||
| 1 | W10054090 | Guide, Quick Start |
|
- | |||||
| 1 | W10054080 | Use & Care Guide |
|
- | |||||
| 1 | W10054160 | Wiring Diagram |
|
- | |||||
| 2 | 8563974 | Assembly, User Interface |
|
$ 275.47 | |||||
| 3 | W10110328 | Panel, Console (biscuit) |
|
$ 245.82 | |||||
| 3 | W10110325 | Panel, Console (white) |
|
$ 269.65 | |||||
| 3 | W10110330 | Panel, Console (black) |
|
$ 0.01 | |||||
| 4 | WP4449745 | Screw, 6-19 X 3/64 (Replaces: W10003770) |
|
$ 7.98 | |||||
| 5 | 717252 | Plug, 2-way Terminal |
|
- | |||||
| 6 | 8564265 | Cover, Rear (ui Assembly) |
|
$ 142.60 | |||||
| 7 | 8574958 | Knob, Assembly (biscuit) |
|
- | |||||
| 7 | 8574957 | Knob, Assembly (white) |
|
$ 26.10 | |||||
| 7 | 8574959 | Knob, Assembly (black) |
|
- | |||||
| 8 | WP33001882 | Screw, 8-18 X 1/2 (Replaces: 337686) |
|
$ 83.71 | |||||
| 9 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 8.05 | |||||
| 10 | WP8572270 | Assembly, Lint Screen (Replaces: 8572270) |
|
Immediately | $ 104.35 | ||||
| 11 | W10044320 | Cover, Lint Screen (white) |
|
- | |||||
| 11 | W10044330 | Cover, Lint Screen (biscuit) |
|
- | |||||
| 11 | W10044360 | Cover, Lint Screen (black) |
|
- | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: W10044470) |
|
$ 8.11 | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: W10044480) |
|
$ 8.11 | |||||
| 13 | WP3196557 | Screw, 8-18 X 5/8 (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 14 | 3936144 | Connector |
|
$ 21.22 | |||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 16 | 8565027 | Top (biscuit) |
|
- | |||||
| 16 | 8565028 | Top (black) |
|
- | |||||
| 16 | 8565025 | Top (white) |
|
- | |||||
| 17 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 18 | 8558863 | Bracket, Console |
|
$ 33.78 | |||||
| 19 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 20 | 94613 | Terminal |
|
- | |||||
| 21 | 8563853 | Bracket, Machine Controller |
|
- | |||||
| 22 | W10111608 | Control, Electronic |
|
- | |||||
| 23 | 3347243 | Connector 6-circuit |
|
- | |||||
| 24 | 353424 | Connector, Sensor |
|
$ 18.95 | |||||
| 25 | 3401144 | Connector, (pts Relay) |
|
$ 12.81 | |||||
| 26 | WP3403499 | Connector, 2-position Gas Valve (Replaces: 3403499) |
|
$ 6.02 | |||||
| 27 | WP3403498 | Connector, 3-position (gas Valve) (Replaces: 3403498) |
|
$ 7.30 | |||||
| 28 | W10111432 | Harness, Wiring |
|
- | |||||
| 29 | 8558853 | Screw, Grommet (2) |
|
- | |||||
| 30 | 237446 | Washer (top/chute) |
|
- |
