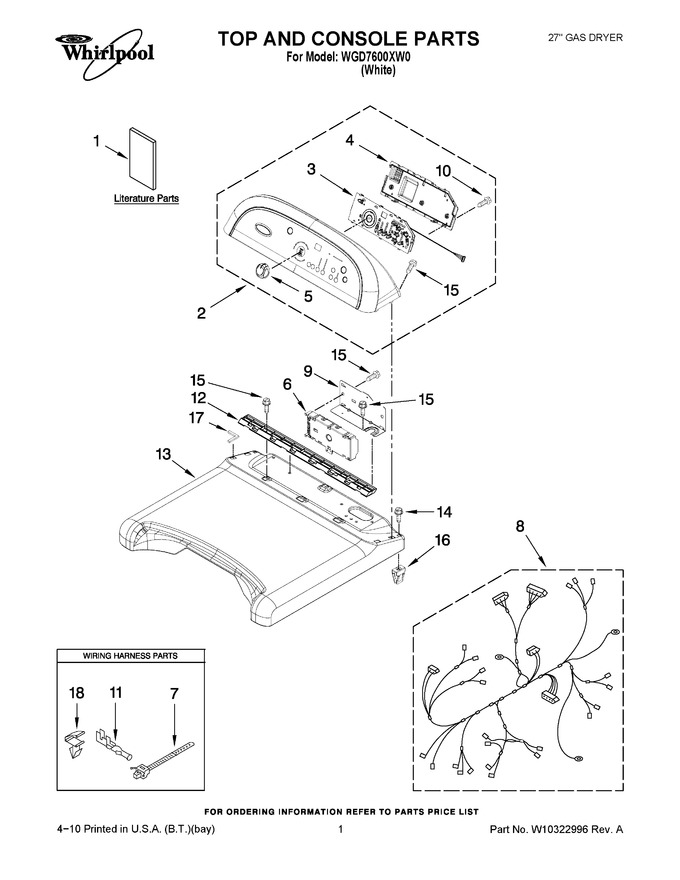

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8557891 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10261614		Installation Instruction (english)		Appelez-nous	-
1	W10267631		Installation Instruction (spanish)		Appelez-nous	-
1	W10301481		Tech, Sheet		Appelez-nous	-
1	W10305227		Guide, Use & Care (english)		Appelez-nous	-
1	W10315012		Guide, Use & Care (spanish)		Appelez-nous	-
2	W10298646		Console Assembly				$ 328.53
3	W10298626		Assembly, User Interface				$ 252.17
4	8564265		Cover, Ui-assembly				$ 142.60
5	WPW10211335		Knob, Assembly   (Replaces: W10211335)				$ 59.76
6	W10294316		Control Electronic				$ 338.17
7	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 33.43
8	W10319800		Harness, Wiring Main		Appelez-nous	-
9	W10211337		Bracket, Machinecontroller		Appelez-nous	-
10	WP4449745		Screw   (Replaces: W10003770)				$ 7.98
11	WP94614		Terminal   (Replaces: 94614)				$ 8.05
12	8558863		Bracket, Console				$ 33.78
13	W10211339		Top		Appelez-nous	-
14	W10131402		Screw, 8-18 X 1.370		Appelez-nous	-
15	WP33001882		Screw, 8-18 X 1/2   (Replaces: 337686)				$ 83.71
16	W10112673		Clip, Console				$ 9.75
17	W10185554		Foam, Top		Appelez-nous	-
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18

    View Diagram in Separate Window       Print Part List
